Work Support

WORK SUPPORT

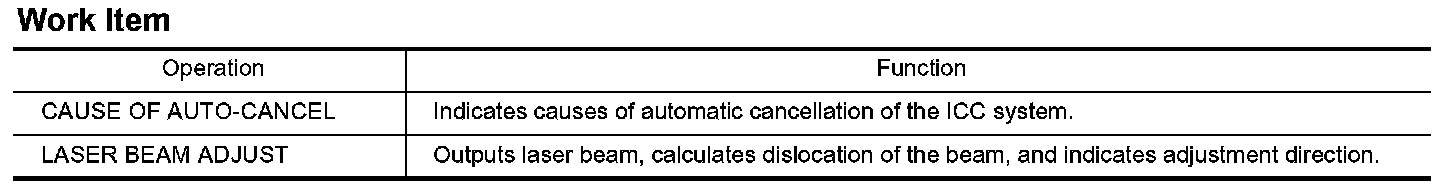

Work Item

Cause of Auto-Cancel

1. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.

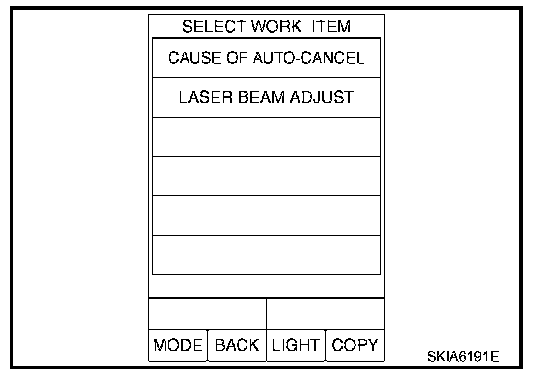

2. Touch "CAUSE OF AUTO-CANCEL" on "SELECT WORK ITEM" screen.
3. Cause of automatic cancellation screen will be shown.
4. The last five causes of automatic cancellation of ICC system will be displayed.

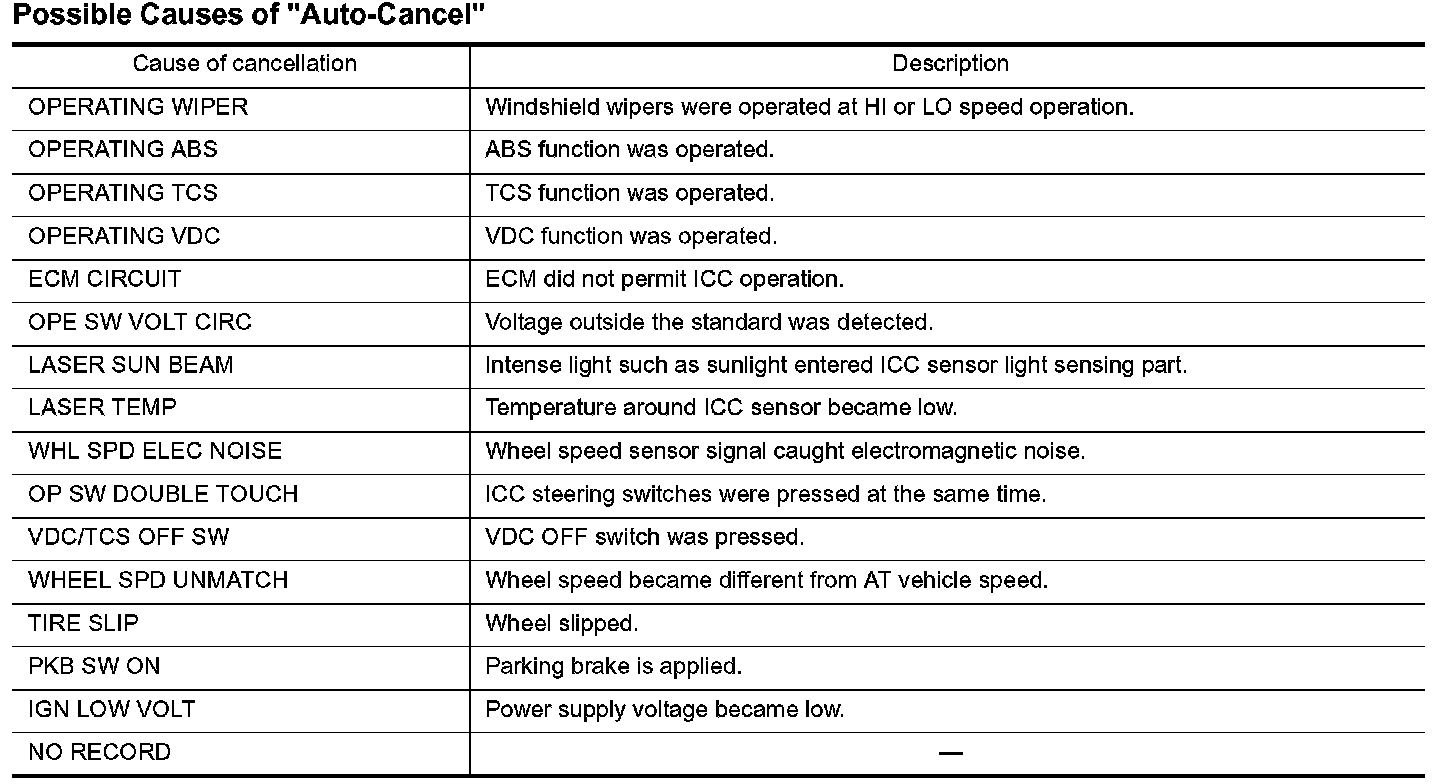

Possible Causes of "Auto-Cancel"

Laser Beam Adjust
For details, refer to "LASER BEAM AIMING ADJUSTMENT". Adjustments
