HEATER CORE

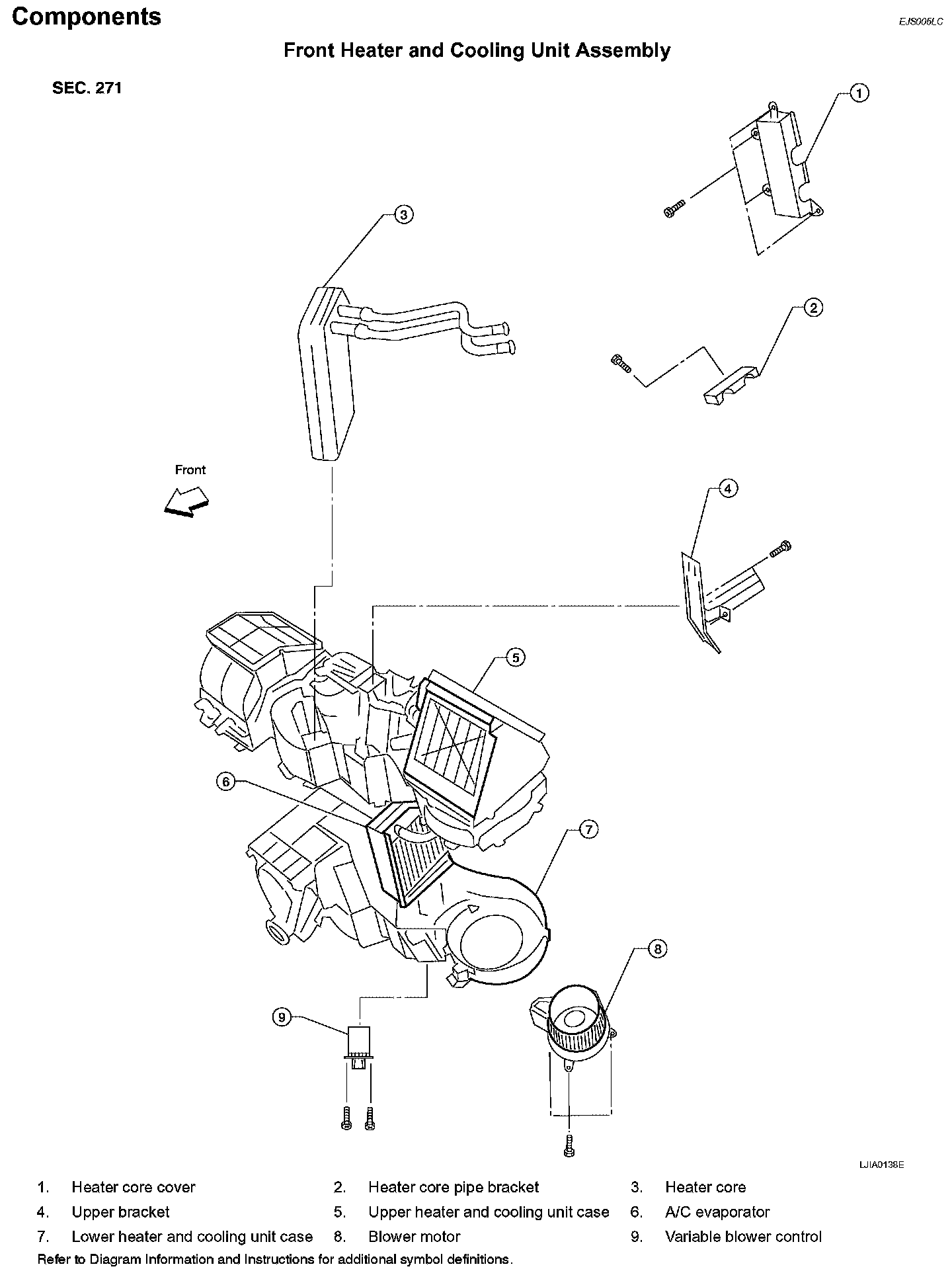

Exploded View ATC-160:

Components

Removal and Installation

FRONT HEATER CORE

Removal
1. Remove the front heater and cooling unit assembly. Refer to "FRONT HEATER AND COOLING UNIT ASSEMBLY". Front
2. Remove the four screws and remove the upper bracket.
3. Remove the four screws and remove the heater core cover.
4. Remove the heater core pipe bracket.




5. Remove the heater core.

NOTE: If the in-cabin microfilters are contaminated from coolant leaking from the heater core, replace the in-cabin microfilters with new ones before installing the new heater core.

Installation
Installation is in the reverse order of removal.

NOTE: Special procedure required to refill cooling system Changing Engine Coolant
