Scan Tool Testing and Procedures

TROUBLE DIAGNOSIS

CAN Diagnostic Support Monitor
Use "CAN DIAG SUPPORT MNTR" for detecting the root cause.

MONITOR ITEM LIST (CONSULT-II)

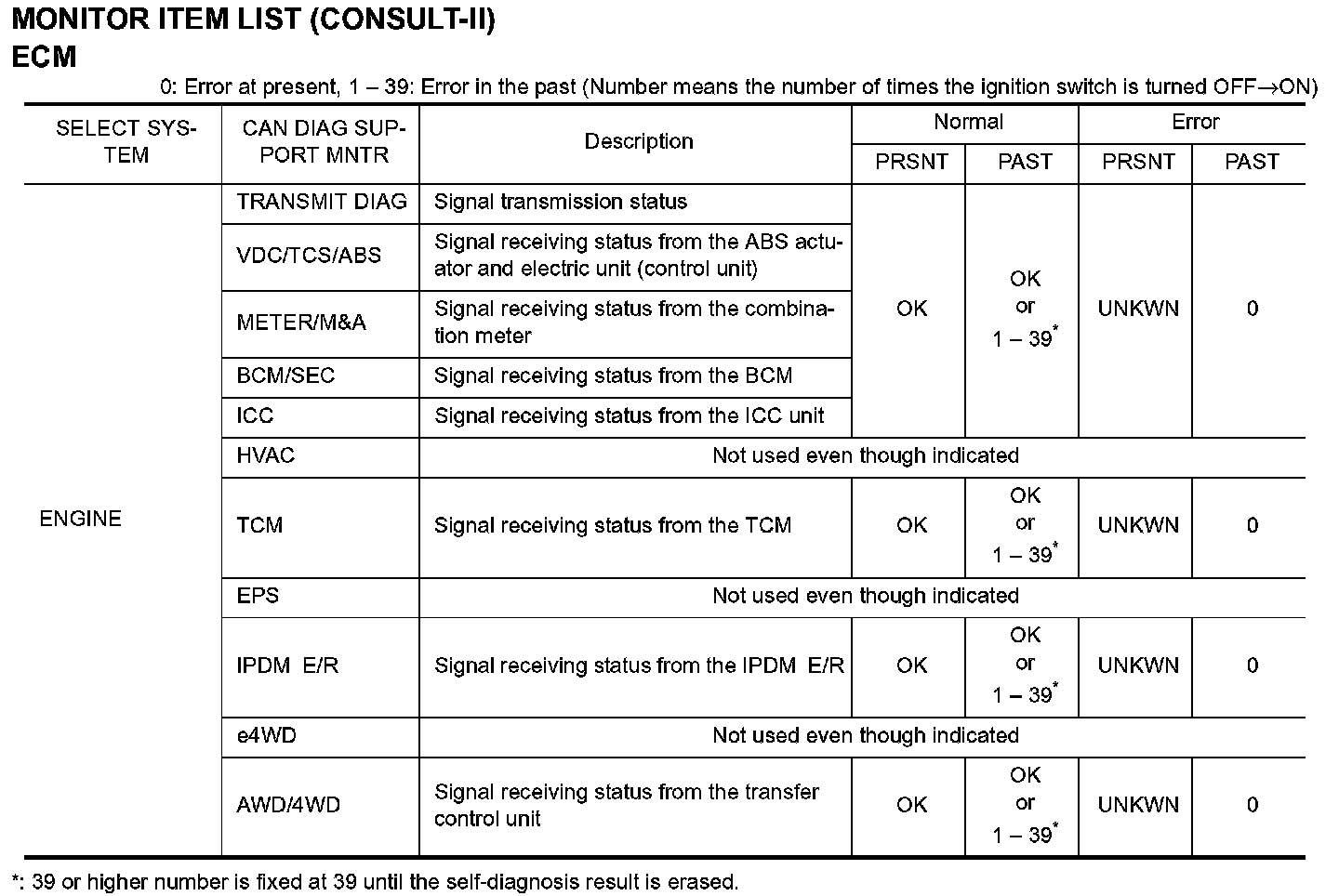

ECM




TCM

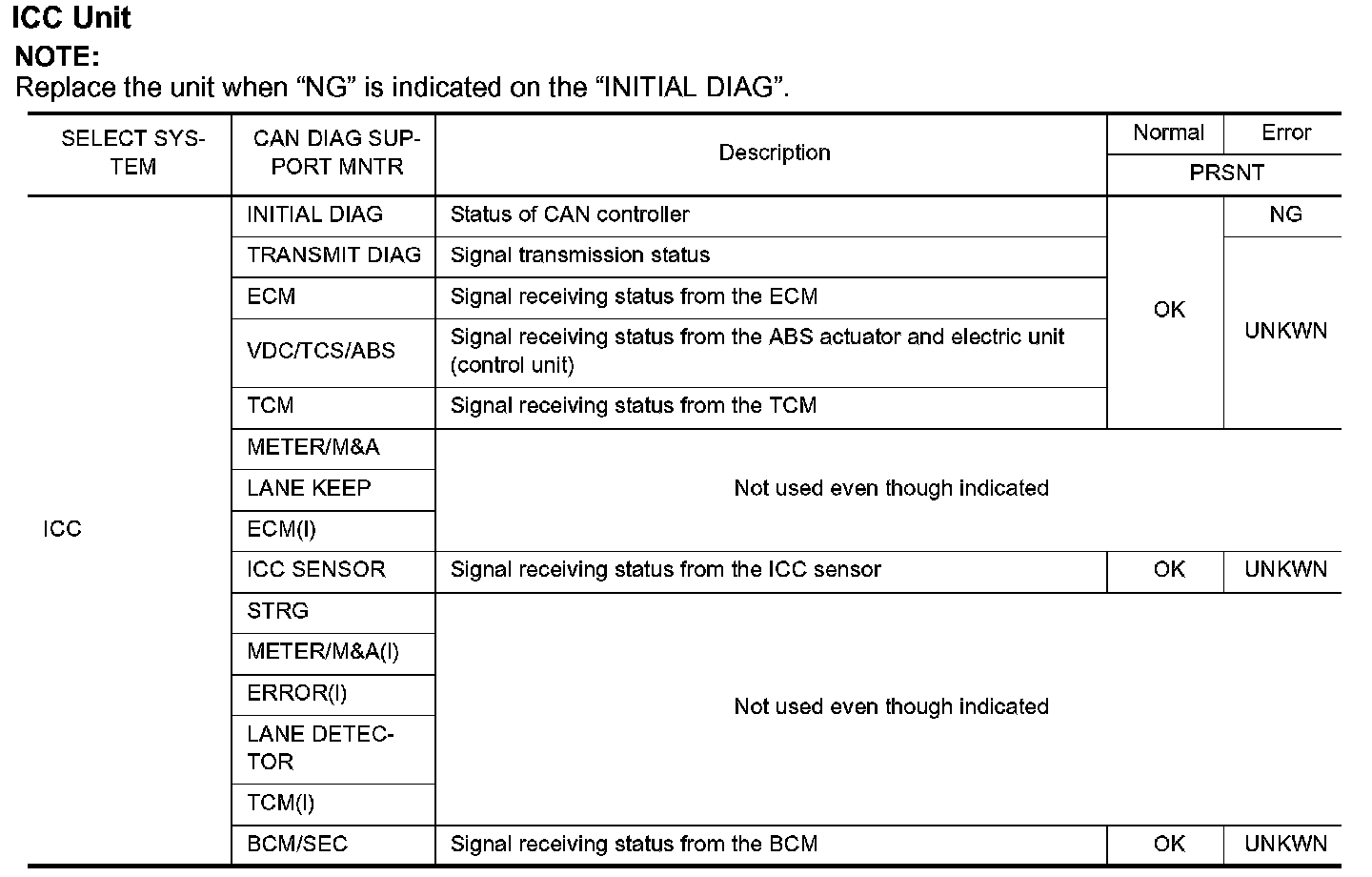

ICC Unit

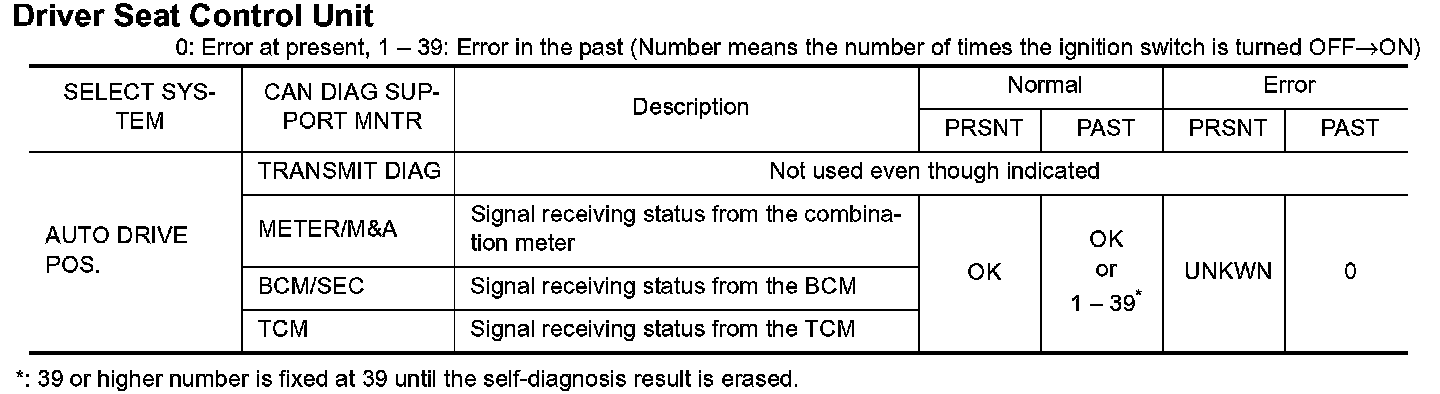

Driver Seat Control Unit

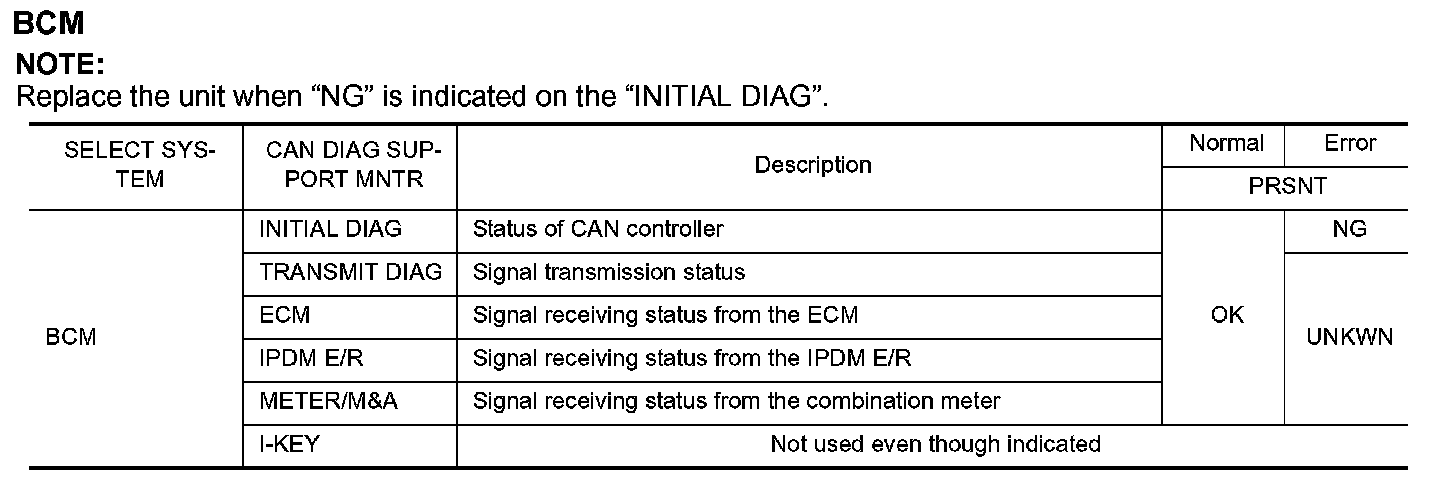

BCM

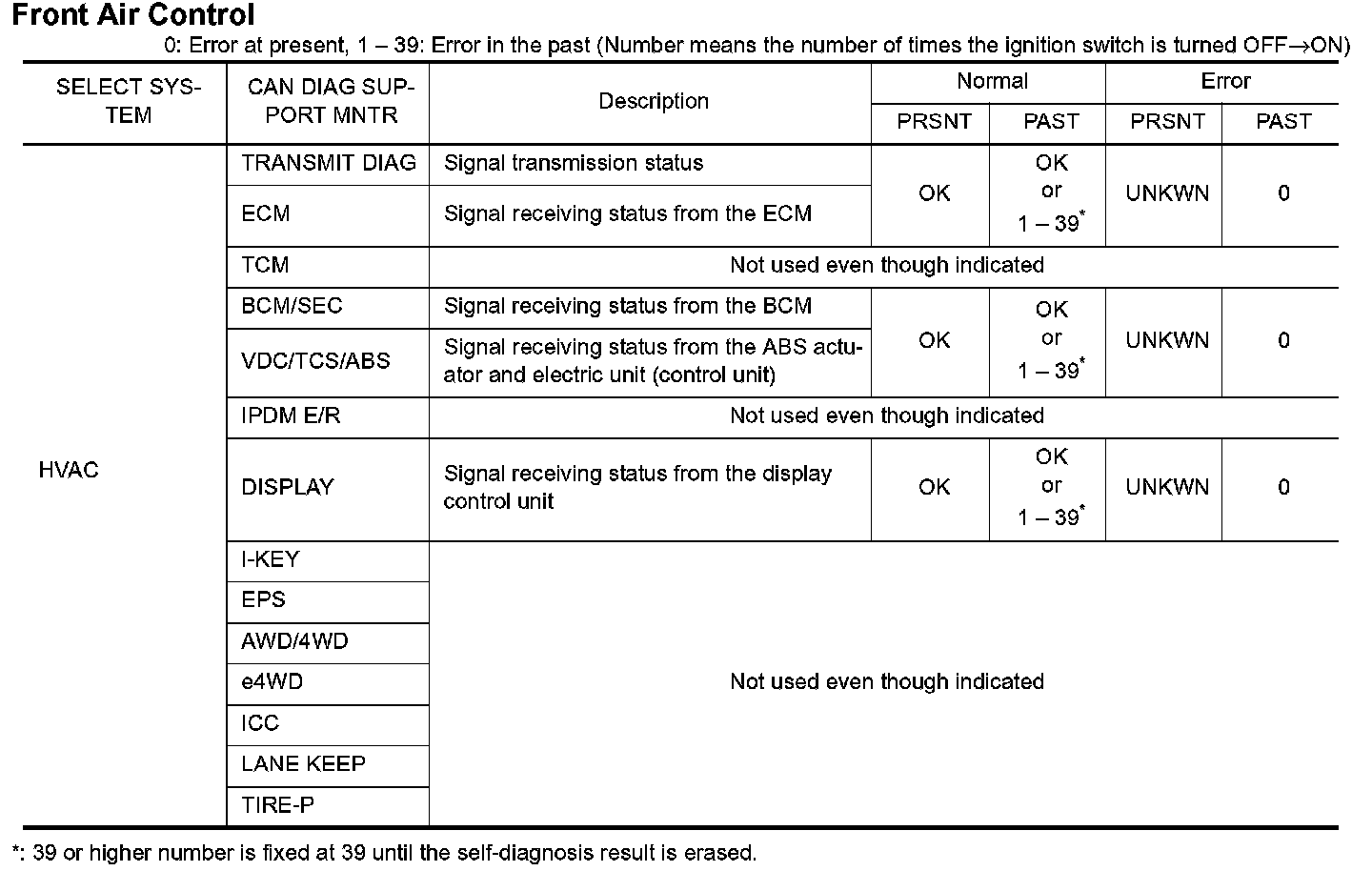

Front Air Control

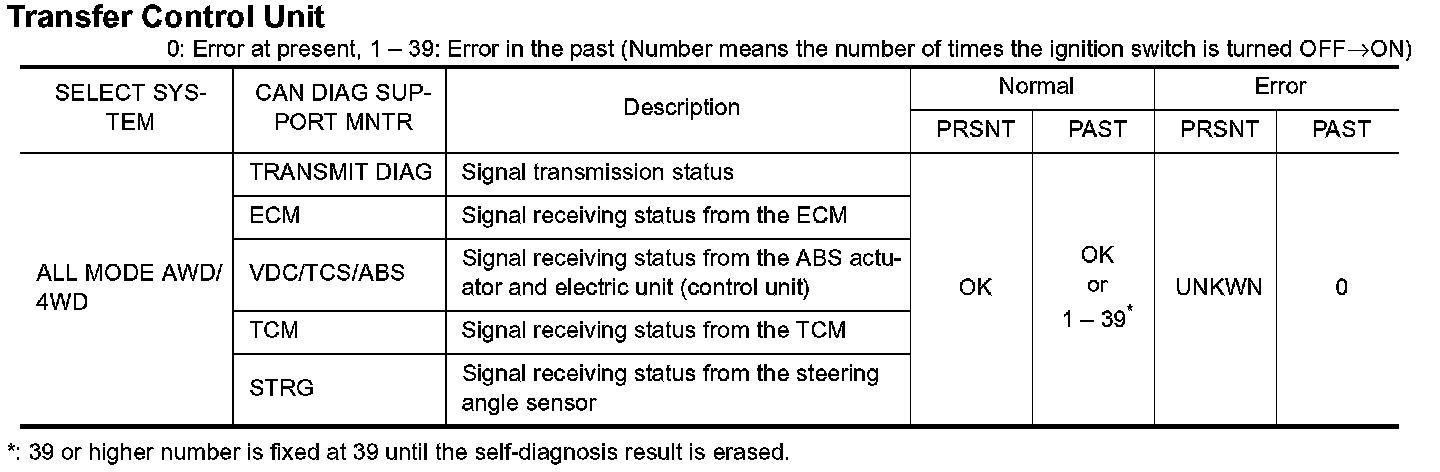

Transfer Control Unit

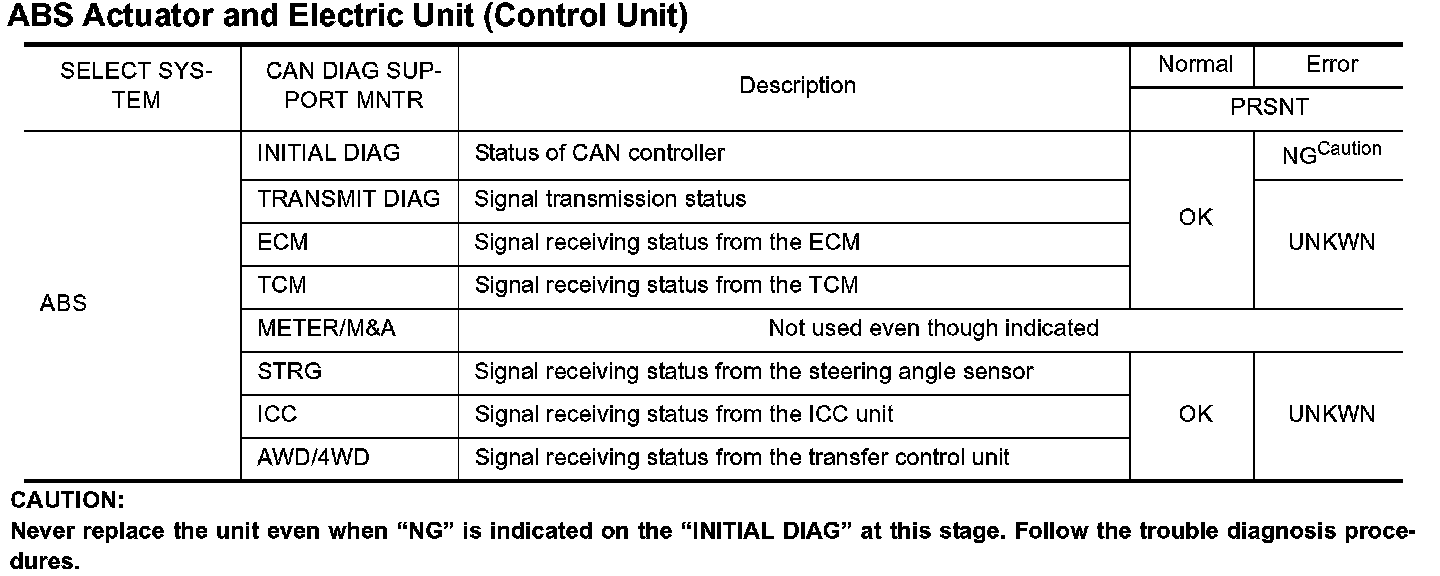

ABS Actuator and Electric Unit (Control Unit)

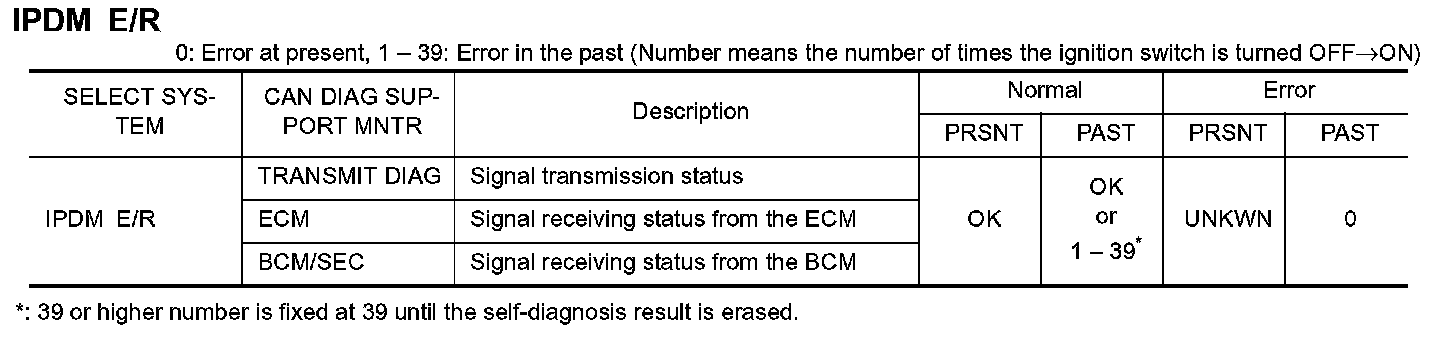

IPDM E/R




MONITOR ITEM LIST (ON-BOARD DIAGNOSIS)

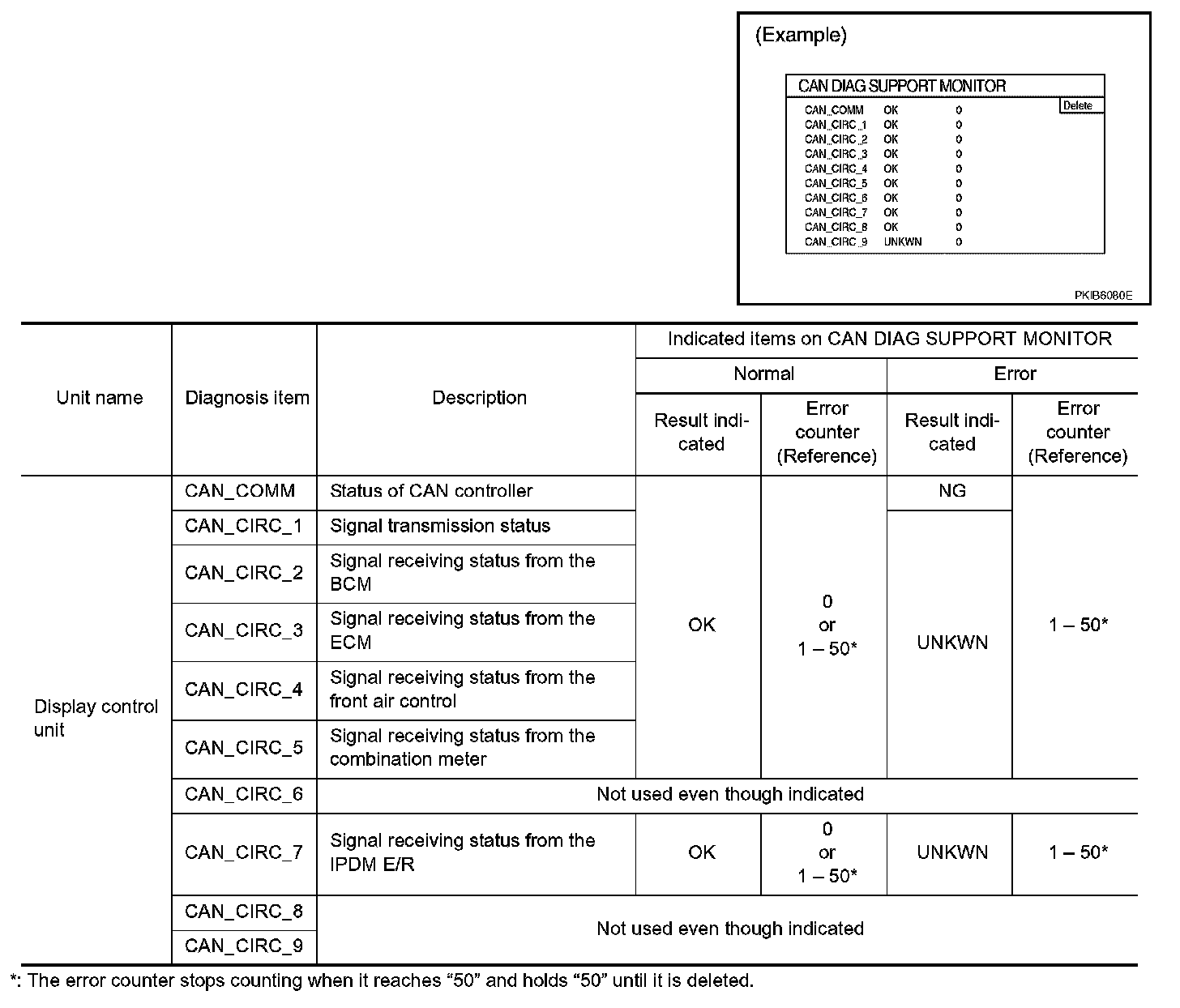

Display Control Unit

NOTE: CAN diagnostic support monitor of the display control unit is indicated on the vehicle display. Refer to AV-135, "CAN Communication Line Check". CAN Communication Line Check
