TCM Function
TCM Function The function of the TCM is to:
^
Receive input signals sent from various switches and sensors.
^
Determine required line pressure, shifting point, lock-up operation, and engine brake operation.
^
Send required output signals to the respective solenoids.

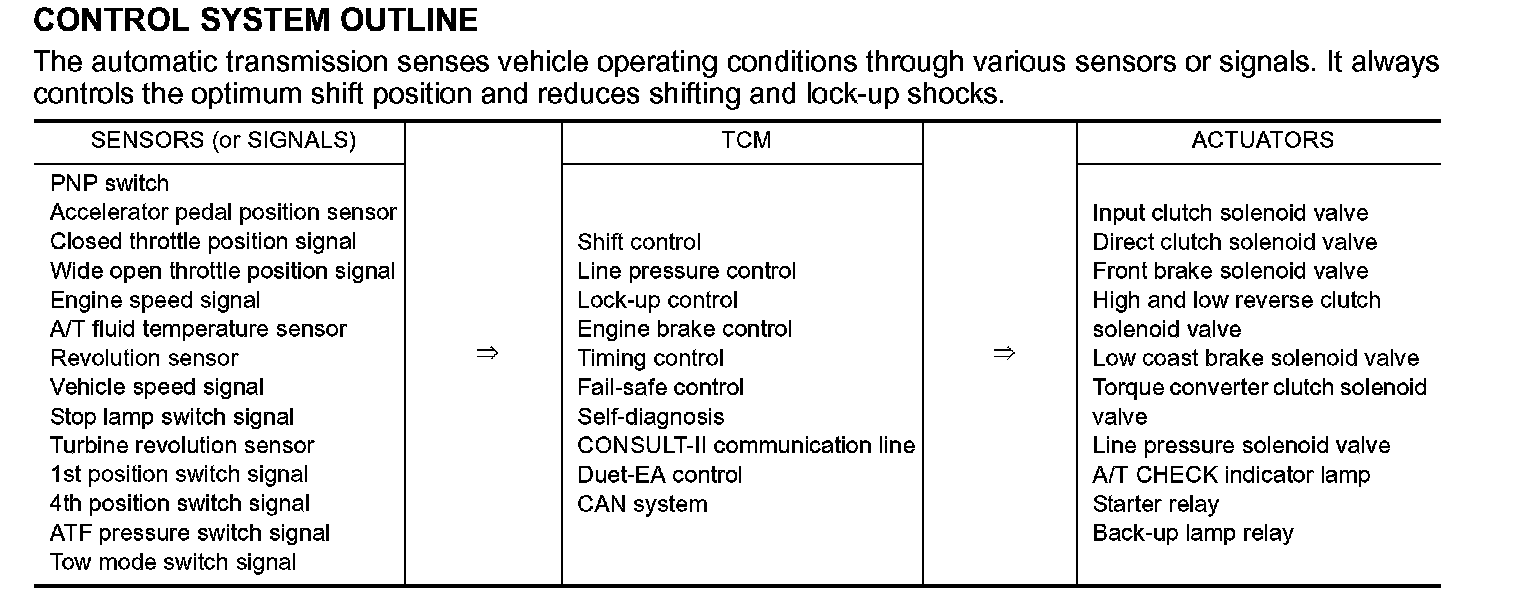

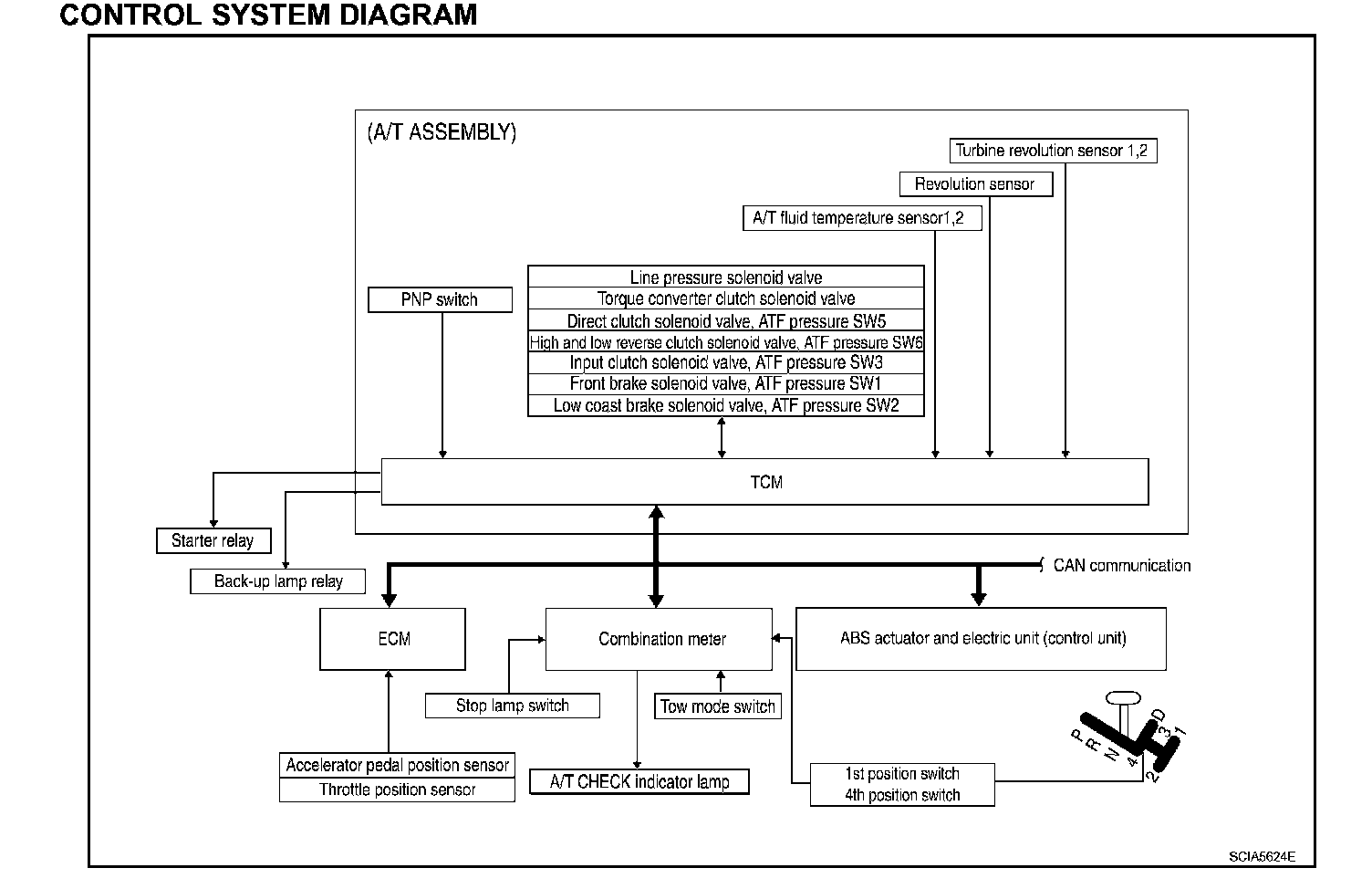

CONTROL SYSTEM OUTLINECONTROL SYSTEM DIAGRAM
