Service Limits & General Specifications

CONNECTING ROD SIDE CLEARANCE

^ Measure side clearance between the connecting rod and crankshaft arm using suitable tool.
Standard: 0.20 - 0.40 mm (0.0079 - 0.0157 in)
Limit: 0.40 mm (0.0157 in)
^ If measured value exceeds the repair limit, replace the connecting rod bearings, and measure again. If it still exceeds the repair limit, replace the crankshaft also.

CONNECTING ROD BEND AND TORSION

^ Check connecting rod alignment using suitable tool.
Limit:
Bend: 0.15 mm (0.0059 in) per 100 mm (3.94 in) length
Torsion: 0.30 mm (0.0118 in) per 100 mm (3.94 in) length

^ If measurement exceeds the limit, replace connecting rod assembly.

Part 1:

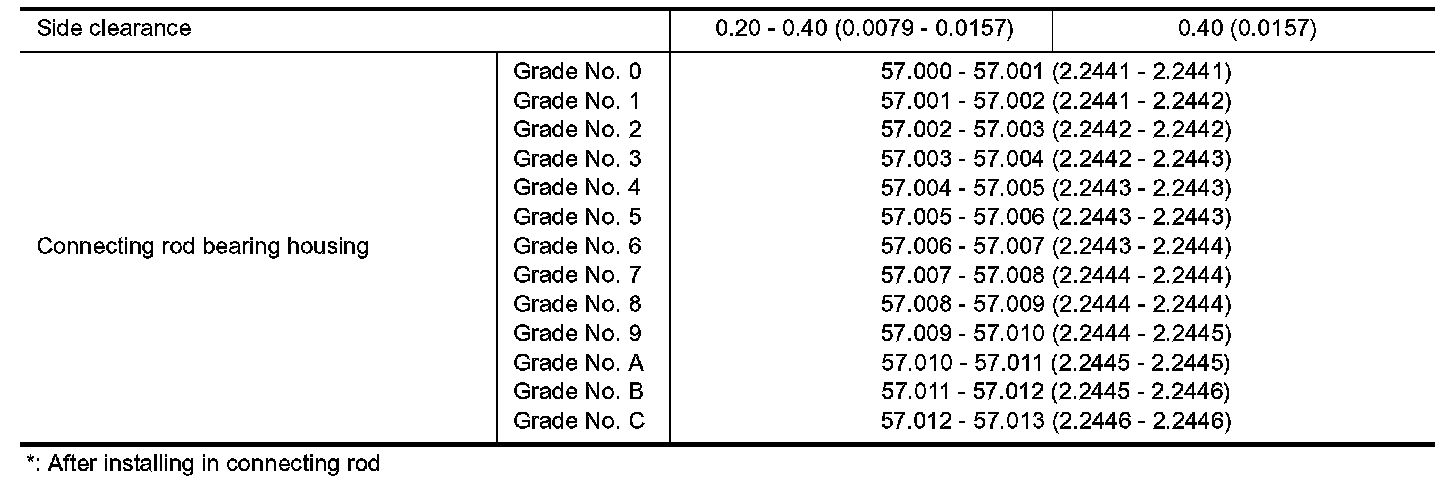

Part 2:

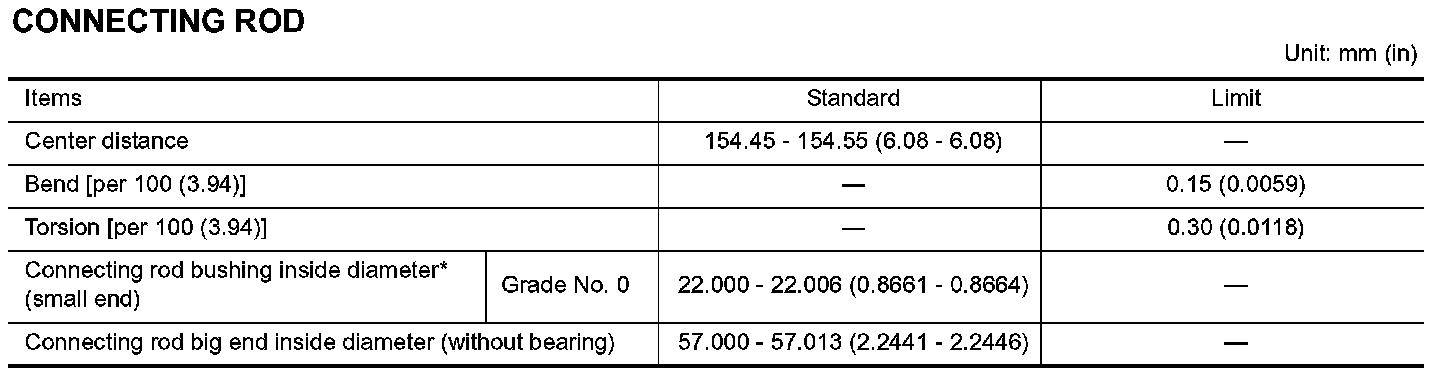

CONNECTING ROD
