Oil Pan, Engine

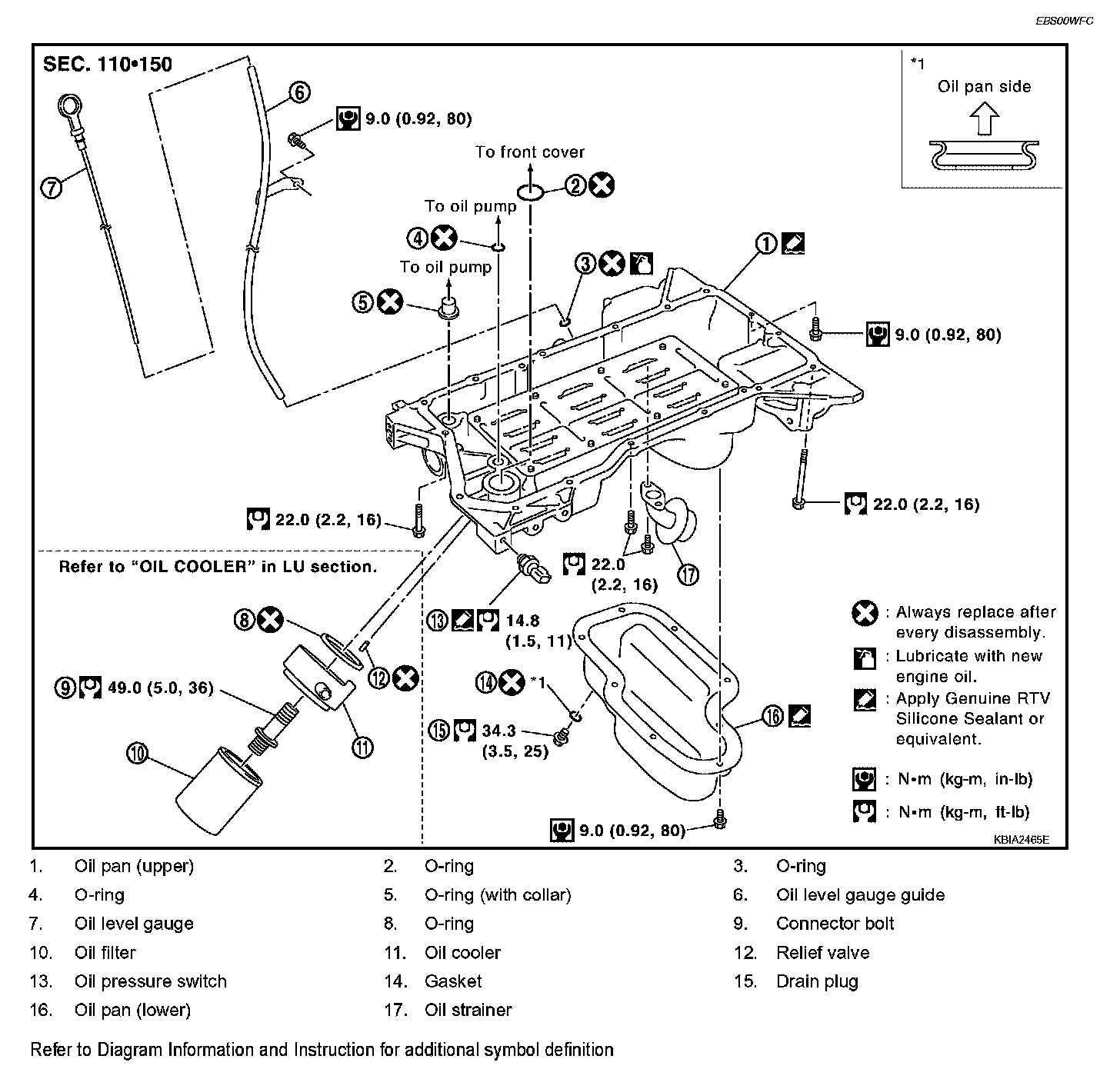

Exploded View EM-24:
Oil Pan Upper
Tighten the bolts in numerical order as shown.
M6 x 30 mm (1.18 in)
No. 15, 16
M8 x 25 mm (0.98 in)
No. 1, 3, 5, 7, 11, 13
M8 x 45 mm (1.77 in)
No. 2, 4, 6, 8, 10, 14
M8 x 123 mm (4.84 in)
No. 9, 12
Lower
Tighten the
oil pan (lower) bolts in numerical order as shown.
