Timing Chain Tensioner

Crankshaft Pulley
Tighten the crankshaft pulley bolt.
Lock the crankshaft using suitable tool, then tighten the bolt.
Perform the following steps for angular tightening:
Apply engine oil onto the threaded parts of the bolt and seating area.

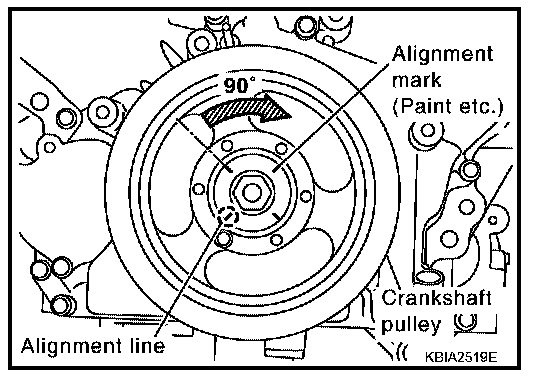

Select the one most visible notch of the four on the bolt flange. Corresponding to the selected notch, put a alignment mark (such as paint) on the crankshaft pulley.
Crankshaft pulley bolt torque
Step 1 93.1 Nm (9.5 kg-m, 69 ft-lb)
Step 2 additional 90° (angle tightening)

Timing Cover

Exploded View EM-37 (Part 1):

Exploded View EM-37 (Part 2):

Install the bolts in the numerical order shown.
M6 x 50 mm (1.97 in) No. 1, 20, 25, 26, 27
M6 x 80 mm (3.15 in) No. 4, 5, 7
M6 x 20 mm (0.79 in) Except the above
After tightening, re-tighten to the specified torque.

CAUTION: Be sure to wipe off any excessive liquid gasket leaking onto surface mating with oil pan.
