Transfer Control Unit Input/Output Signal Reference Values

Transfer Control Unit Input/Output Signal Reference Values
TRANSFER CONTROL UNIT INSPECTION TABLE

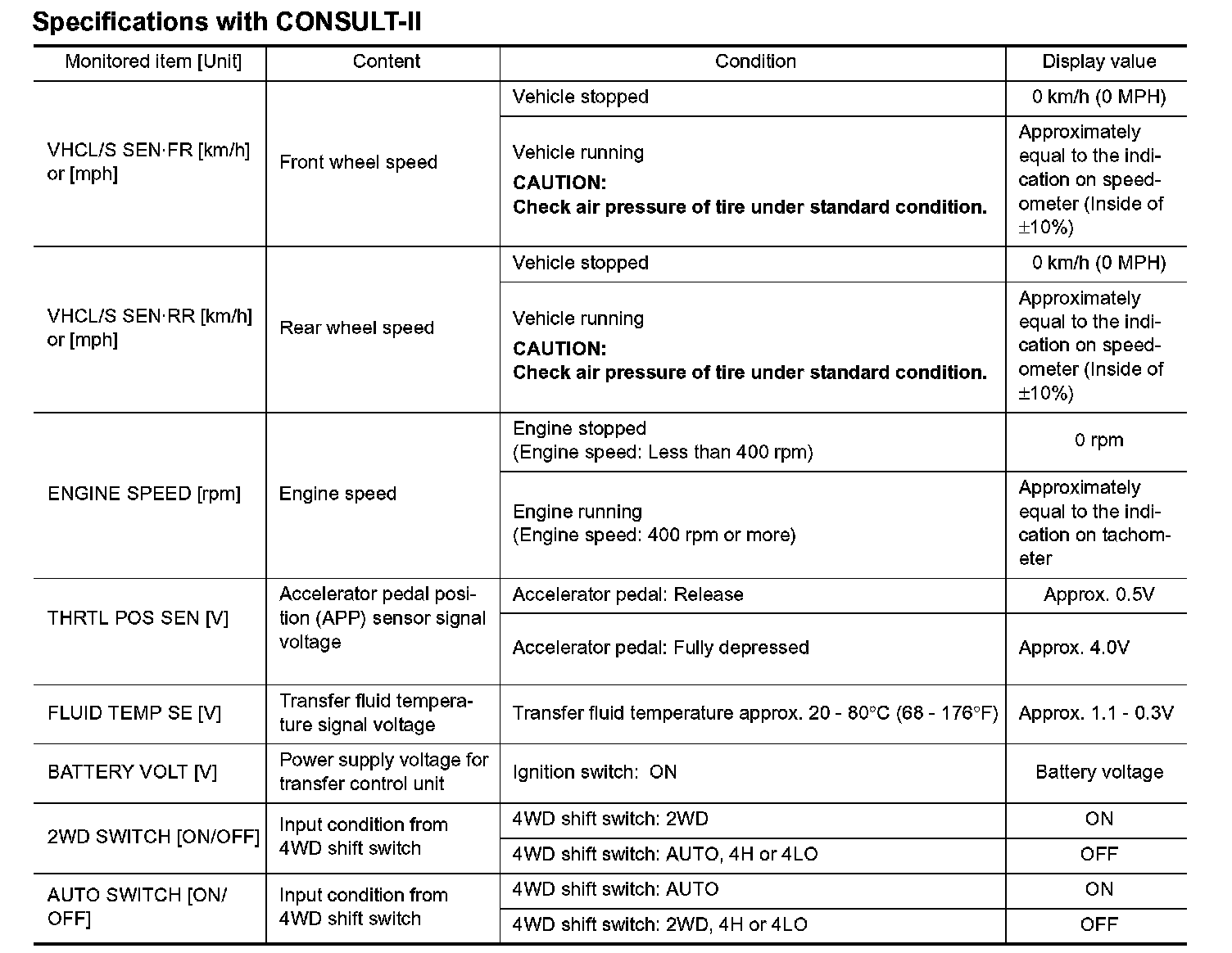

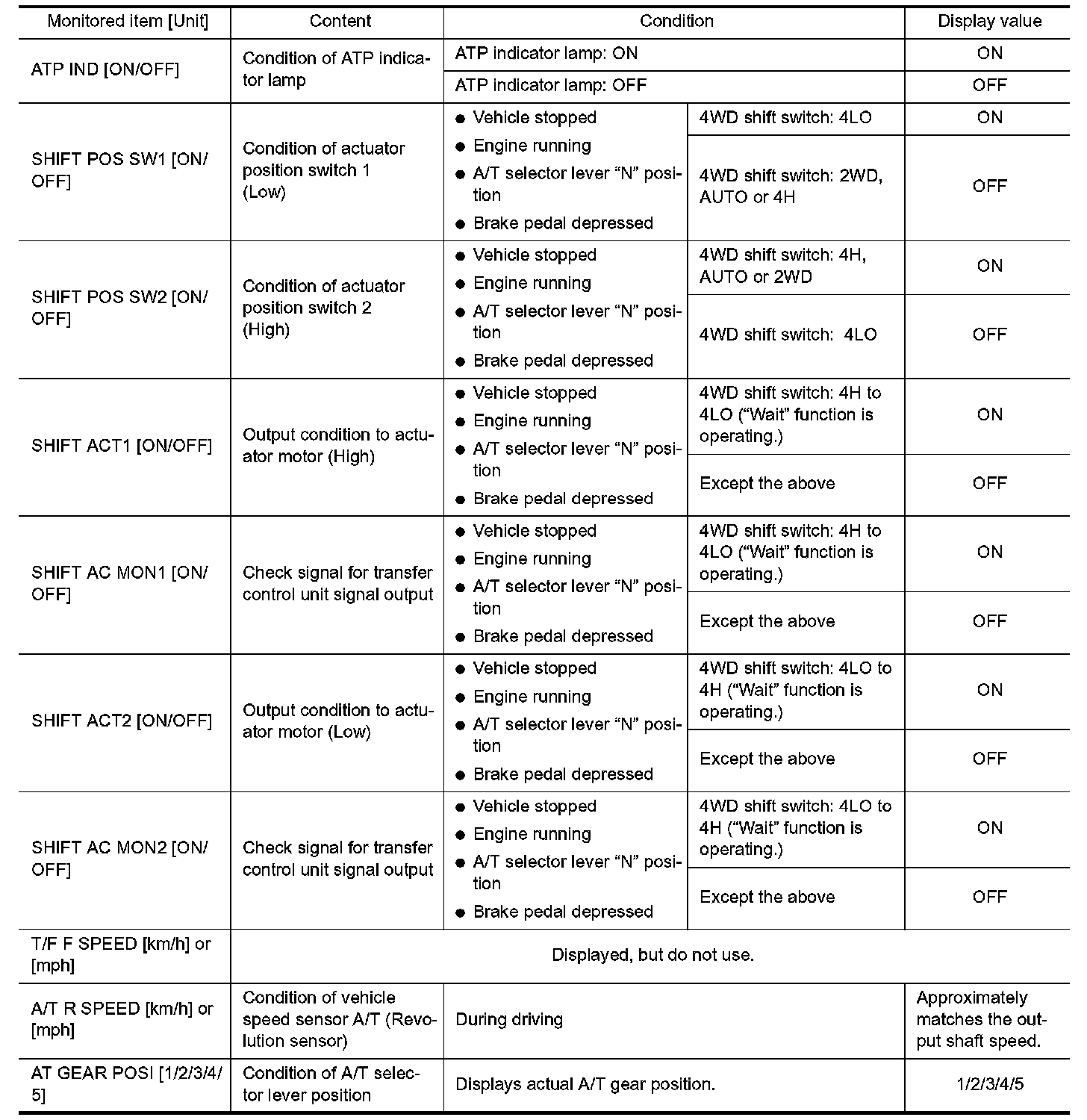

Specifications with CONSULT-II (Part 1):

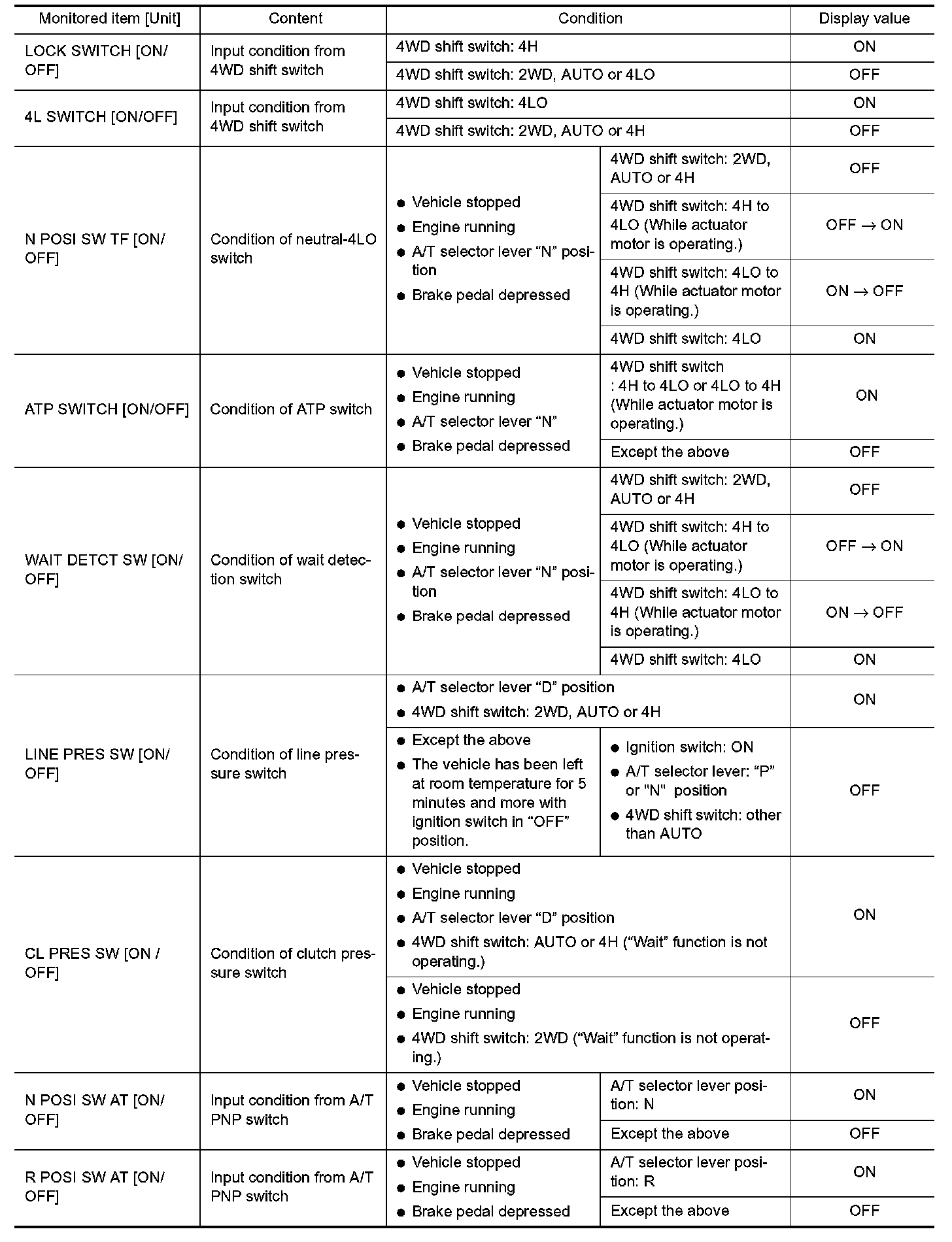

Specifications with CONSULT-II (Part 2):

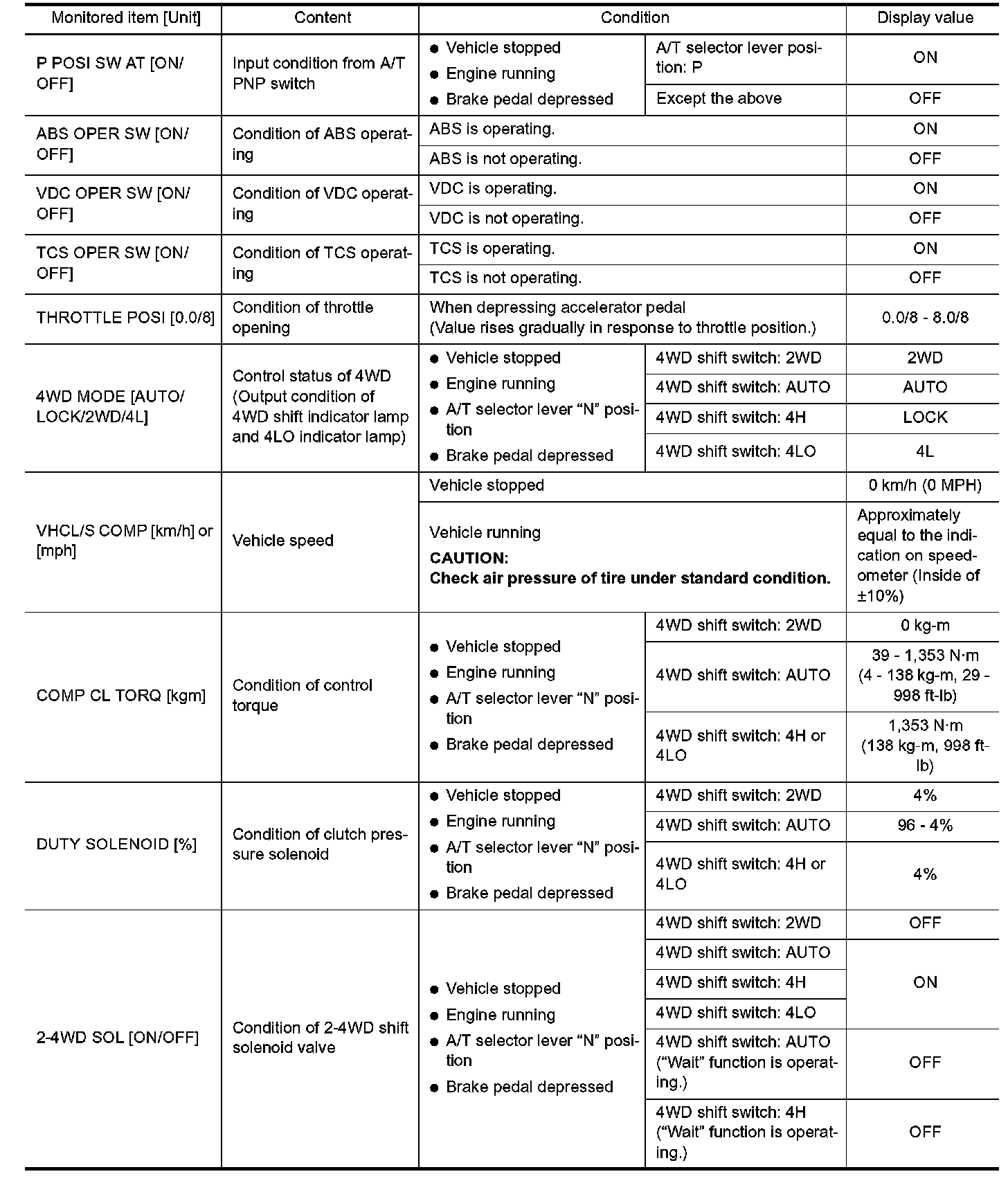

Specifications with CONSULT-II (Part 3):

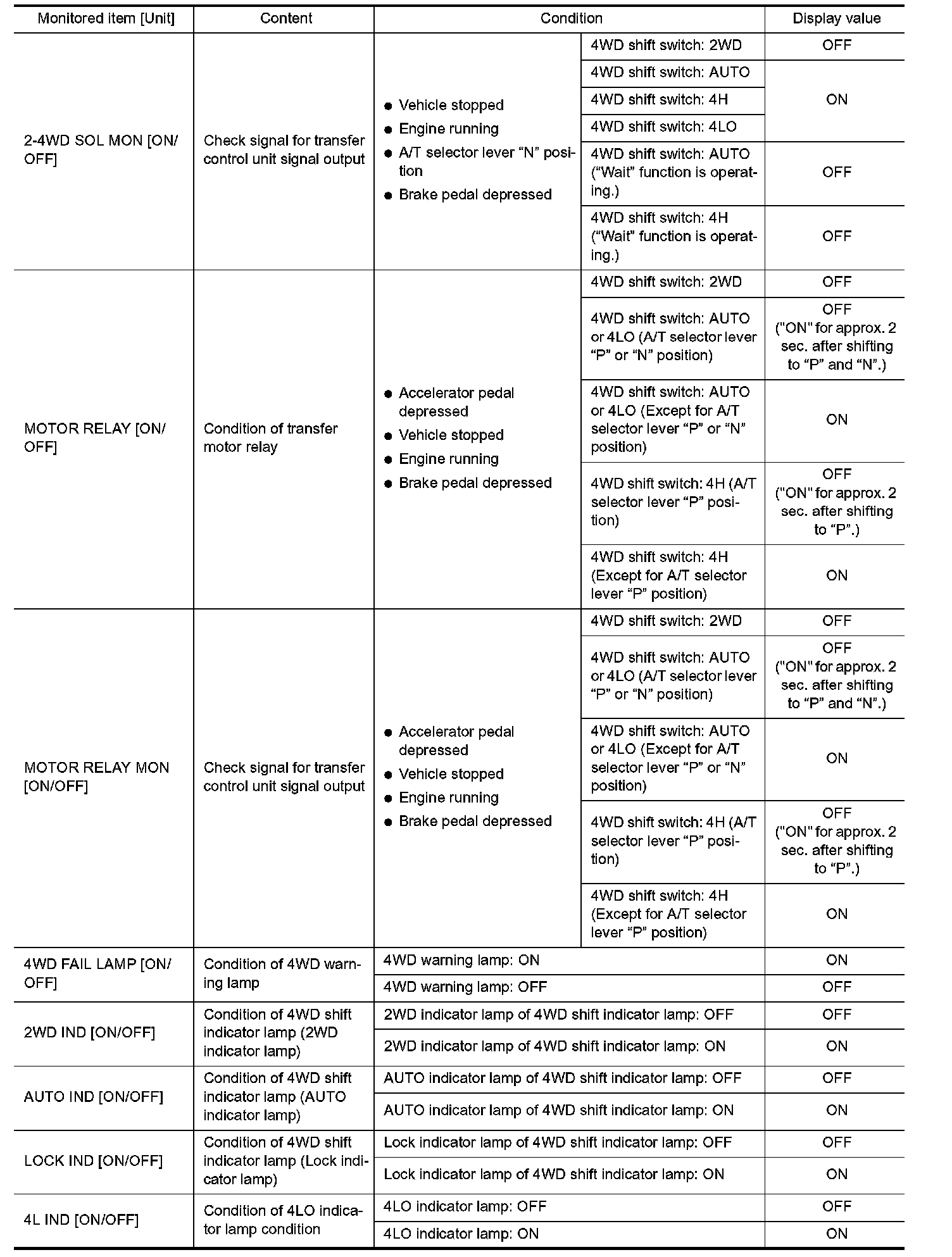

Specifications with CONSULT-II (Part 4):




Specifications with CONSULT-II (Part 5):





Specifications Between Transfer Control Unit Terminals

TRANSFER CONTROL UNIT TERMINAL CONNECTOR LAYOUT:





NOTE: Data are reference value and are measured between each terminal and ground.

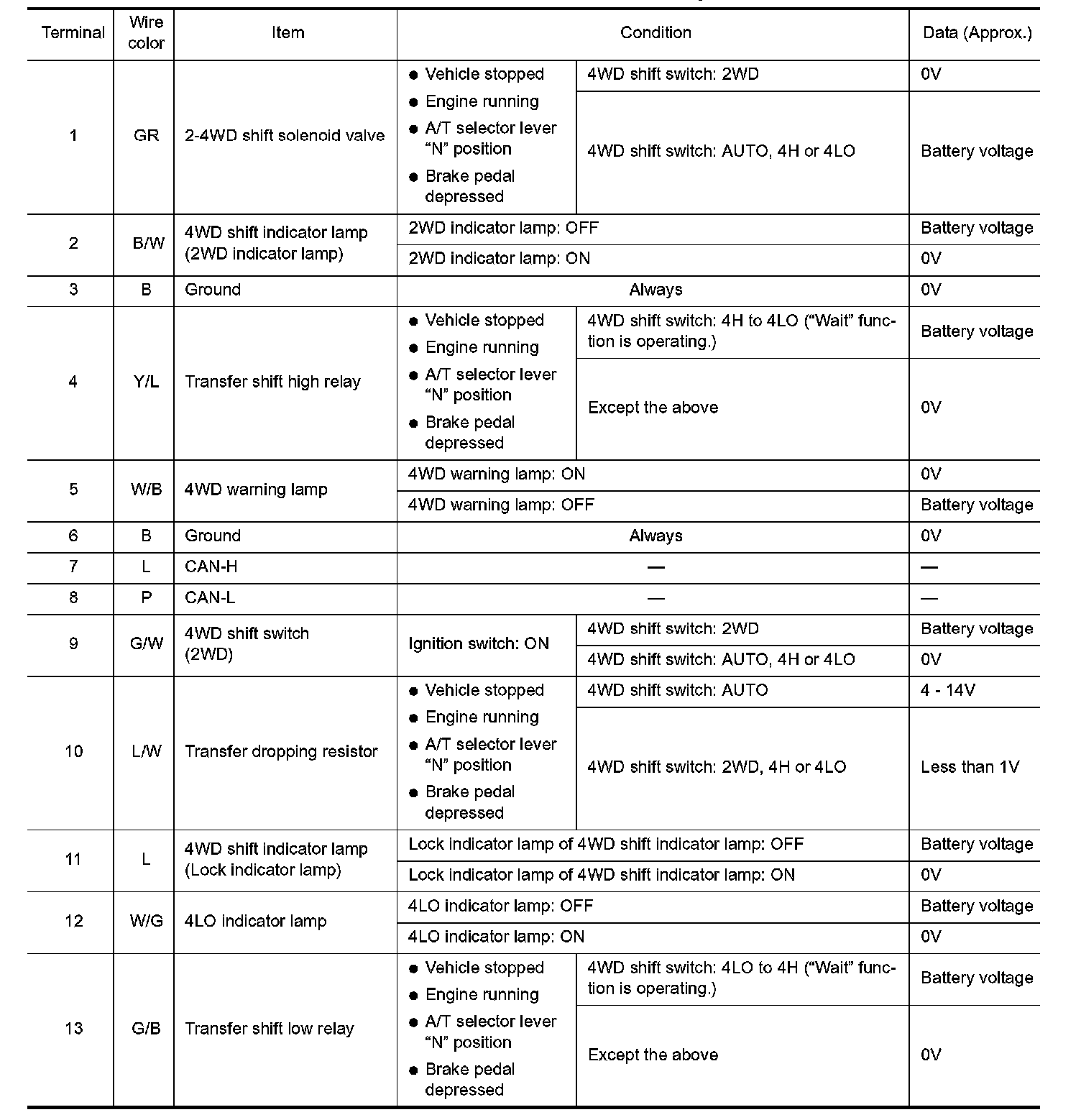

Part 1:

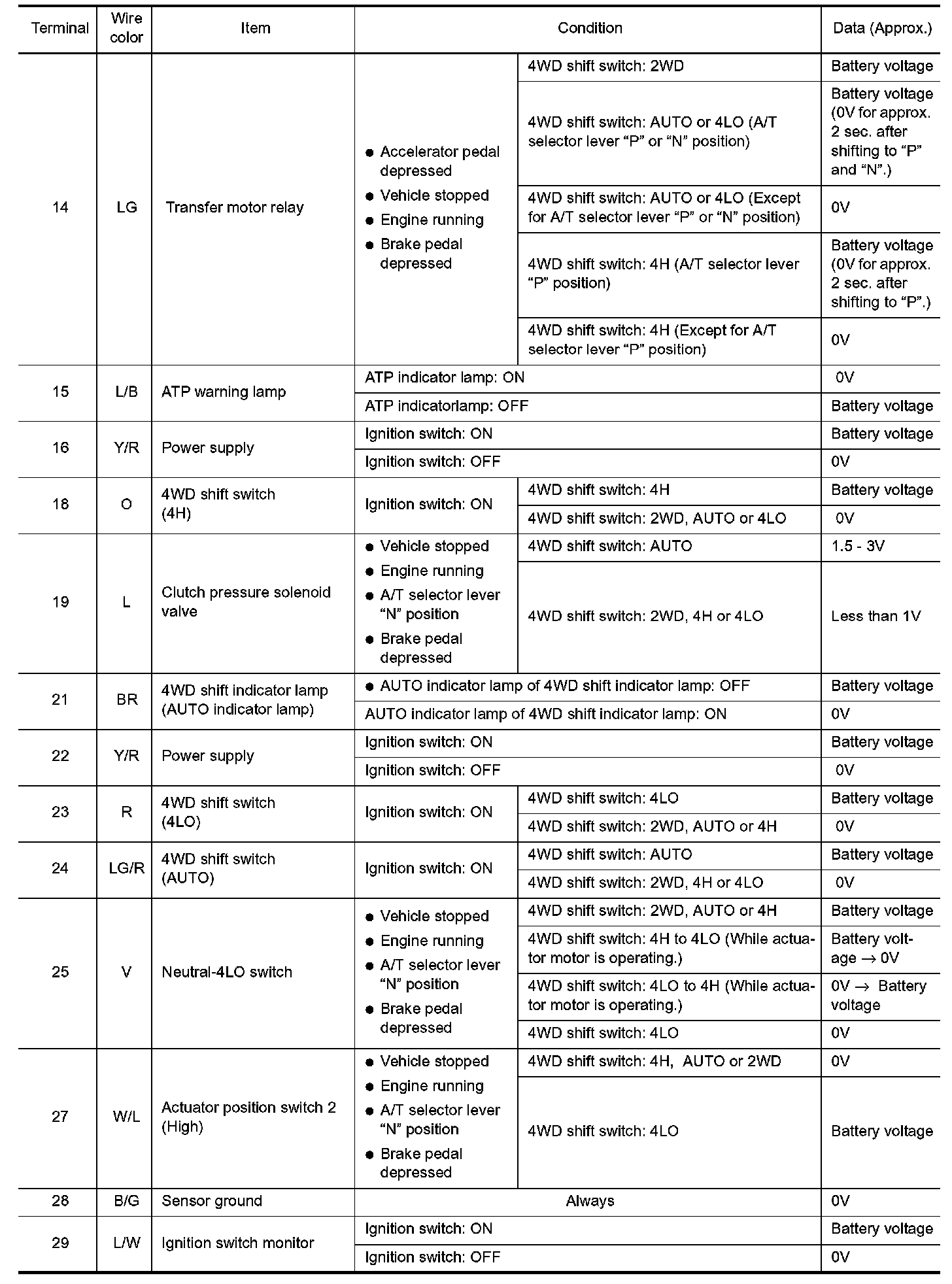

Part 2:

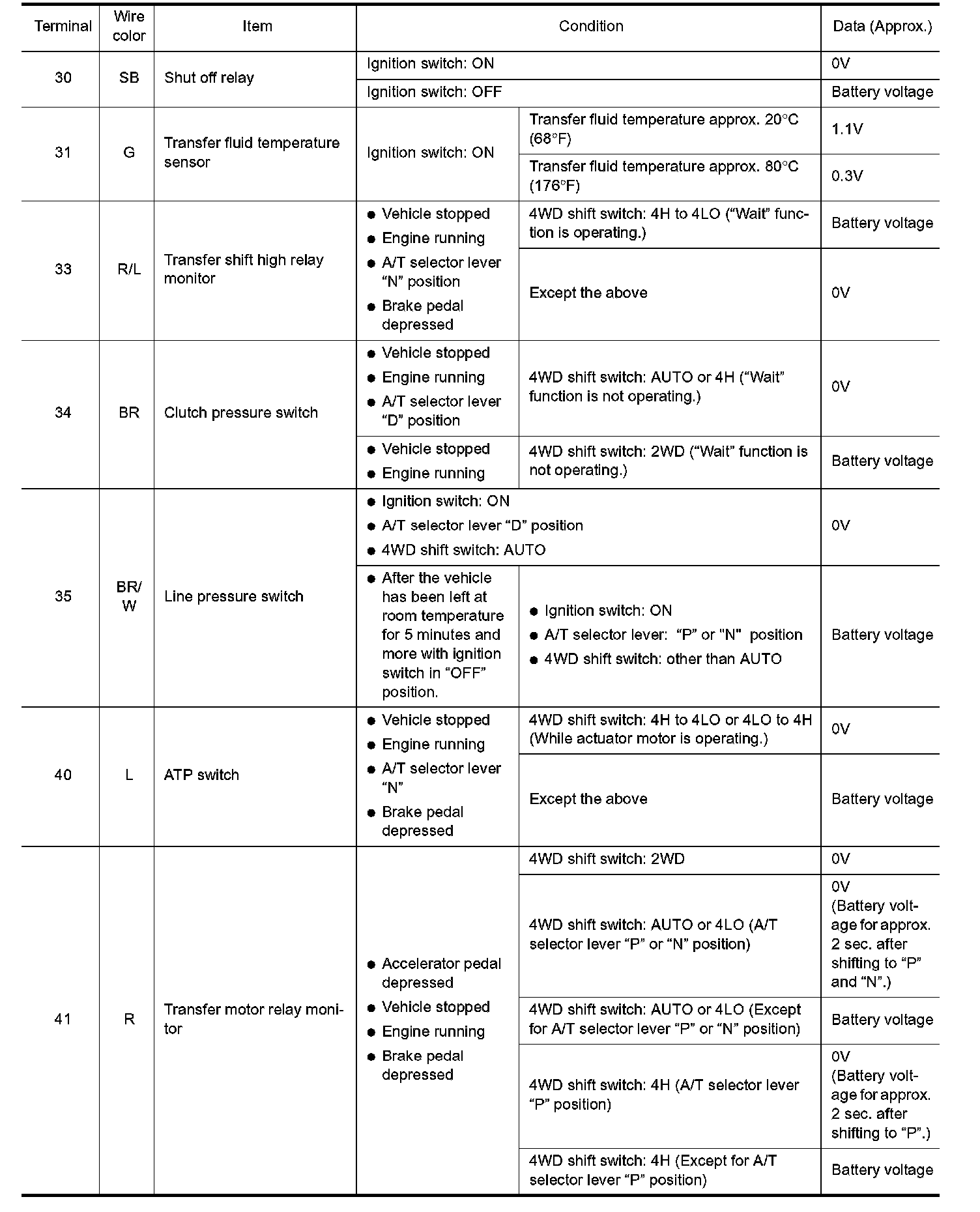

Part 3:

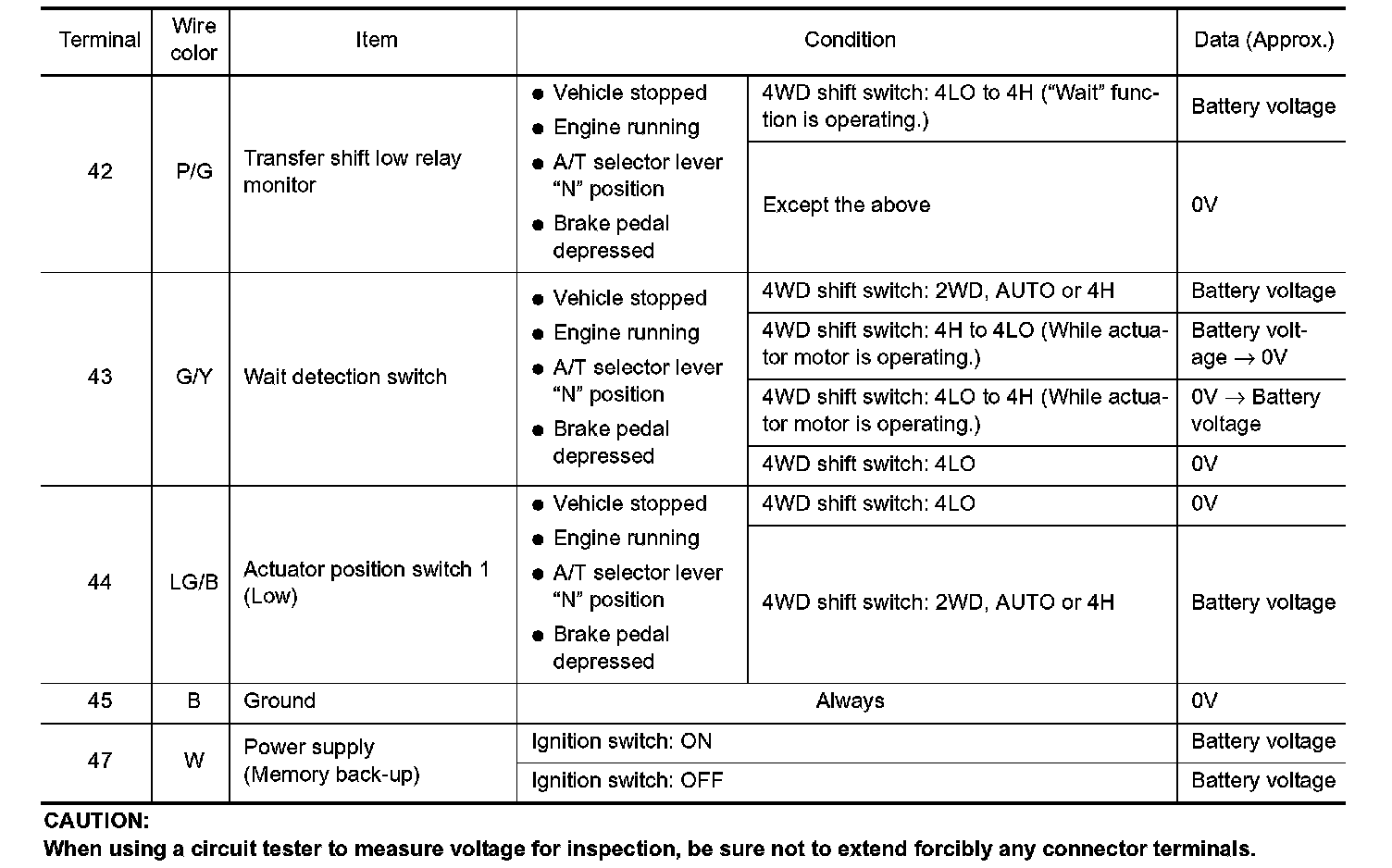

Part 4:
