Accelerator Pump Linkage Replacement

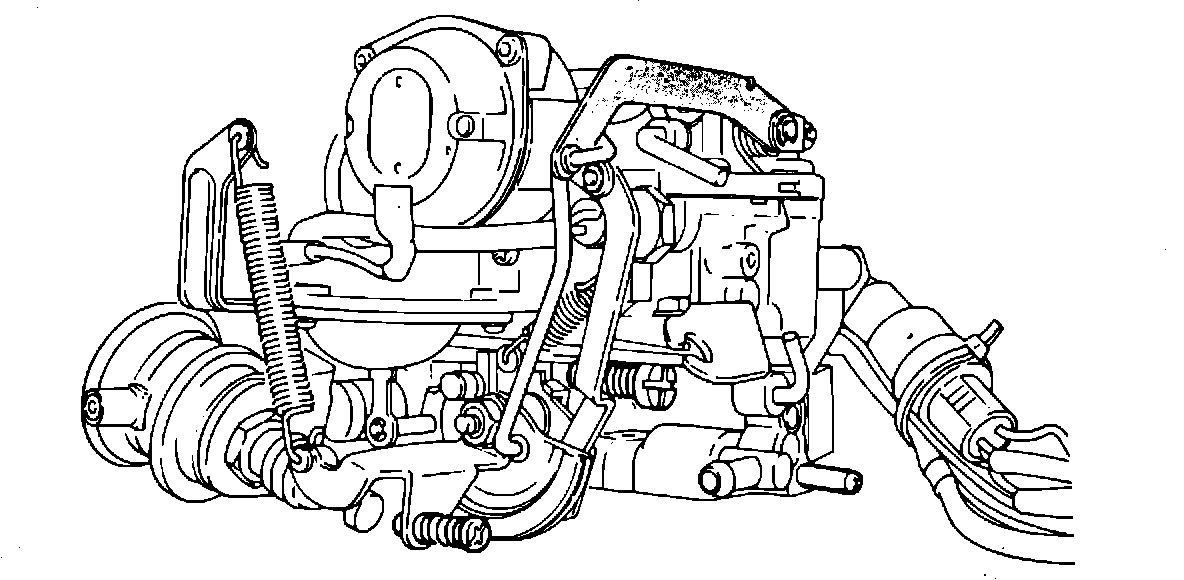

Current Accelerator Pump Linkage:

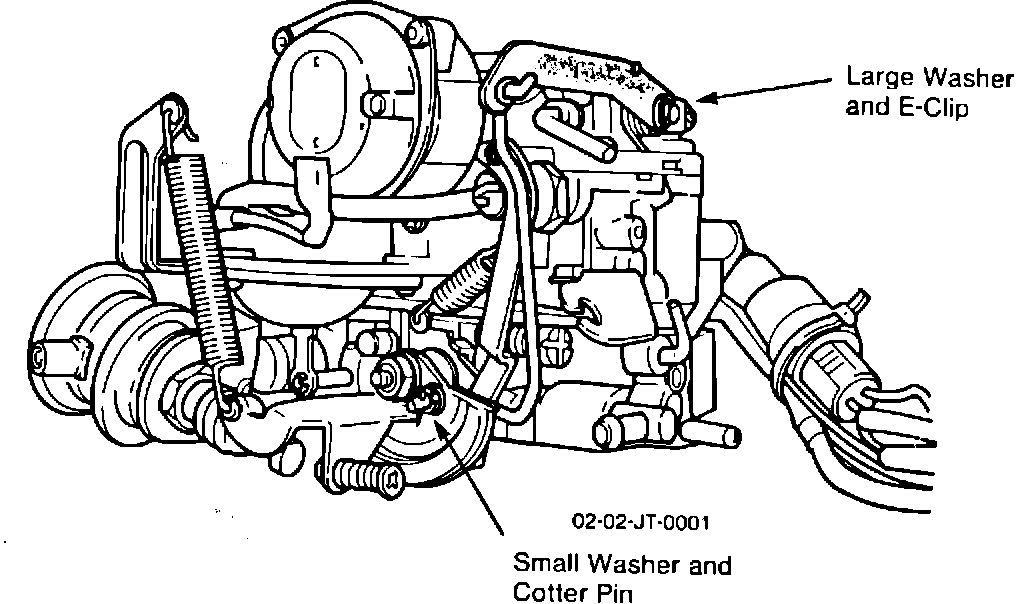

New Accelerator Pump Linkage.:

1. Move air cleaner forward about 7" (remove vacuum hoses as required).

2. Replace accelerator pump linkage. See illustration.
3. Reposition air cleaner, WARRANTY INFORMATION
Operation Number: 030299

Trouble Code: 71

Parts: Dealer cost +25%

Time Allowance: PROM replacement .5
Add for accelerator pump linkage replacement .3
Total time allowable for this Service Bulletin .8
