Timing Cover: Service and Repair

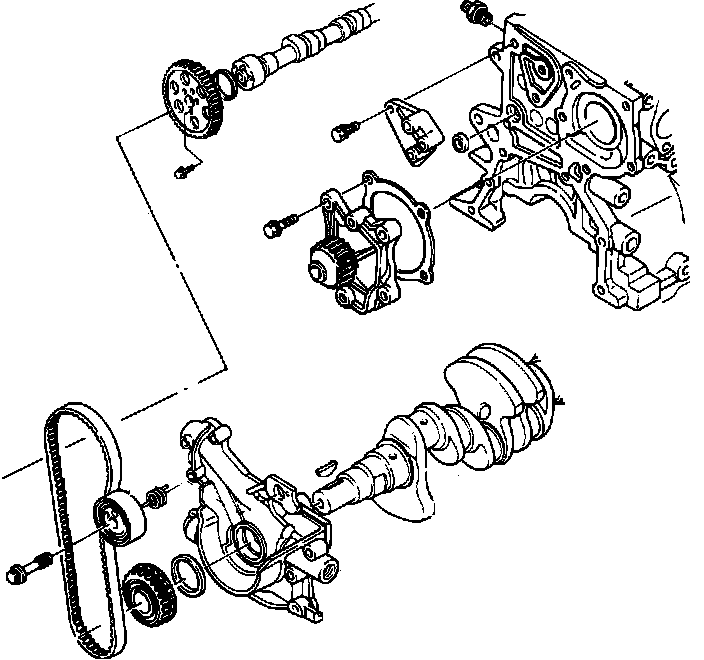

Fig. 30 Replacement of front cover & oil seal:
Less 4XE1 Engine Refer to
Fig. 30, for removal and installation of front cover.

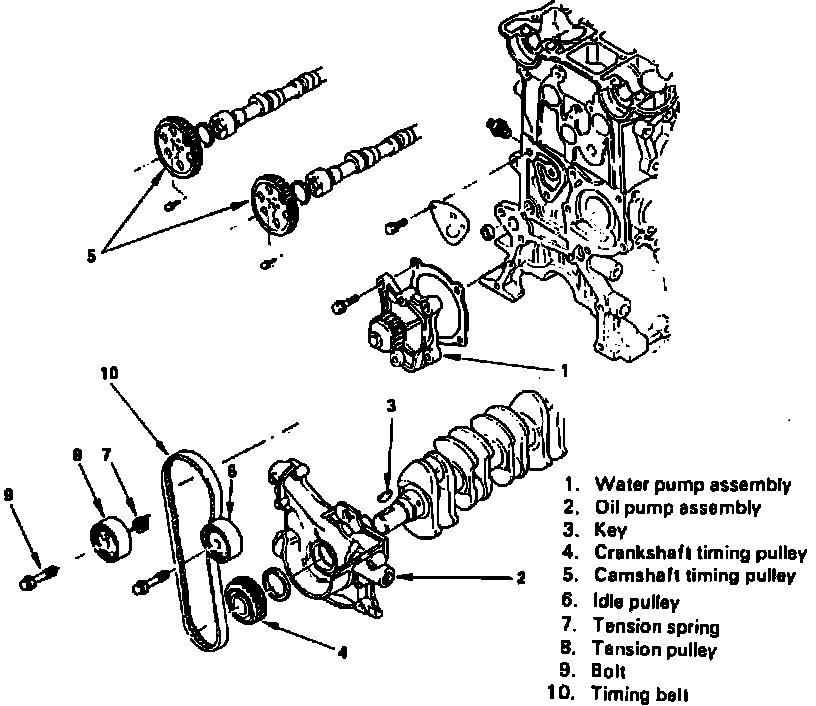

Fig. 31 Replacement of front cover & oil seal:
4XE1 Engine Refer to
Fig. 31, for removal and installation of front cover.
