High Altitude System




DIAGNOSTIC CHART

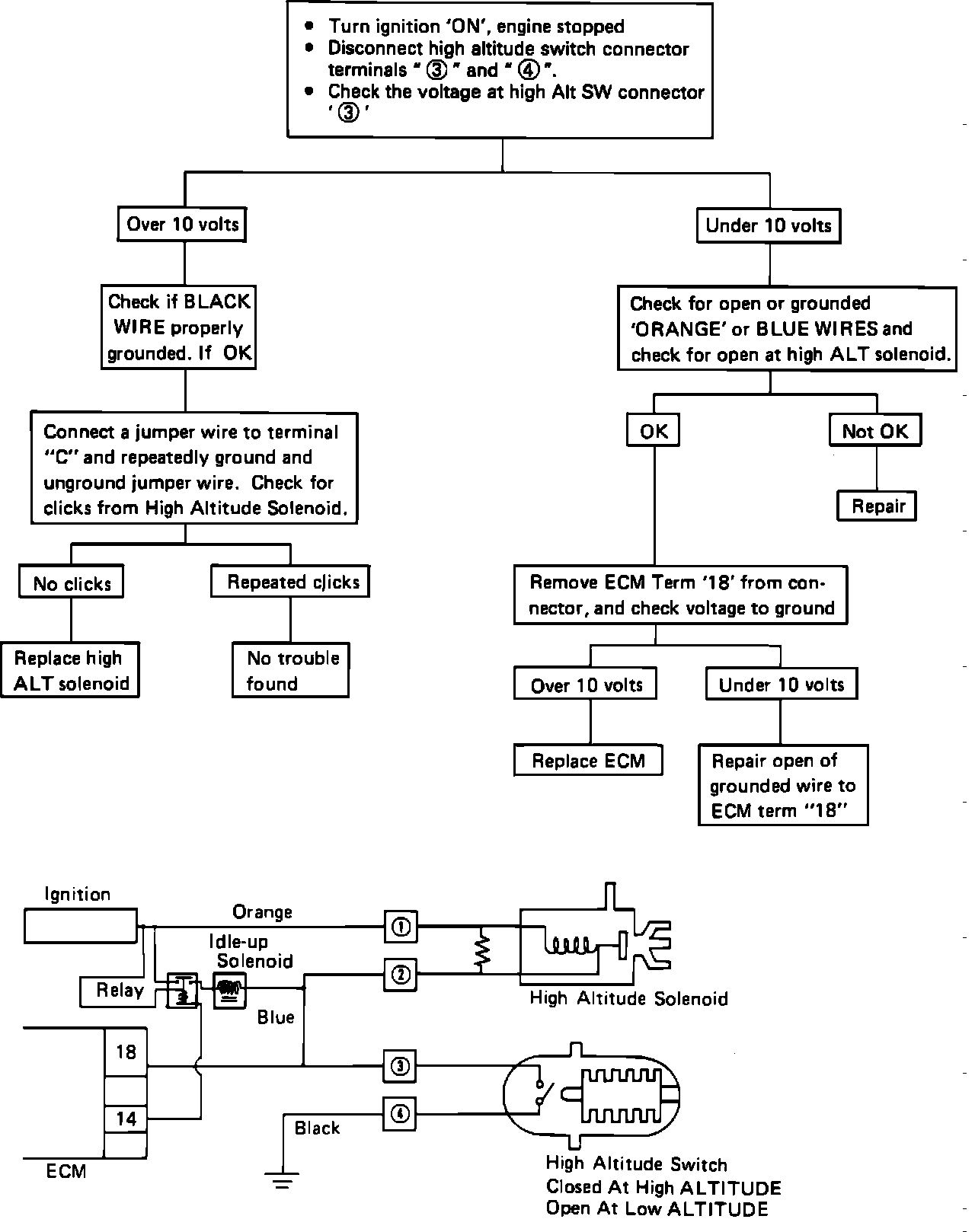

High Altitude System Check Chart:







NOTE: If this system malfunctions, code 45 is sometimes stored at VERY high altitudes.
