Fuel System - Electrical Test, Manual Corrections

BULLETIN NUMBER:
SB98-02-LOO1

ISSUE DATE:
JULY 1998

GROUP:
FUEL SYSTEM

1996/97 RODEO (UC) /1998 RODEO (UE)
FUEL SYSTEM ELECTRICAL TEST
DRIVEABILITY AND EMISSIONS
WORKSHOP MANUAL CORRECTIONS

AFFECTED VEHICLES

1996-97 Rodeo (UC) and 1998 Rodeo (UE) 3.2L V6 models.

SERVICE INFORMATION

The diagnostic procedures for the Fuel System Electrical Test has been revised.

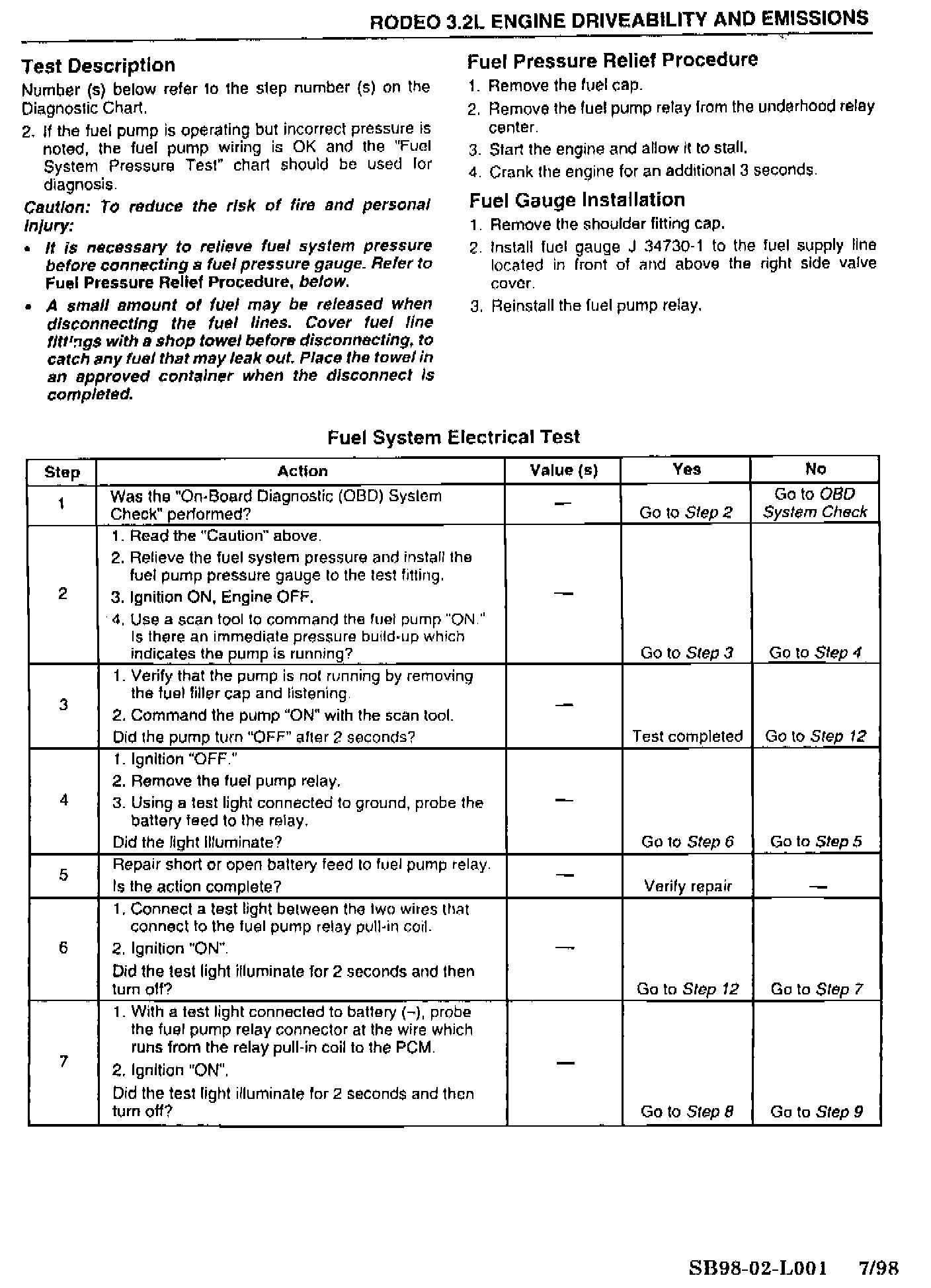

Please see the attached page for the revised diagnostic procedures.

Manual Page No.

UC097-WSM-LS1 6E2-85
UE098-WSM-LS1 6E2-81





This service bulletin contains the revised page to the referenced Driveability and Emissions Manuals. Attach the enclosed page to the referenced Driveability and Emissions Manuals.
