Entertainment/Communication Connector End Views

Entertainment/Communication Connector End Views

Audio Amplifier C1 (w/UQA)

Audio Amplifier C2 (w/UQA)

Cellular Microphone (UE1)

Digital Radio Receiver (w/U2K)

Digital Video Disc (DVD) Player (U42)

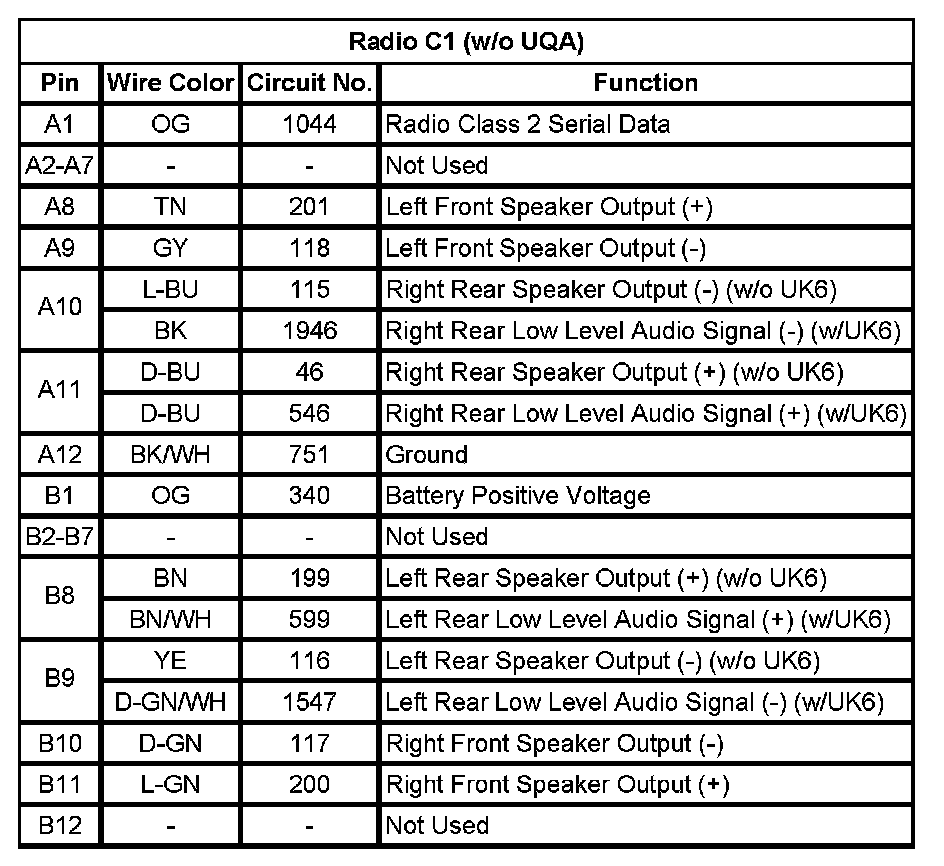

Radio C1 (w/o UQA)

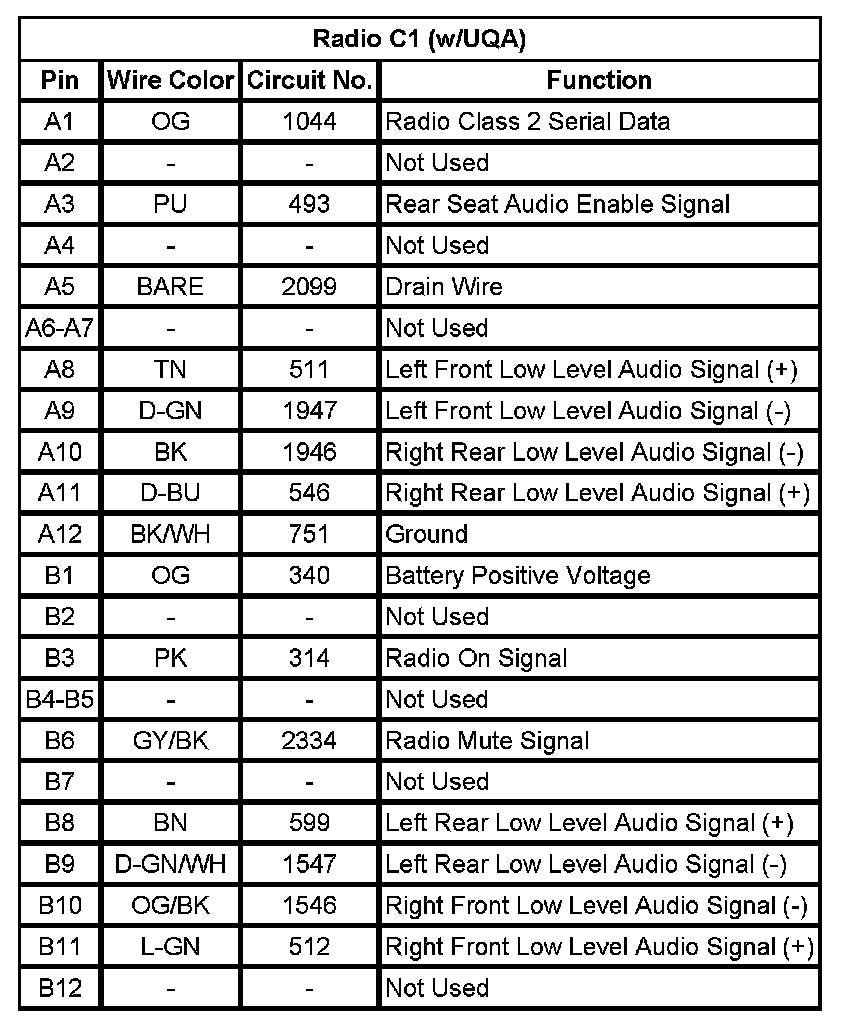

Radio C1 (w/UQA)

Radio C2

Speaker - LF Door (w/UQA)

Speaker - LF I/P (w/UQA)

Speaker - OR Door (w/o UQA)

A/T Shift Lock Control Solenoid:

Speaker - OR Door (w/UQA)

Speaker - RF Door (w/UQA)

Speaker - RF I/P (w/UQA)

Speaker - RR Door (w/o UQA)

A/T Shift Lock Control Solenoid:

Speaker - RR Door (w/UQA)

Speaker Assembly - LF Door (w/o UQA)

A/T Shift Lock Control Solenoid:

Speaker Assembly - RF Door (w/o UQA)

A/T Shift Lock Control Solenoid:

Vehicle Communication Interface Module (VCIM) C1 (UE1)

Vehicle Communication Interface Module (VCIM) C2 (UE1)
