Removal

Resistor

Removal

1. Remove the lower cover (1).
- Remove the resin clip (2) of the lower cover (1), pull the panel forward and disconnect the clip on the reverse side.






2. Remove the IP cluster bezel.
- Pull the IP cluster bezel forward and disconnect the clip on the reverse side.
- Disconnect each connector.

3. Remove the center cover.
- Remove the bolt and resin clip of the center cover, pull the panel forward and disconnect the clip on the reverse side.

4. Remove the connector of the resistor.
5. Remove the resistor.

Inspection

Resistor

1. Remove the connector of the resistor.

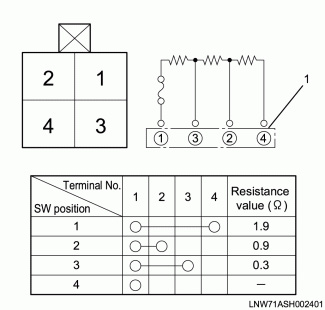

2. Check the conduction and resistance value between the terminals at the resistor end using the connection table below.







Legend
(1) Terminal No.
