Heater, Ventilation System

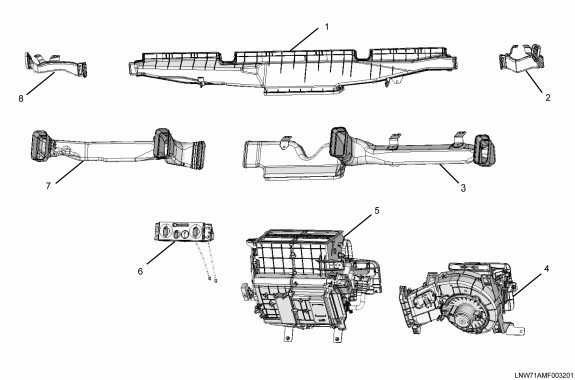

Heater, Ventilation SystemComponent LocatorLegend (1)
Defroster Nozzle
(2)
Side Defroster Nozzle (RH)
(3)
Ventilation Duct (RH)
(4)
Blower ASM
(5)
Heater Unit ASM
(6)
Control Lever ASM
(7)
Ventilation Duct (LH)
(8)
Side Defroster Nozzle (LH)
