Fault Diagnosis Description and Symptom Chart
FAULT DIAGNOSIS The Fault Diagnosis Preliminary Chart indicates the possible areas of the cause of the faults. Check possible causes in order given, until the fault is rectified. Details of the checks and remedial action are given on the respective area charts. Extra checks shown in brackets refer only to the specific condition shown in brackets after the symptom.

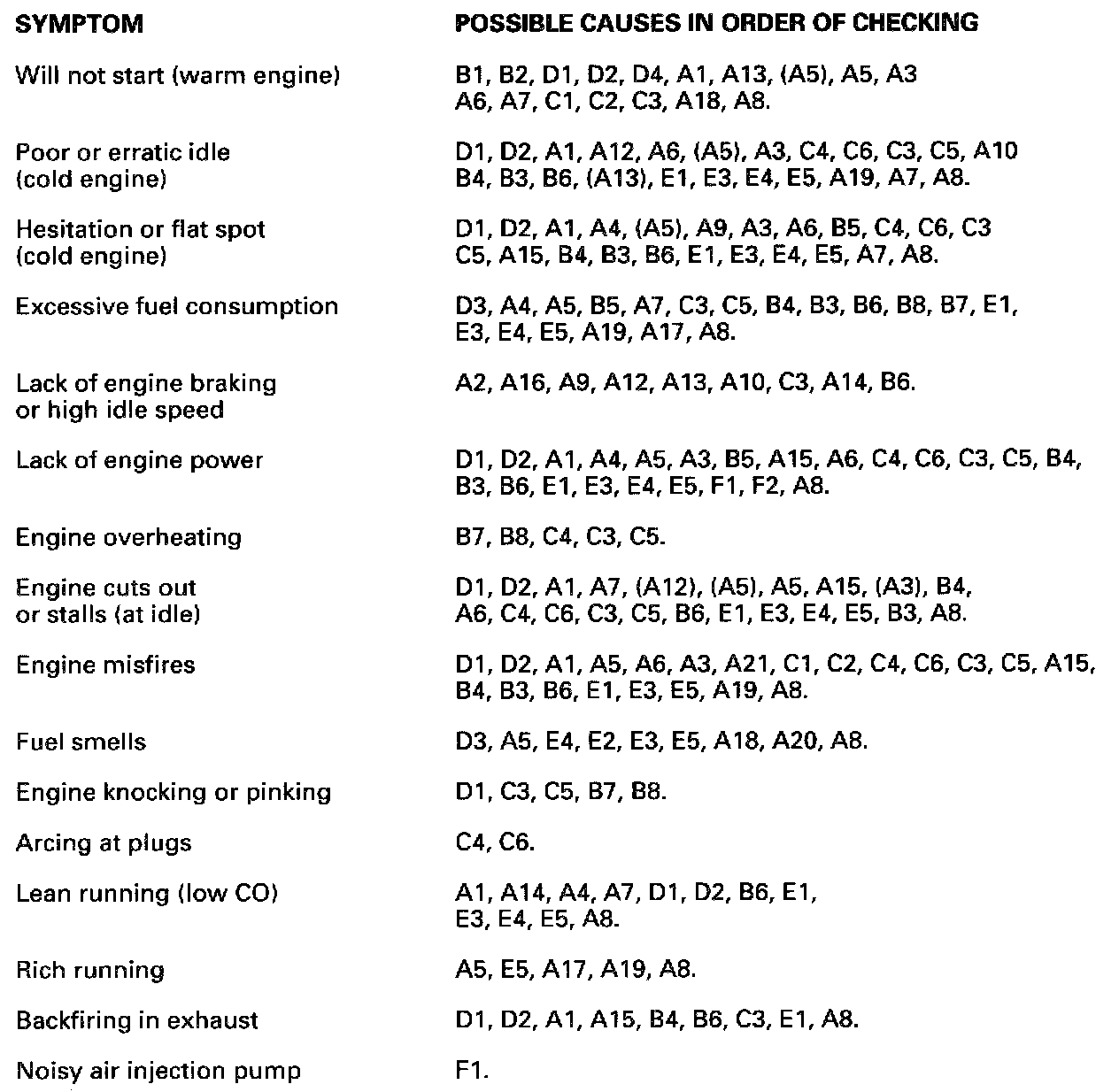

Symptom Chart
