Fuel Charging and Controls



Connector Views

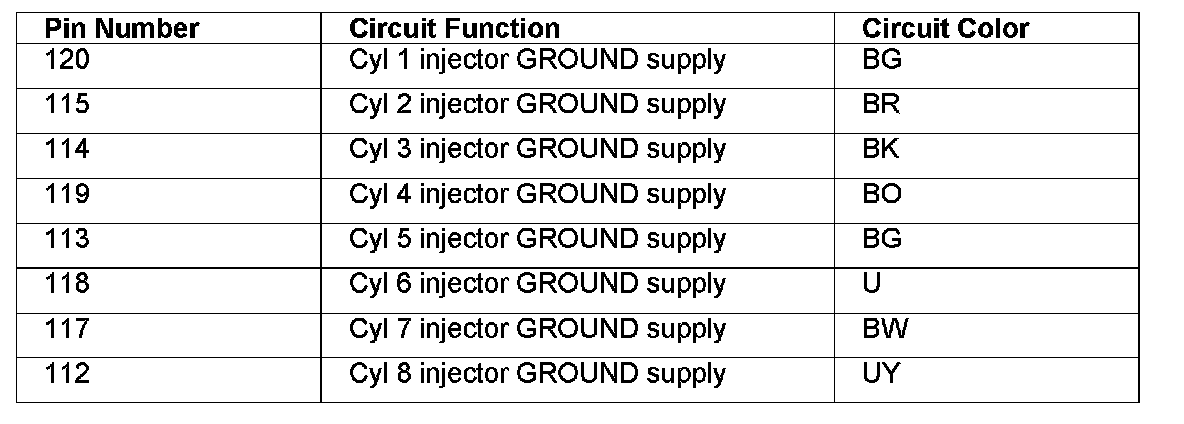

Powertrain Control Module Harness Connector:

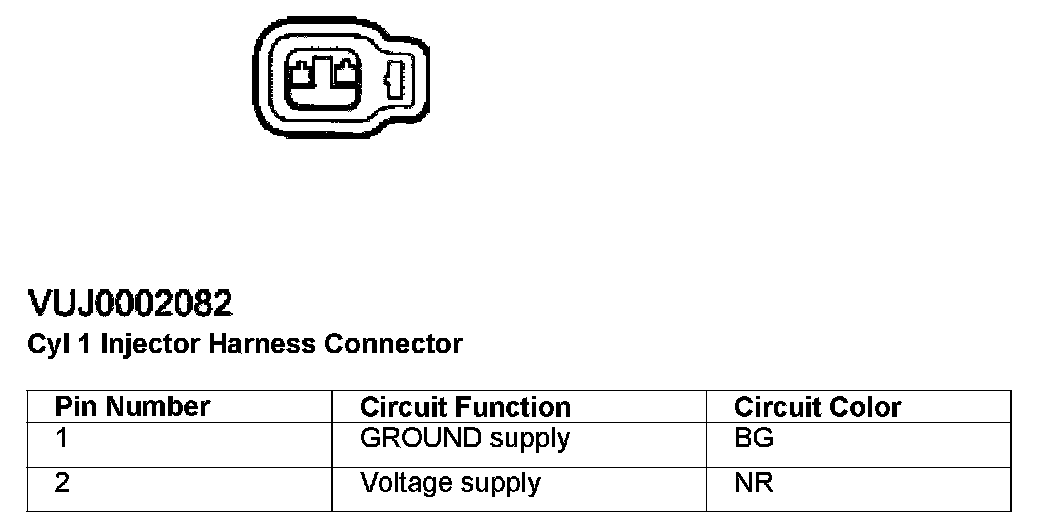

Cyl 1 Injector Harness Connector:

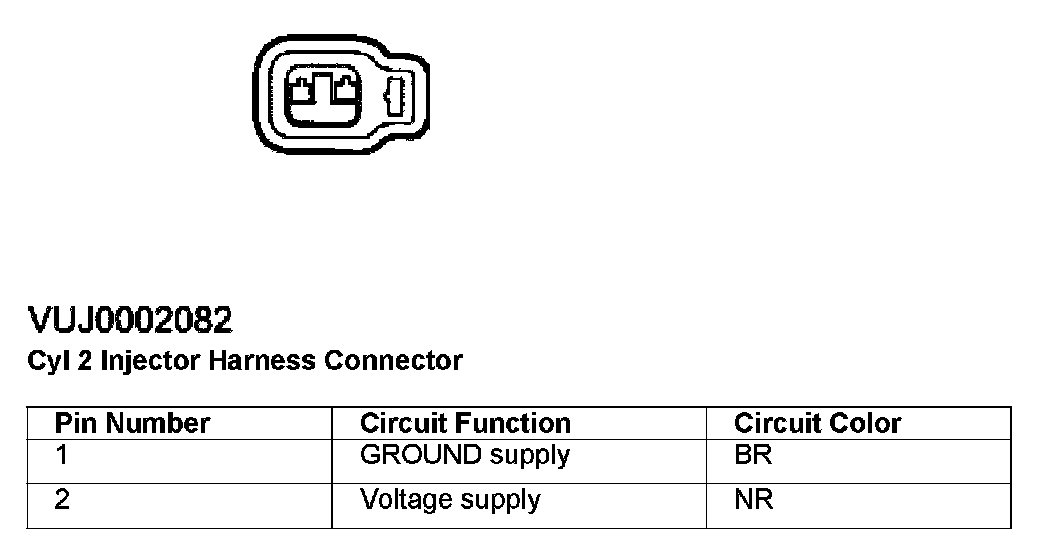

Cyl 2 Injector Harness Connector:

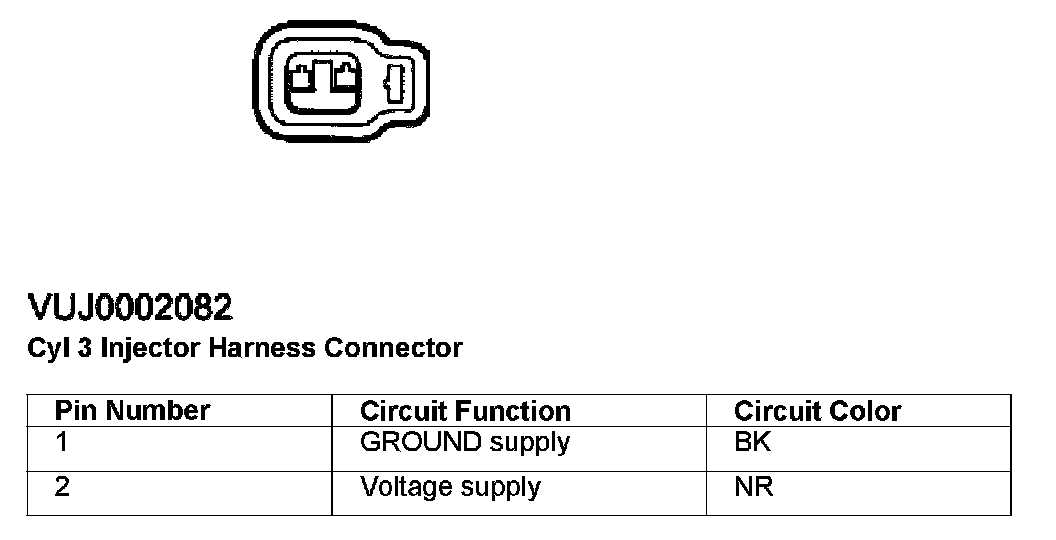

Cyl 3 Injector Harness Connector:

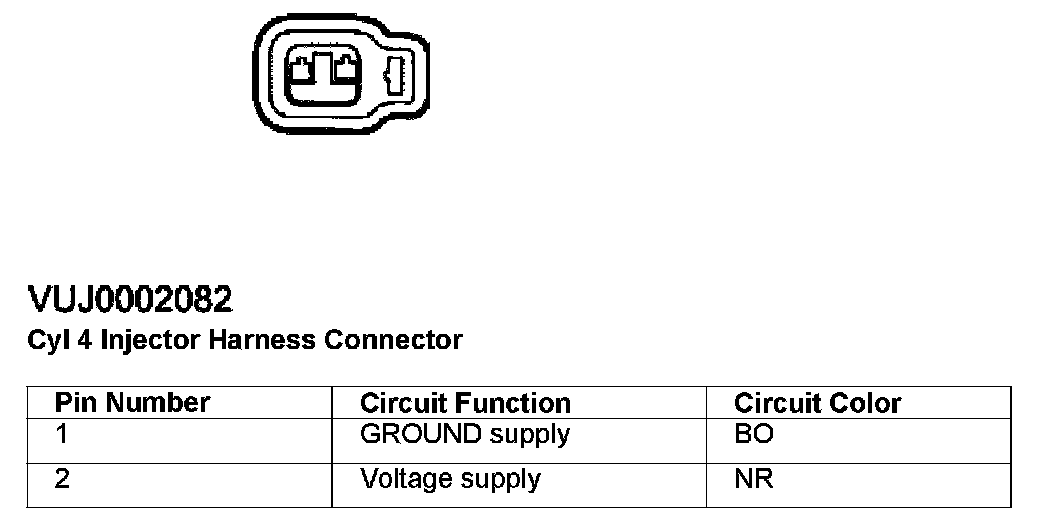

Cyl 4 Injector Harness Connector:

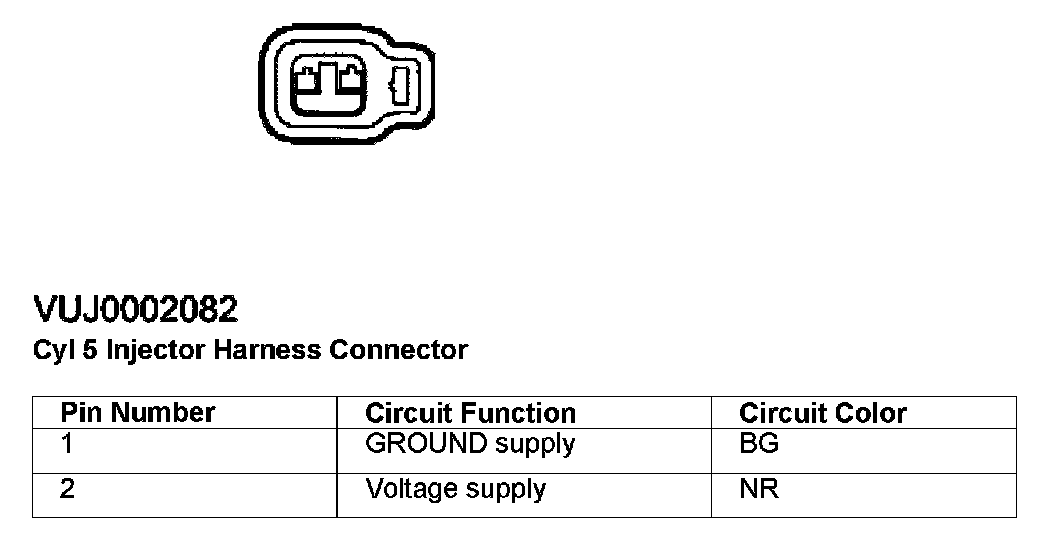

Cyl 5 Injector Harness Connector:

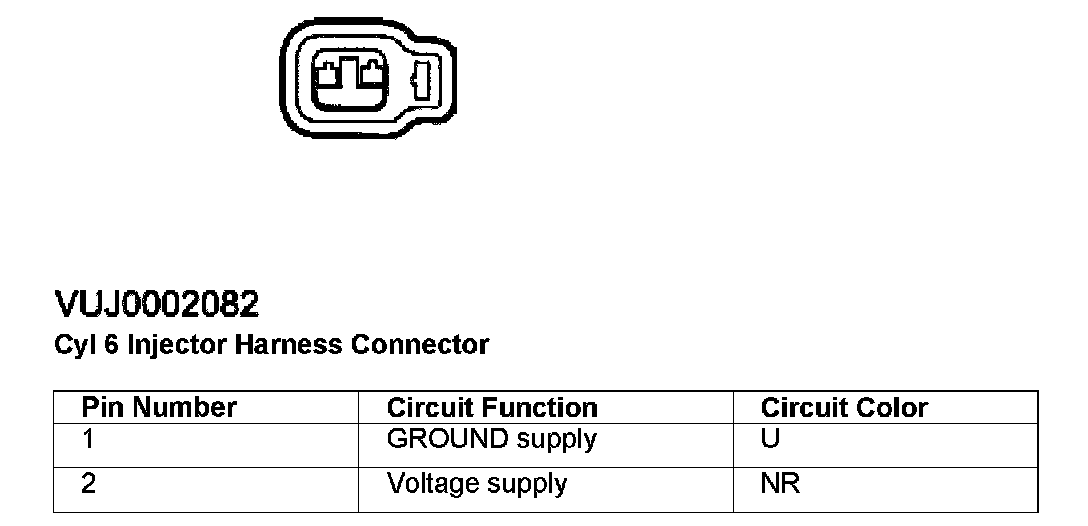

Cyl 6 Injector Harness Connector:

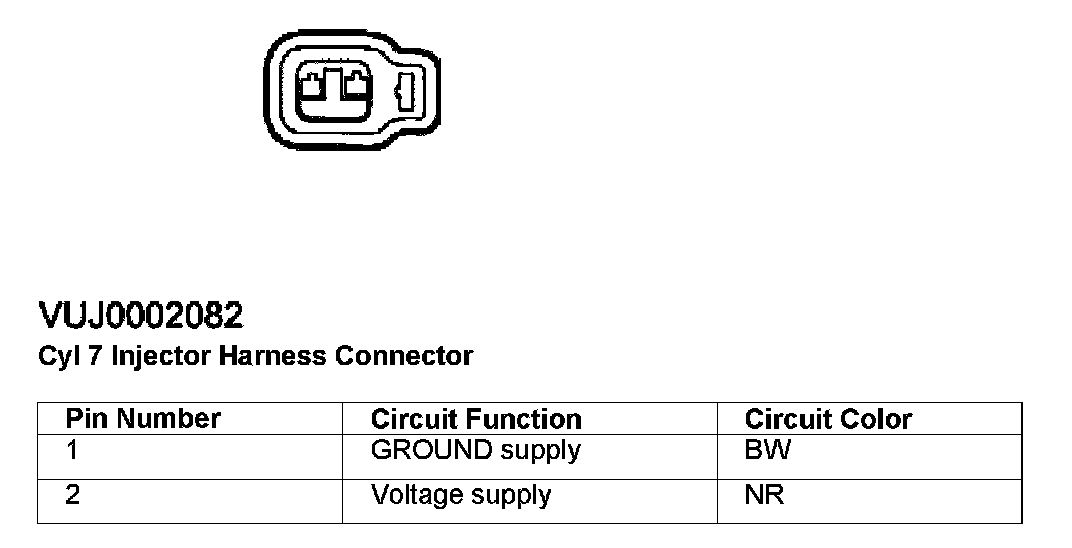

Cyl 7 Injector Harness Connector:




Cyl 8 Injector Harness Connector:

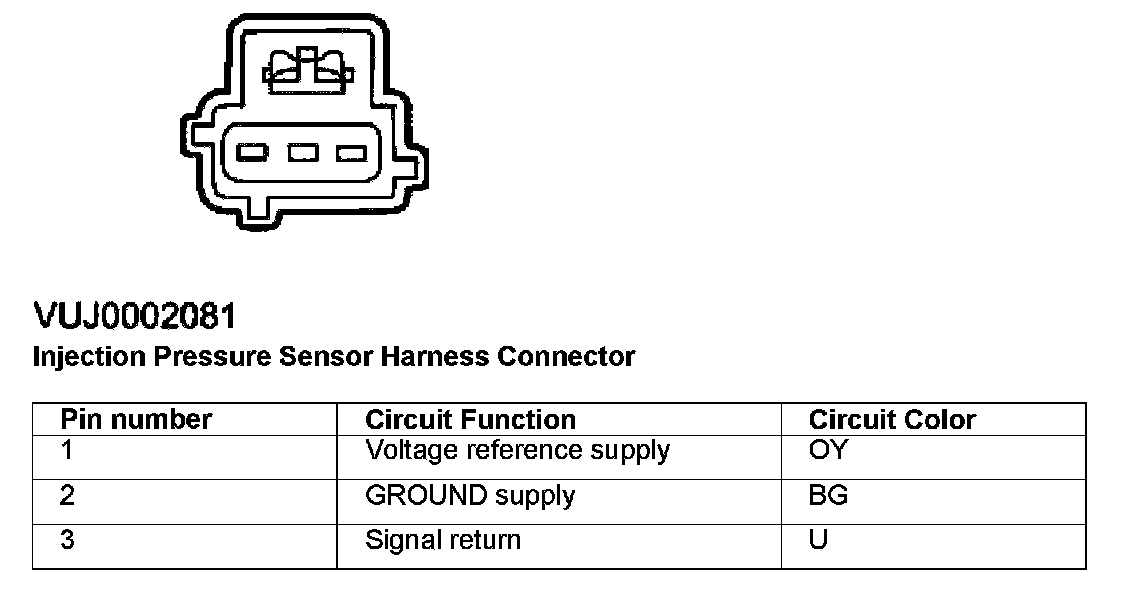

Injection Pressure Sensor Harness Connector:
