General Module: Service and Repair

86.80.38

Generic Electronic Module (GEM)

Removal
1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

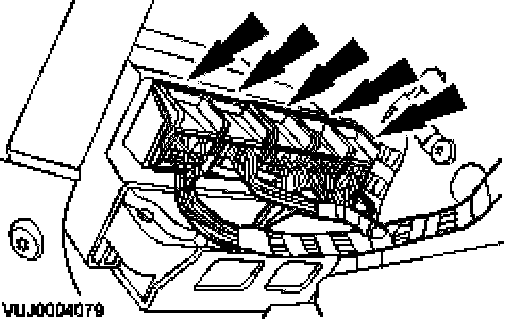

2. Disconnect the Generic Electronic Module (GEM) electrical connectors.

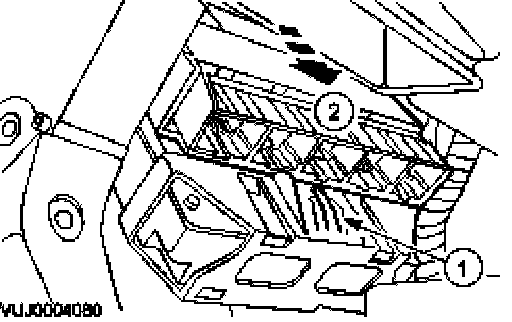

3. Remove the GEM.
1. Press the tang.
2. Remove the GEM

Installation
1. To install, reverse the removal procedure.
