Multifunction Voice Activated Module



4-Door 86.80.40

Multifunction Voice Activated Module

Removal

1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

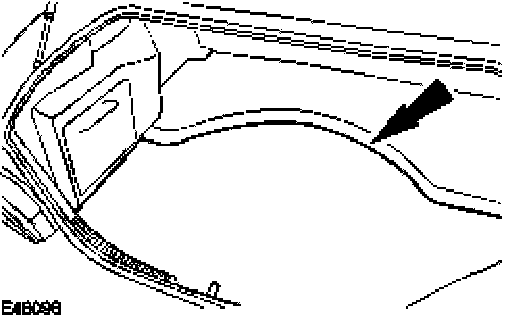

2. Remove the luggage compartment front floor carpet.

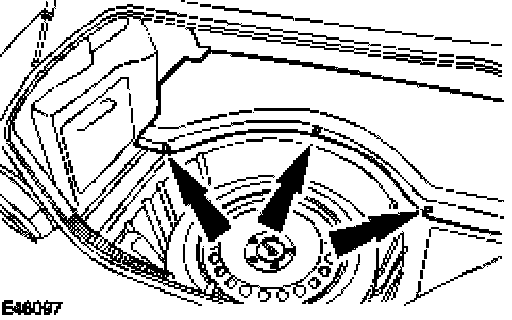

3. Remove the luggage compartment rear floor carpet.

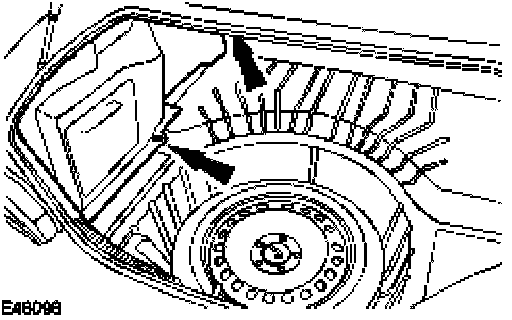

4. Remove the luggage compartment interior trim.

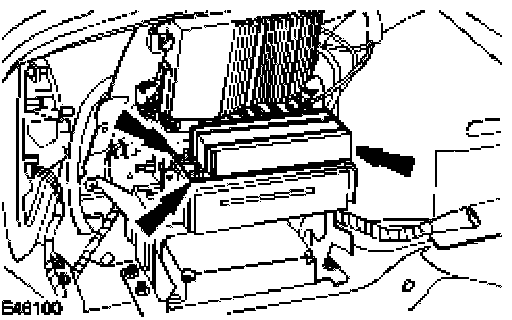

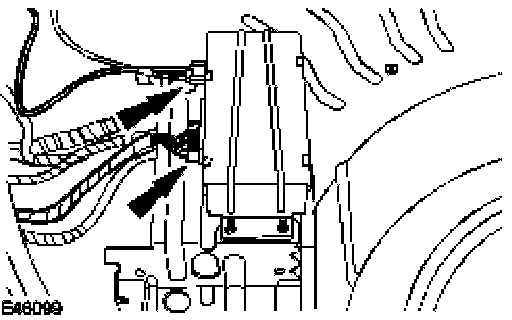

5. Disconnect the Voice Activated Control Module (VACM) electrical connector and fibre optic connector.







6. Remove the VACM.

Installation







1. To install, reverse the removal procedure.
- Tighten to 6 Nm.

2. Connect the battery ground cable.
3. Configure the voice activated control module using the Jaguar approved diagnostic system.
4. Test the operation to confirm that the correct language is installed, if the language is wrong then replace the voice module for the correct language.
5. Switch the ignition on and wait for the system to initialize. Press the voice button and say the command 'Voice Help' list the options given in the feedback.
6. Compare the options given with the vehicle specification if there is an error reconfigure the voice module and repeat steps 4 and 5.
