Cylinder Block Assembly: Specifications

Crankshaft vibration damper retaining bolt.
Install a new crankshaft vibration retaining bolt.
Stage 1: Torque to 120 Nm.
Stage 2: Loosen the bolt (minimum 1 turn).
Stage 3: Torque to 50 Nm.
Stage 4: Angle Torque to 90°.

Crankshaft pulley retaining bolt.
Torque to 120 Nm.
Loosen the bolt (minimum 1 turn).
Torque to 50 Nm.
Angle Torque to 90°.

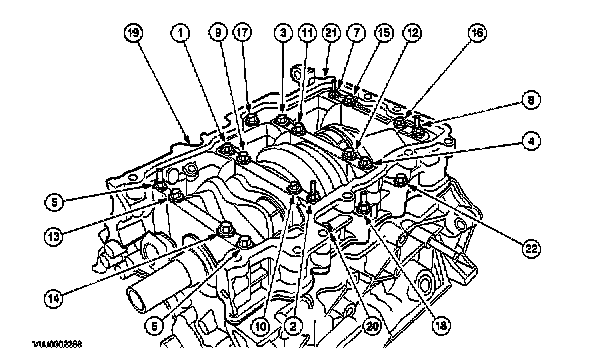

Crankshaft Main Bearings

Bolts 1 through 16 are tighten-to-yield and must be replaced.

Stage 1: Bolts 1-8, 25 Nm
Stage 2: Bolts 9-16, 40 Nm
Stage 3: Bolts 1-16, 90°
Stage 4: Bolts 17-22, 25 Nm

Connecting Rod Bearings

Connecting rod bolts are torqued to yield and must be replaced.

Stage 1 23 Nm
Stage 2 43 Nm
Stage 3 105°
