Discharge Air Temperature Sensor / Switch: Service and Repair
82.20.64Air Discharge Temperature SensorRemoval 1.

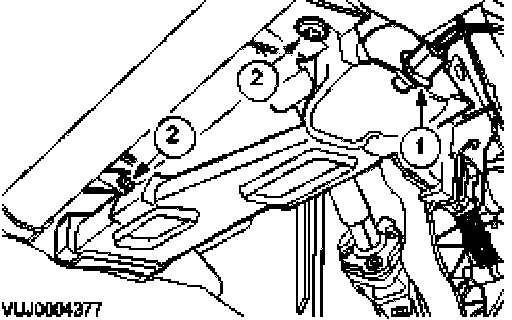

Remove the lower vent.
1.
Detach the bulb holder.
2.
Remove the lower vent.
2.

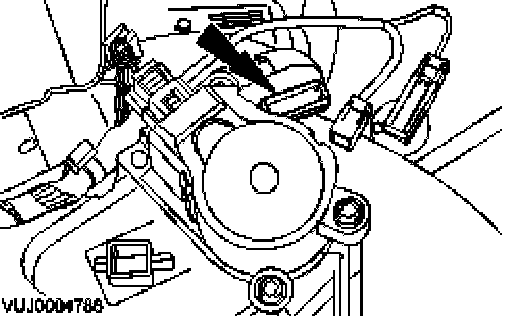

Disconnect the air discharge temperature sensor electrical connector.
3.

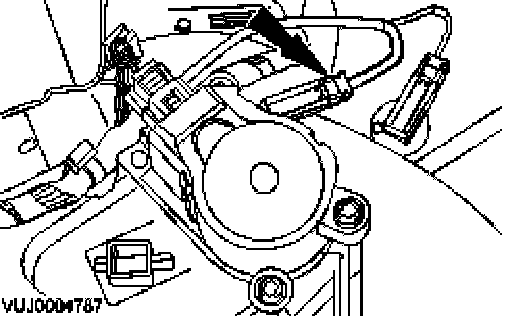

Remove the air discharge temperature sensor.
Installation 1.
To install, reverse the removal procedure.
