Refrigerant Pressure Sensor / Switch: Service and Repair
82.10.47Air Conditioning (A/C) Pressure TransducerRemoval 1.
Remove the front wheel and tire.
2.

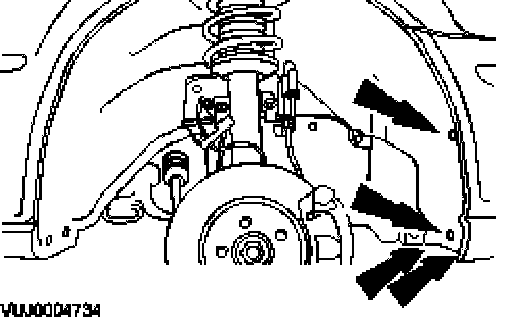

Detach the wheel arch liner.
3.
Disconnect the electrical connector.
4.

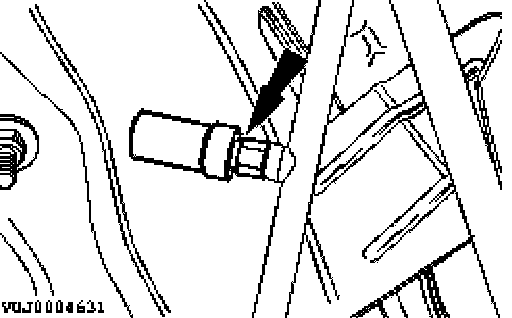

Remove the pressure transducer.
Installation 1.
To install, reverse the removal procedure.
