System Specifications

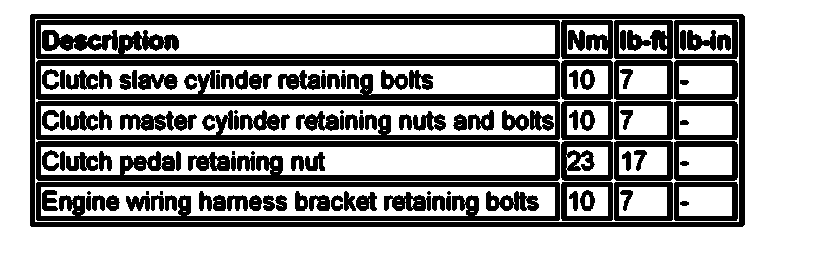

Torque Specifications

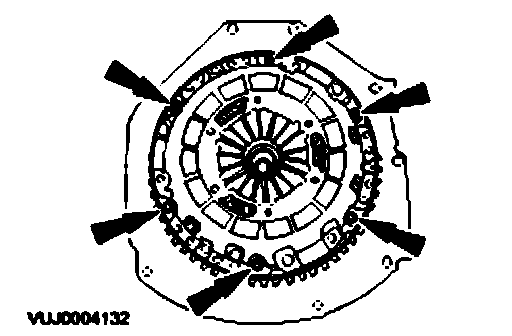

Locate the clutch pressure plate on the flywheel dowels and tighten the bolts progressively in a diagonal sequence.

Tighten bolts to 25 Nm.
