Camshaft, Engine

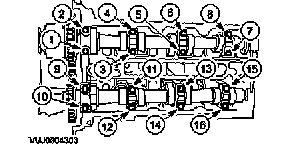

Camshaft bearing caps retaining bolts
10 Nm (7 ft. lbs.)
Camshaft lobe lift intake
9.367
Camshaft lobe lift exhaust
9.461 mm
Camshaft end play
0.150-0.0.070 mm
Camshaft journal to cylinder head bearing
surface clearance diameter
0.076-0.025 mm
Camshaft journal diameter standard runout limit
0.040 mm
Camshaft journal diameter standard out of round
0.013 mm
