Battery Cable: Service and Repair



86.15.32

Battery Cables

Removal

1. Remove the battery.

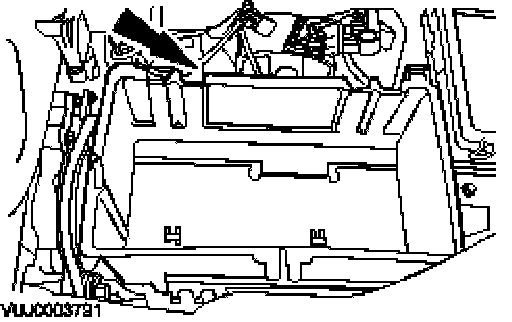

2. Remove the battery tray.







3. Disconnect the battery ground cable.

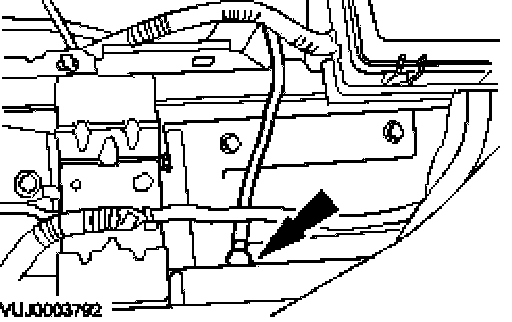

4. Remove the battery ground cable.

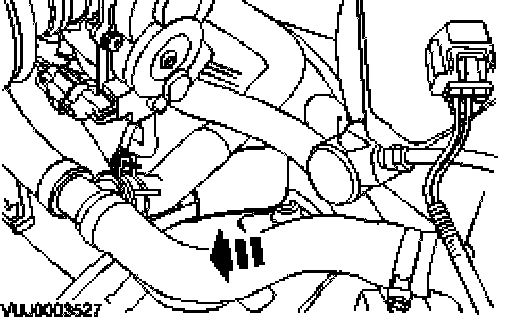

5. Detach the battery to starter motor solenoid cable cover.

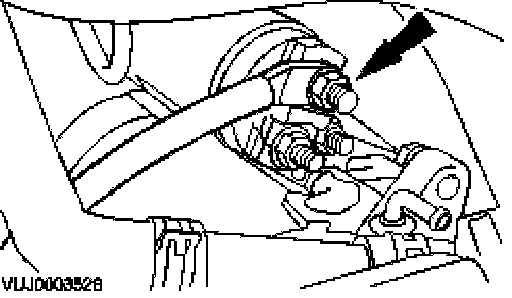

6. Remove the battery to starter motor solenoid cable.

Installation
1. To install, reverse the removal procedure.







2. Install the supply cable.
- Tighten to 12 Nm.







3. Tighten to 25 Nm.







4. Tighten to 25 Nm.
