Procedures
Transaxle Draining and Filling 1.
Raise and support the vehicle.
2.

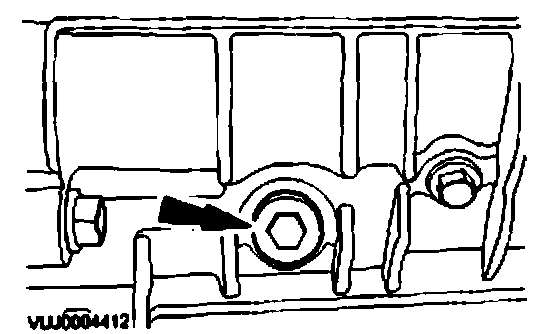

Remove the drain plug.
3.

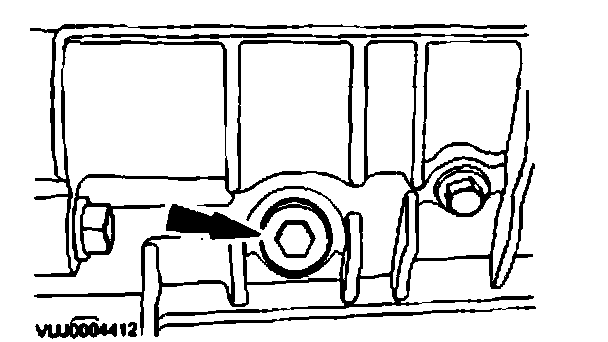

Install the drain plug.
4.

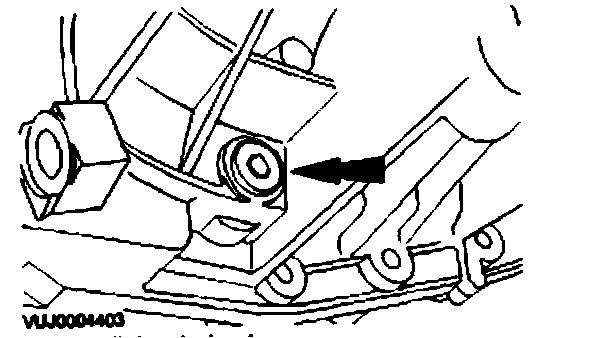

Remove the fill plug.
5.
Fill the transaxle to
0.5 mm (0.02 inch) below the lower edge of the fill plug bore.
6.

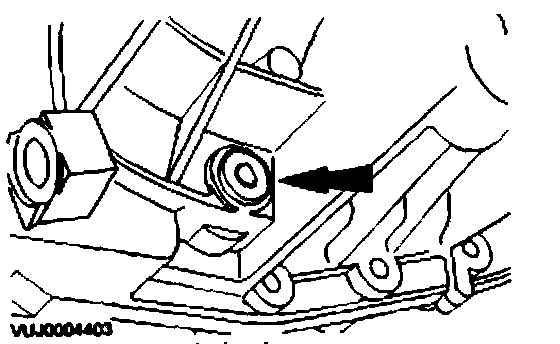

Install the fill plug.
^
Tighten to
45 Nm.
7.
Lower the vehicle.
