Washer Fluid Level Switch: Service and Repair
Reservoir fluid level 84.10.17SwitchRemoval 1.
Remove the wheel and tire.
2.
Detach the wheel arch liner.
3.
Remove the reservoir fluid level switch.

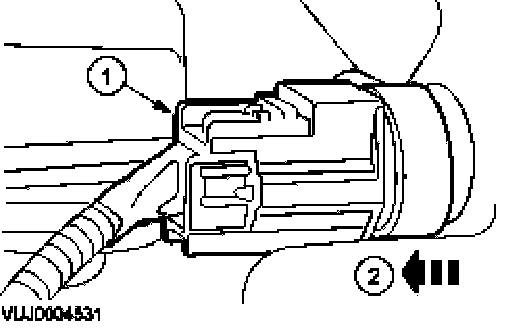

1.
Disconnect the reservoir fluid level electrical connector.
2.
Remove the reservoir fluid level switch.
Installation 1.
To install, reverse the removal procedure.
