Wiper Arm: Service and Repair

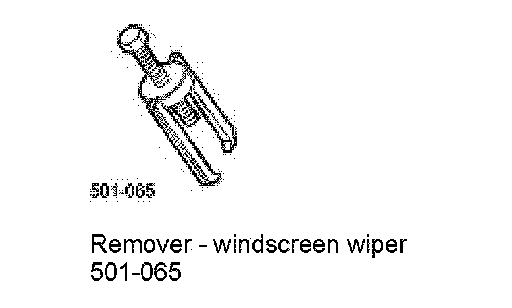

84.15.01Wiper Pivot ArmSpecial Service ToolsRemoval 1.

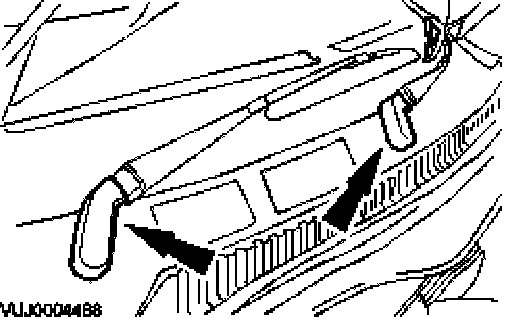

Remove the
wiper arm nut covers
2.

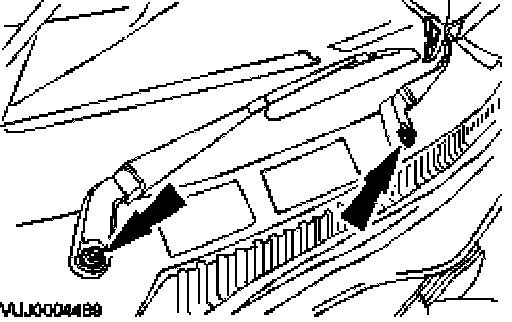

Remove the
wiper arm nuts.
3.

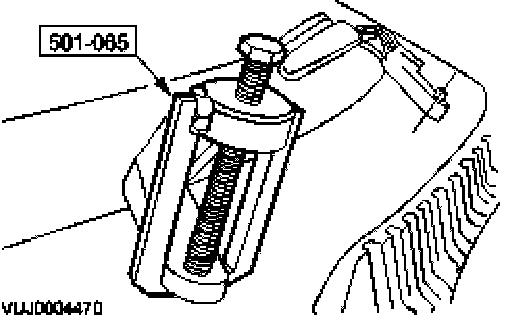

Using the special tool, detach the
wiper arms.
4.

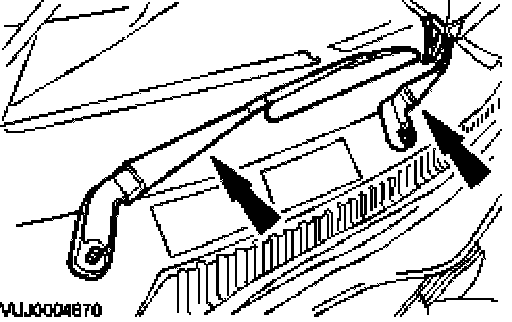

Remove the
wiper armsInstallation 1.
To install, reverse the removal procedure.
-
Tighten to
17 Nm.
