Multifunction Voice Activated Module



86.80.40

Multifunction Voice Activated Module

Removal

1. Prior to removal of the module, upload module configuration information to the Jaguar approved diagnostic system. This information needs to be downloaded into the new module once installed.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

2. Disconnect the battery ground cable.

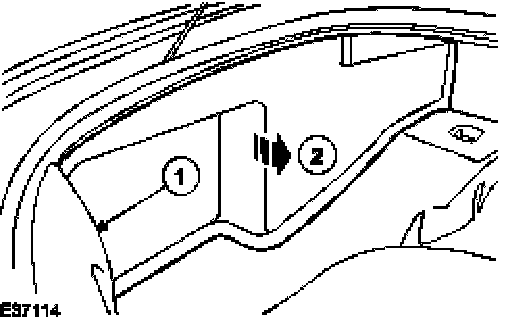

3. Remove the left-hand luggage compartment side trim panel.
- Remove the luggage compartment side trim retaining clip.
- Remove the luggage compartment side trim panel.

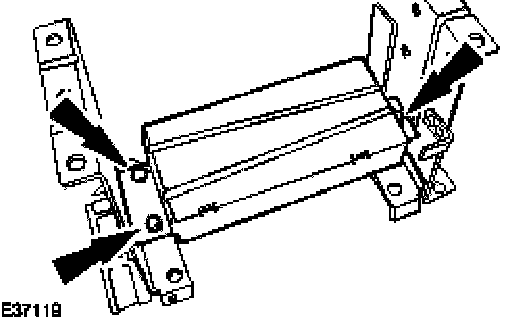

4. Detach the module mounting bracket.

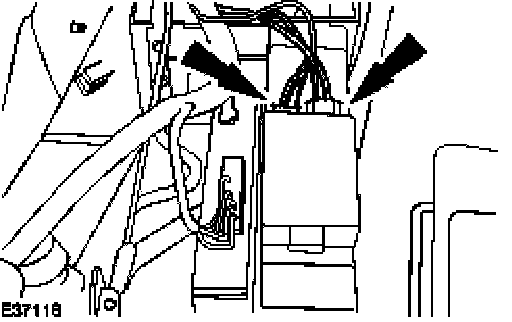

5. Disconnect the CD changer electrical connectors.

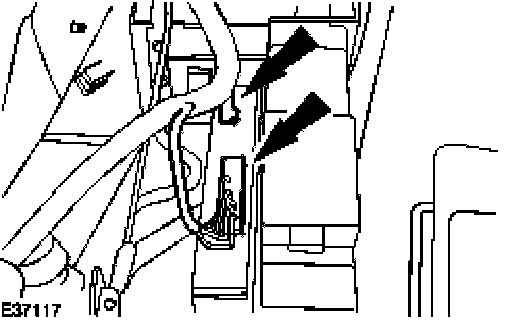

6. Disconnect the multifunction voice activated module electrical connectors.

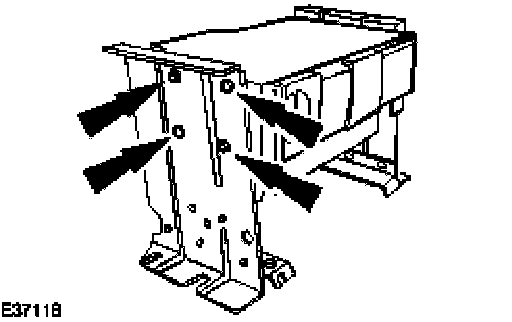

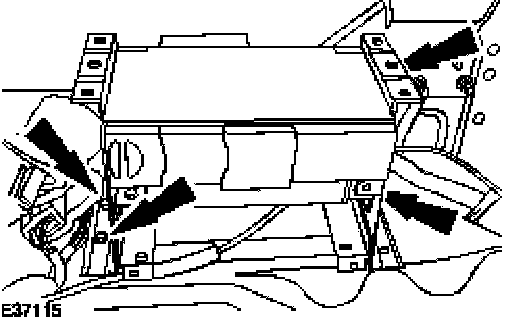

7. Remove the CD changer retaining bolts.
- Remove the CD changer.

NOTE: Left-hand shown, right-hand similar.







8. Remove the multifunction voice activated module.

Installation







1. To install, reverse the removal procedure.
- Tighten to 8 Nm.

2. After installation of the module, download module configuration information to the new module.







3. Tighten to 6 Nm.

NOTE: Left-hand shown, right-hand similar.







4. Tighten to 10 Nm.
