Cruise Control Module: Service and Repair

Speed Control Module

Removal
1. Disconnect the battery ground cable.
2. Remove the radiator splash shield.






3. Disconnect the speed control module electrical connector.

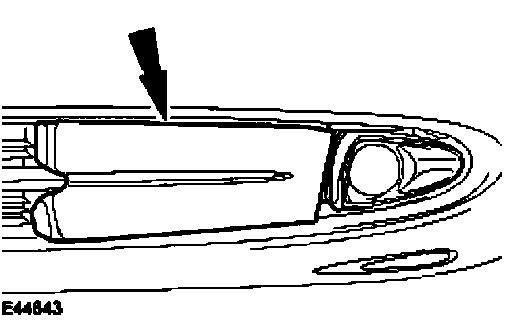

4. Remove the left-hand front bumper access cover.

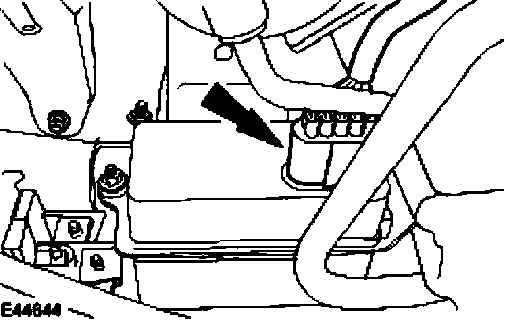

5. Remove the speed control module.

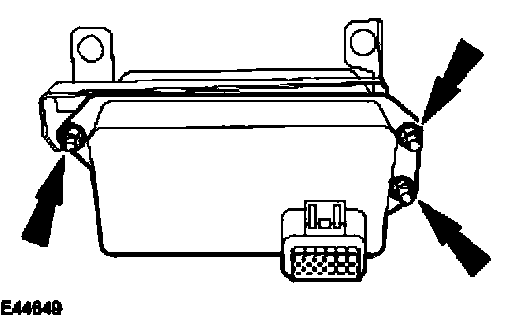

- Remove the bolts






6. Remove the speed control module retaining bracket.

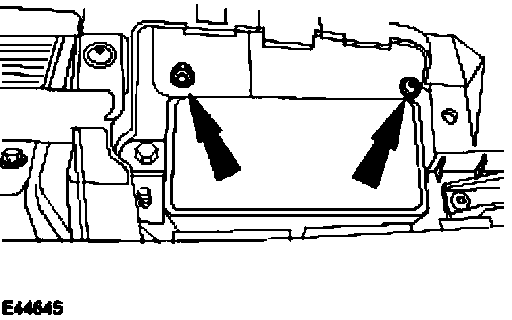

- Remove the nuts.

Installation






1. Install the speed control module retaining bracket.
- Install the nuts.

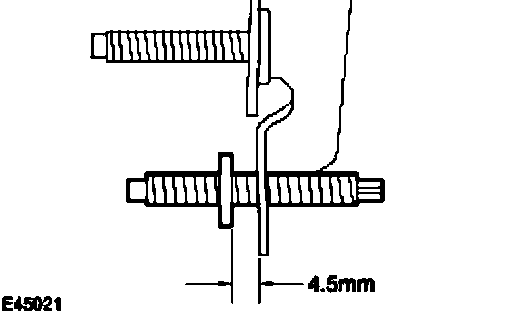

2. Adjust the speed control module levelling bolt shoulder to mounting bracket clearance to 4.5 mm.






3. Install the speed control module.
- Tighten to 5 Nm.






4. Connect the speed control module electrical connector.
5. Install the radiator splash shield.
6. Connect the battery ground cable.
7. Check and adjust the speed control module levelling.






8. Install the left-hand front bumper access cover.
9. Initialize the system. For additional information, refer to the Jaguar approved diagnostic system.
