Control Assembly: Service and Repair



82.20.07

Climate Control Assembly

Removal

1. Disconnect the battery ground cable.

NOTE: When the battery is disconnected and reconnected all previous panel settings and fault codes will be lost. It is necessary to record any non-standard settings or fault codes before battery disconnection to prevent customer complaint and carry out correct diagnosis.

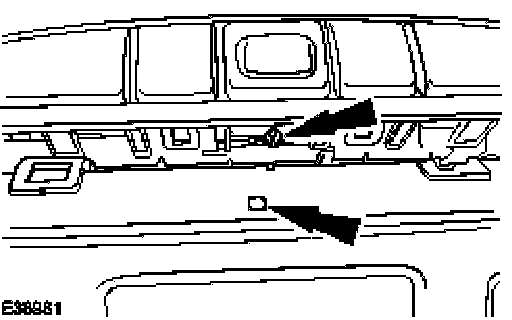

2. Remove the instrument panel console.

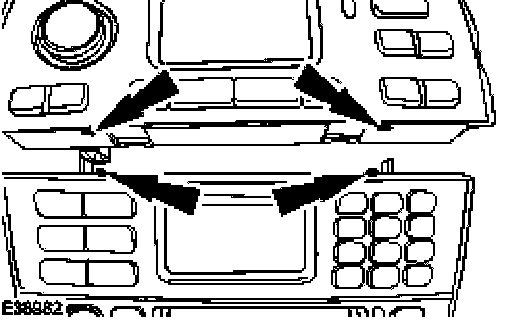

3. Remove the center console switch assembly.

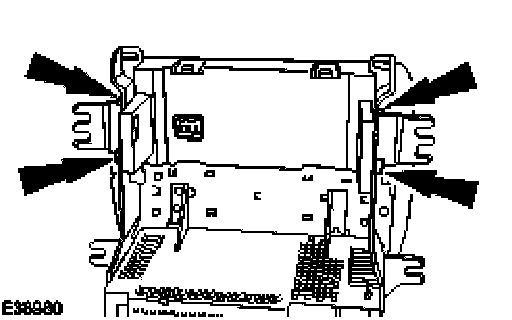

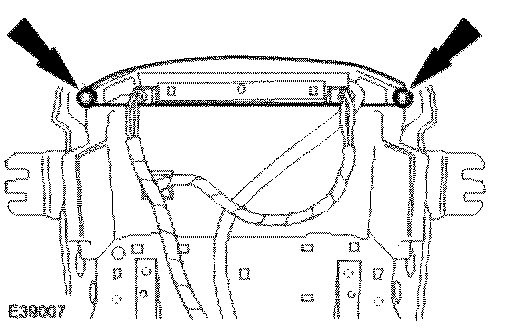

4. Remove the climate control assembly.

Installation
1. To install, reverse the removal procedure.







2. Make sure the climate control assembly is correctly located to the audio unit.







3. Make sure the center console switch assembly is correctly located to the climate control assembly.
