Front Toe Adjustment
Front Toe Adjustment 1411701. Start the engine and center the steering wheel.
2. Turn the engine off, and hold the steering wheel in the 'straight ahead' position by attaching a rigid link from the steering wheel to the brake pedal.
3. Check the toe settings. Follow the equipment manufacturers instructions.

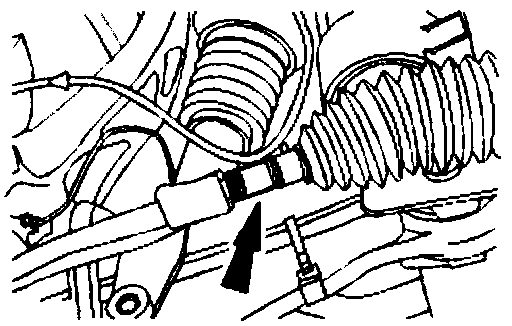

4. NOTE: Left-hand shown, right-hand similar.
Loosen the be-rod end lock nut
Clean and lubricate the lock nut and be-rod threads.
5. CAUTION: Do not allow the steering gear boot to twist when the tie-rod is rotated.
Failure to follow this instruction may result in damage to the vehicle.

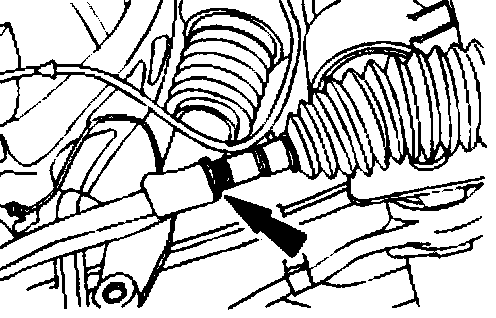

NOTE: Left-hand shown, right-hand similar.
Rotate the be-rod to adjust the toe setting.

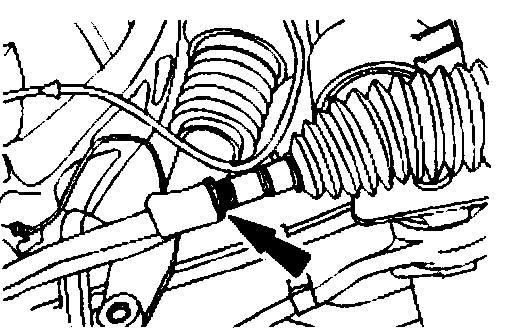

6. NOTE: Make sure the be-rod does not rotate.
NOTE: Left-hand shown, right-hand similar.
Tighten the tie-rod end lock nut
1. Tighten to 100 Nm.
7. Recheck the toe settings. Follow the equipment manufacturers instructions.
