Fuel Filter: Service and Repair



Fuel Filter

Removal
1. Disconnect the battery ground cable.
2. De-pressurize the fuel system.
3. Raise and support the vehicle.
4. Remove the under engine air deflector tray.






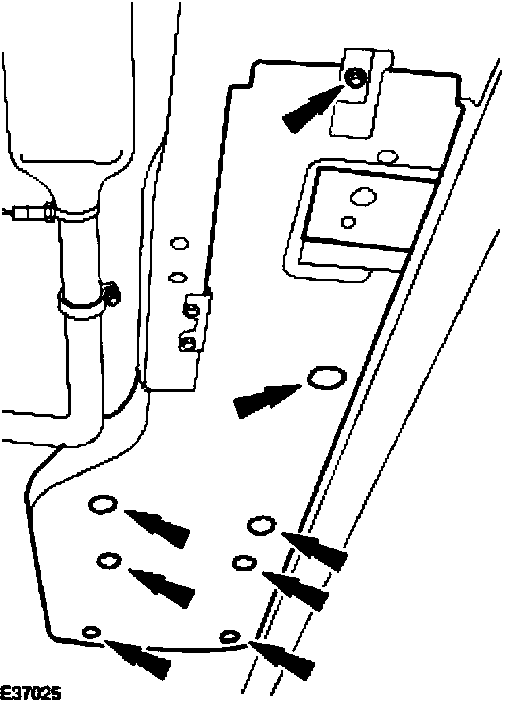

5. Detach the left-hand splash shield.

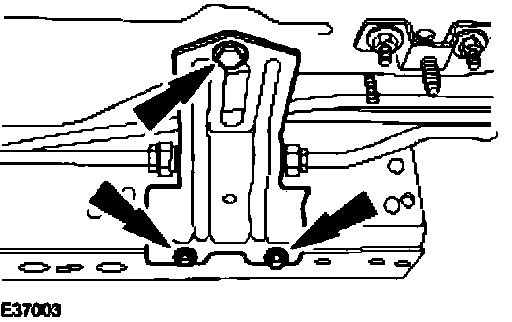

6. Detach the fuel filter retaining bracket.

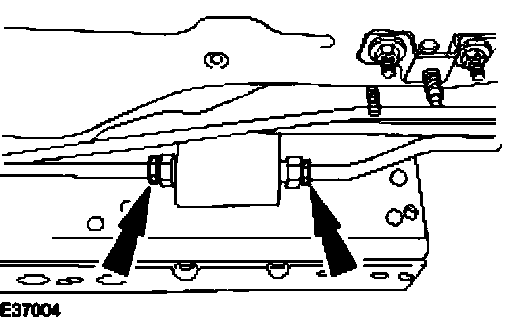

7. Remove the fuel filter.
- Remove and discard the O-ring seals.

Installation






1. To install, reverse the removal procedure.
- Install new O-ring seals.
- Tighten to 30 Nm.

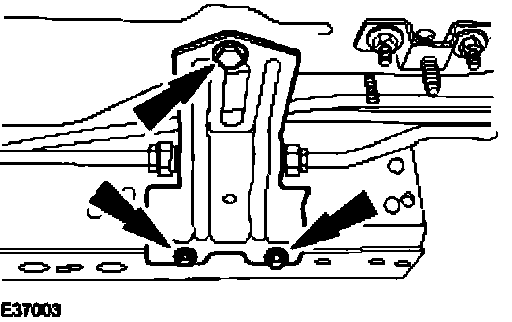

2. Tighten to 5 Nm.
