Air Temperature Sensor ( Ambient / Intake ): Service and Repair

Intake Air Temperature (IAT) Sensor

Vehicles With: Supercharger 296220

Removal

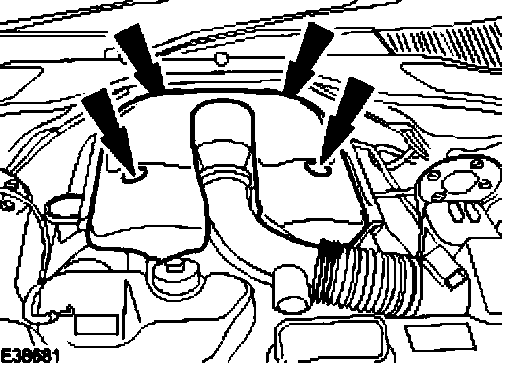

1. Remove the engine cover.

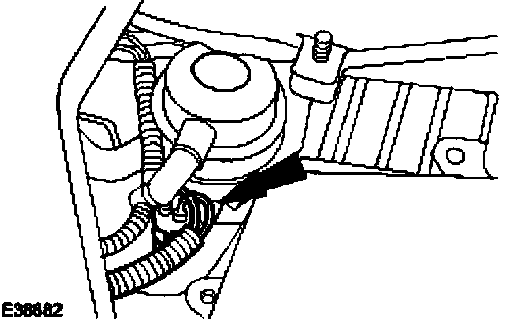

2. Disconnect the intake air temperature (IAT) sensor electrical connector.

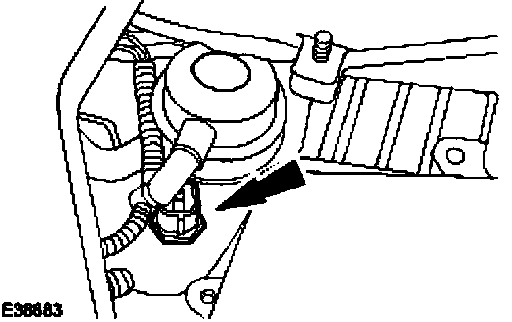

3. Remove the IAT sensor.
- Remove and discard the IAT sensor sealing washer.

Installation

1. Install a new IAT sensor sealing washer.
- To install, reverse the removal procedure.
- Tighten to 35 Nm.
