Engine Coolant Temperature (ECT) Sensor - 211900

Engine Coolant Temperature (ECT) Sensor

Removal

1. Release the cooling system pressure.
- Remove the coolant expansion tank pressure cap.

2. Remove the air cleaner outlet pipe.

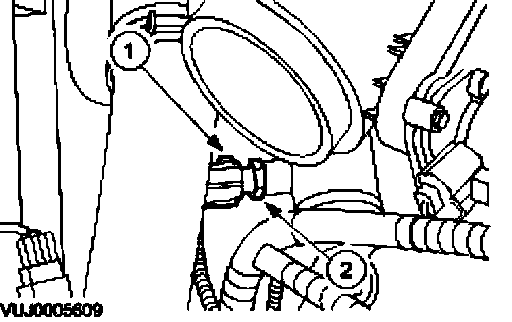

3. Remove the engine coolant temperature (ECT) sensor electrical connector.
- Disconnect the ECT sensor electrical connector.

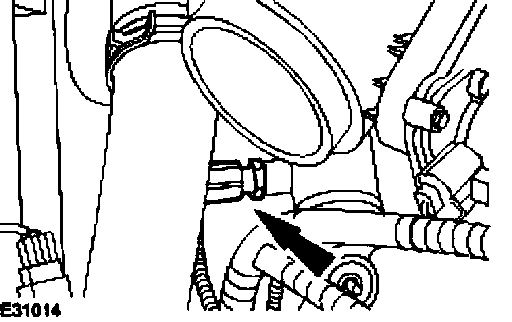

- Remove the ECT sensor.
- Remove and discard the ECT sensor sealing washer.

Installation






1. To install, reverse the removal procedure.
- Install a new ECT sensor sealing washer.
- Tighten to 17 Nm.

2. Fill the cooling system up to the MAX mark on the coolant expansion tank.
