Crankshaft Position Sensor: Service and Repair
Crankshaft Position (CKP) SensorRemoval 1.
Remove the air deflector.
2.

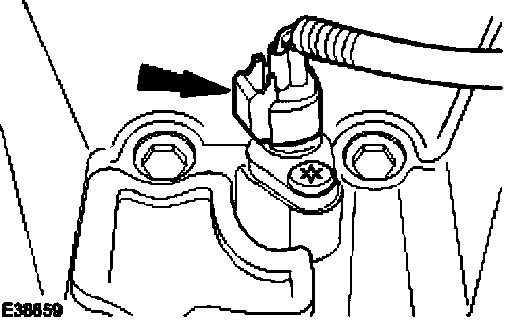

Disconnect the crankshaft position (CKP) sensor electrical connector.
3.

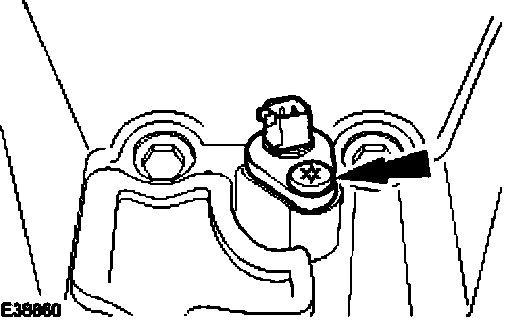

Remove the CKP sensor.
Installation 1.
To install, reverse removal procedure.
-
Tighten to
7 Nm.
