4.2L Manifold Absolute Pressure (MAP) Sensor
3.5L/4.2L Manifold Absolute Pressure (MAP) SensorRemoval 1.
Remove the intake manifold.
2.

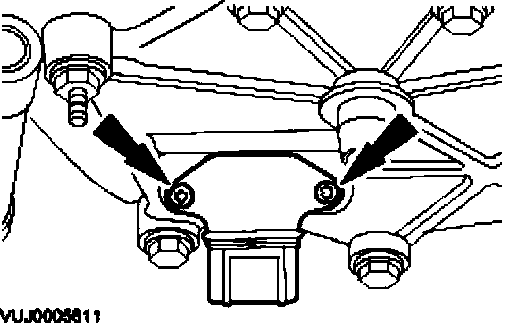

Remove the manifold absolute pressure (MAP) sensor.
Installation 1.
To install, reverse the removal procedure.
-
Tighten to
10 Nm.
