Negative: Service and Repair

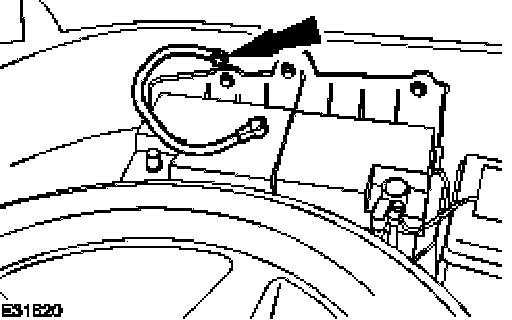

Battery Ground Cable
1. Disconnect the battery ground cable.







2. Remove the battery ground cable.

Installation







1. Install the battery ground cable.
- Tighten to 12 Nm.

2. Connect the battery ground cable.
