Ignition Coil: Service and Repair

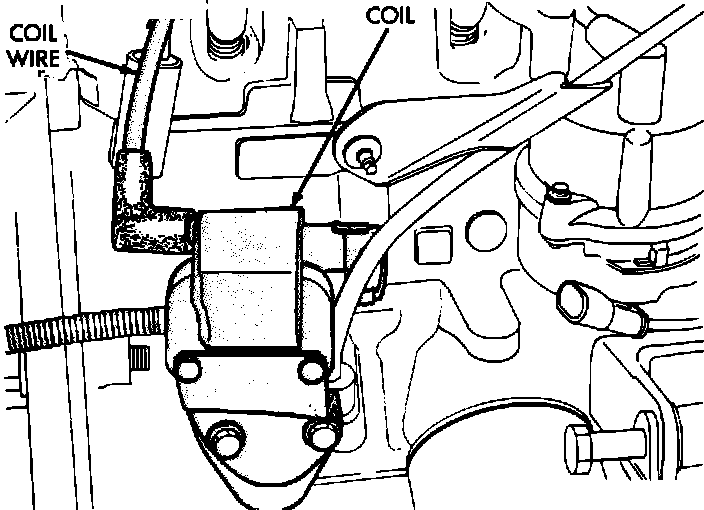

Ignition Coil Location:
REMOVAL 1.
Disconnect ignition coil cable from coil.
2.
Disconnect engine harness connector from ignition coil.
3.
Remove ignition coil mounting screws. Remove coil.
INSTALLATION 1.
Install ignition coil to bracket on cylinder block with mounting screws.
2.
Connect engine harness connector to coil.
3.
Connect ignition coil cable to ignition coil.
