Fuel Tank Skid Plate
FUEL TANK SKID PLATE REMOVAL 1.
Position a support under
skid plate.

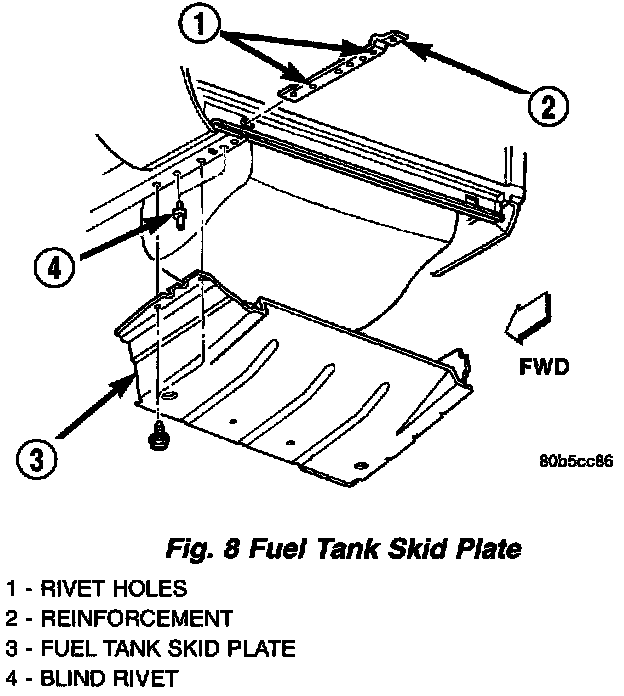

Fig. 8:
2.
Remove bolts that attach
skid plate to underbody side rails (Fig.8).
3.
Remove support and
skid plate from vehicle.
INSTALLATION 1.
Position and support
skid plate under fuel tank.
2.
Install bolts to attach
skid plate to underbody rails. Tighten bolts to
74 N.m (55 ft.lbs.) torque.
3.
Remove support from under
skid plate.
