Rocker Arms

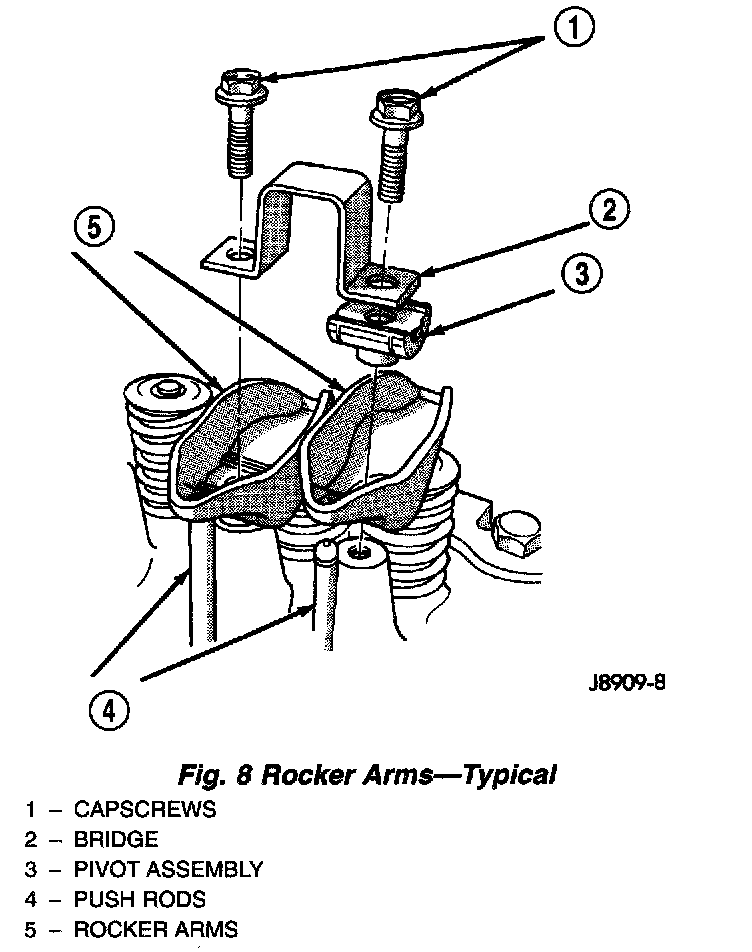

Fig. 8DESCRIPTION The rocker arms are made of stamped steel and have a operational ratio of
1.6:1.
OPERATION When the
push rods are forced upward by the
camshaft lobes the push rod presses upward on the rocker arms, the rocker arms pivot, forcing downward pressure on the valves forcing the valves to move downward and off from their seats.
