Vacuum Reservoir HVAC: Service and Repair

REMOVAL AND INSTALLATION
1. Remove the passenger side bumper end cap from the front bumper.

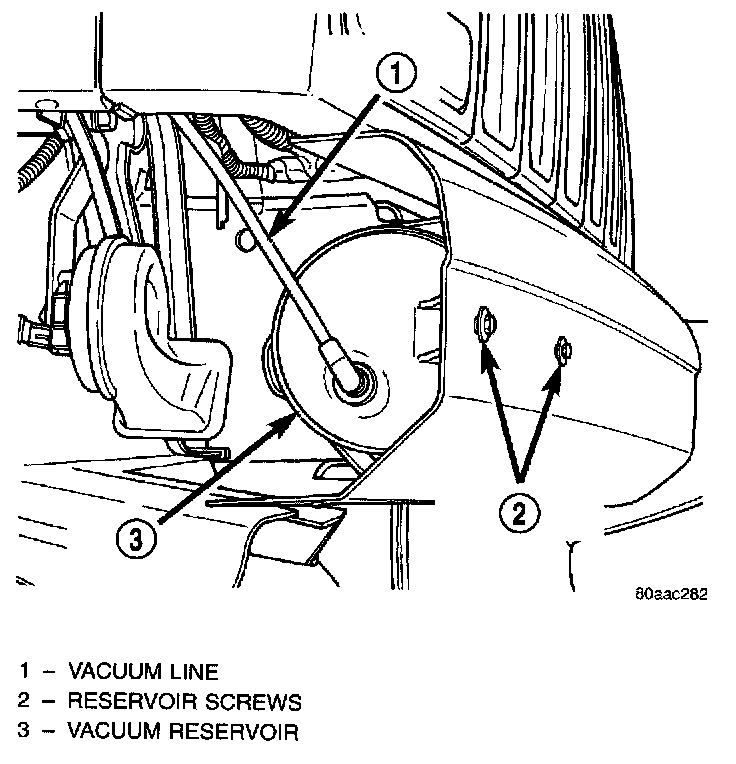

Vacuum Reservoir Remove/Install:

2. Unplug the vacuum supply line connector from the vacuum reservoir.
3. Remove the two screws that secure the vacuum reservoir to the front bumper.
4. Remove the vacuum reservoir from behind the front bumper.
5. Reverse the removal procedures to install. Tighten the mounting screws to 2.2 Nm (20 in. lbs.).
