Entering Diagnostic Tests

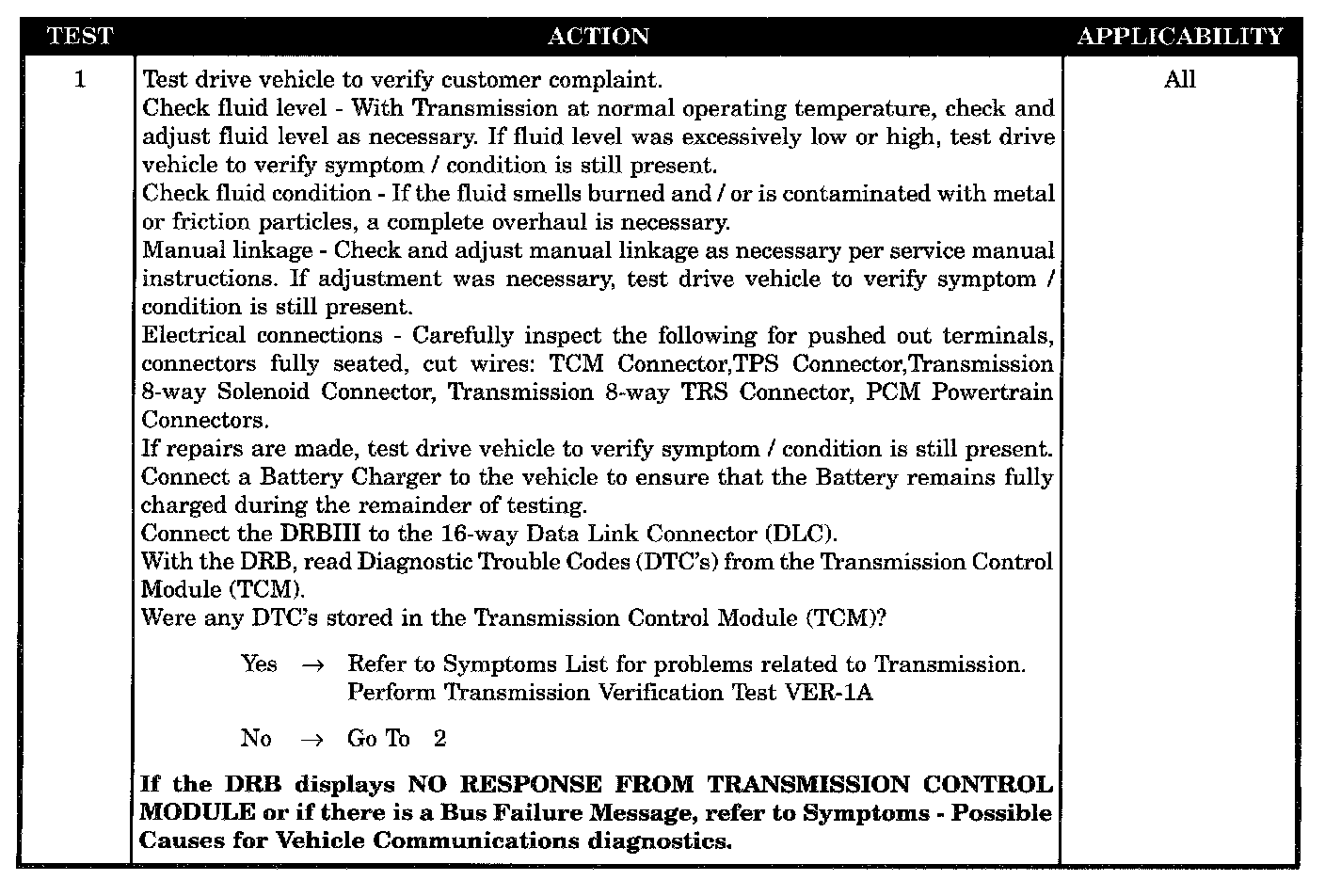

Test 1:




Test 2 Through 8:




Test 9 Through 13:




Test 14 Through 17:






SYMPTOM:
ENTERING DIAGNOSTIC TESTS

POSSIBLE CAUSES
TRANSMISSION SLIPS IN REVERSE
MANUAL LINKAGE OUT OF ADJUSTMENT
TPS DEFECTIVE
BRAKE PEDAL / LINKAGE BIND
BRAKE SW SENSE CKT OPEN
BRAKE SWITCH - CONTACTS OPEN
BRAKE SWITCH GROUND CKT OPEN
BRAKE SWITCH SENSE CIRCUIT SHORTED TO GROUND
BRAKE SWITCH SHORTED
ENTERING DIAGNOSTIC TESTS
TCM- BRAKE SW SENSE SUPPLY OPEN
TCM- BRAKE SWITCH SENSE SHORTED
TCM- NO RESPONSE TO BRAKE SWITCH
