Front
REMOVAL1. Raise and support the vehicle.

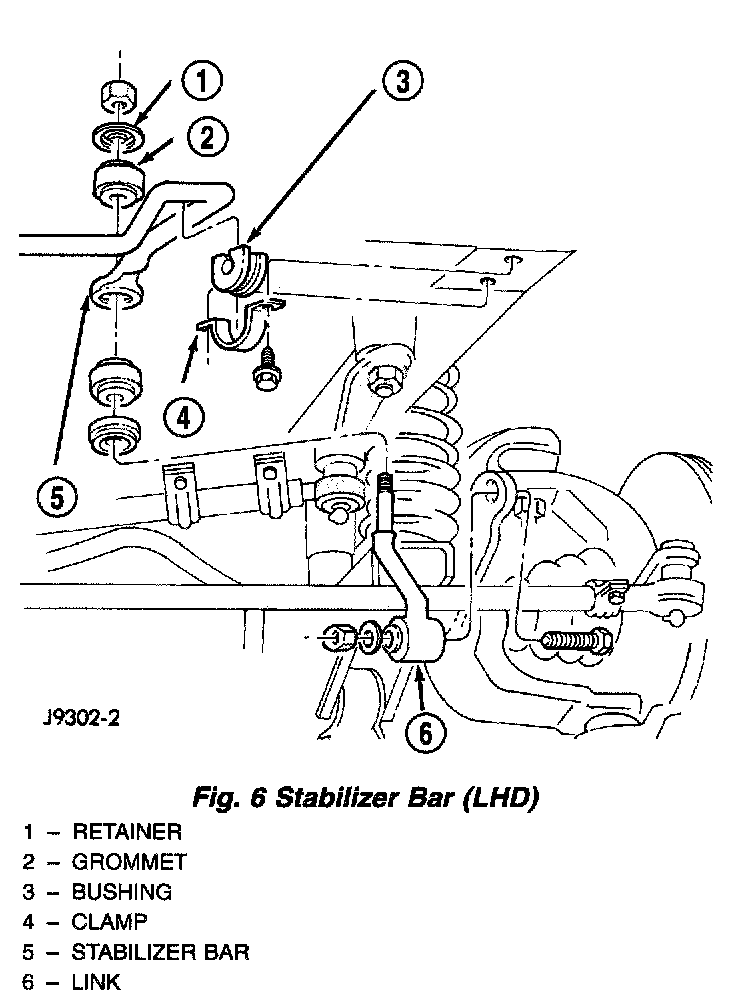

Fig. 6:
2. Remove nuts, retainers and grommets from the links at the stabilizer bar.
3. Remove the links mounting nuts and bolts from the axle brackets.
4. Remove the stabilizer bar clamps from the body rails. Remove the stabilizer bar.
INSTALLATION
1. Inspect stabilizer bar bushings. Replace bushings if cracked, cut, distorted, or worn.
2. Position the stabilizer bar on the body rail and install the bushings and clamps. Ensure the bar is centered with equal spacing on both sides. Tighten the bolts to 75 Nm (40 ft. lbs.).
3. Install the links and grommets onto the stabilizer bar and axle brackets.
4. Tighten the link nuts at the axle bracket to 95 Nm (70 ft. lbs.).
5. Tighten the link nuts at the stabilizer bar to 36 Nm (27 ft. lbs.).
6. Remove the supports and lower the vehicle.
