Seat Temperature Switch: Service and Repair

WARNING: ON VEHICLES EQUIPPED WITH AIRBAGS, REFER TO AIR BAGS AND SEAT BELTS/AIR BAGS BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the center lower bezel from the instrument panel.

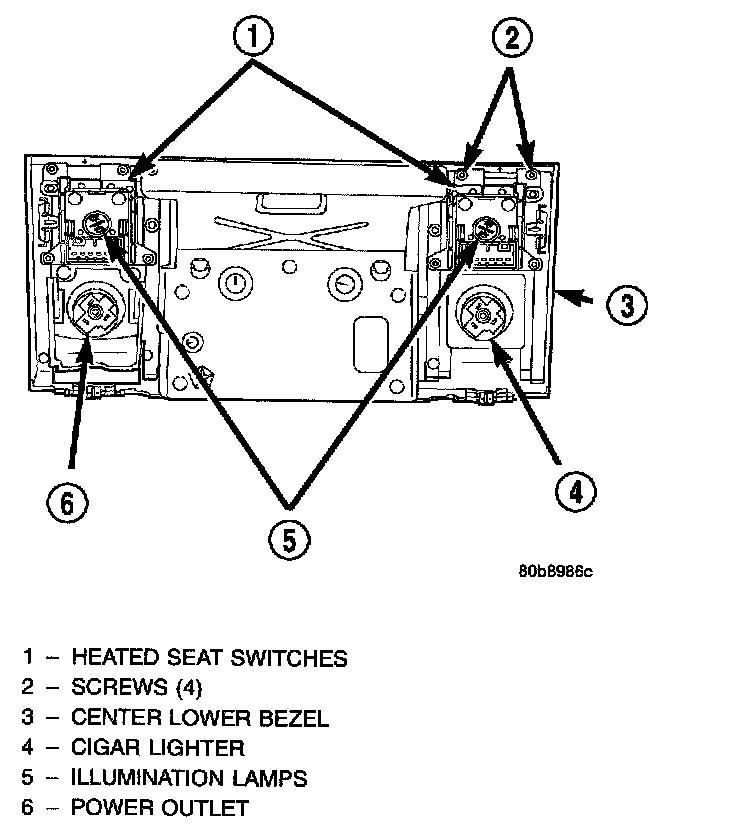

Heated Seat Switch Remove/Install:

3. Remove the four screws that secure the heated seat switch to the back of the instrument panel center lower bezel.
4. Remove the heated seat switch from the back of the instrument panel center lower bezel.

INSTALLATION
1. Position the heated seat switch onto the back of the instrument panel center lower bezel.
2. Install and tighten the four screws that secure the heated seat switch to the back of the instrument panel center lower bezel. Tighten the screws to 1.5 Nm (13 in. lbs.).
3. Install the center lower bezel onto the instrument panel.
4. Reconnect the battery negative cable.
