Front

REMOVAL
1. Raise and support vehicle.

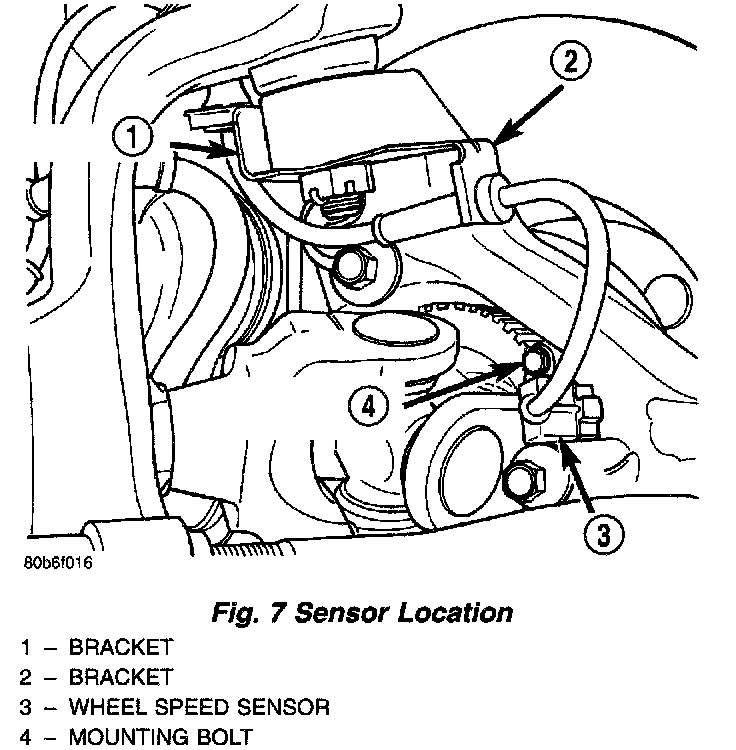

2. Remove front wheel sensor mounting bolt.
3. Remove the sensor from the steering knuckle.
4. Disengage sensor wire from the brackets on the steering knuckle.

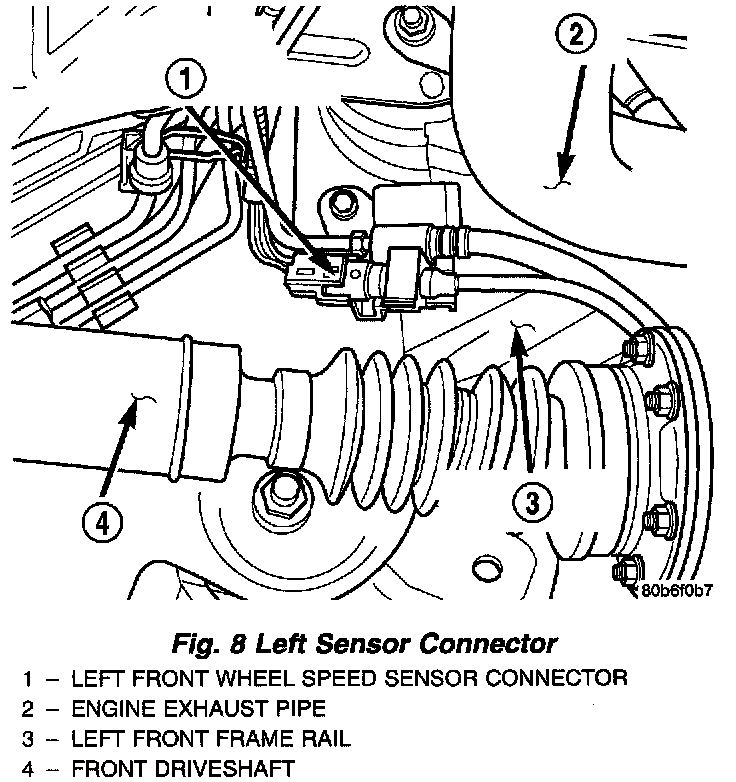

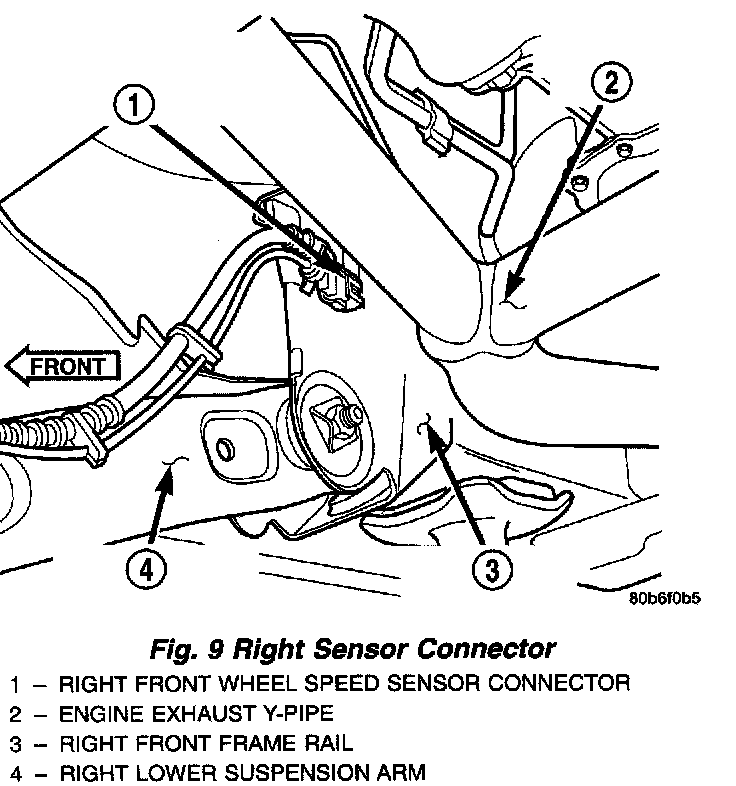

5. Disconnect the sensor from the sensor harness.
6. Remove sensor and wire.

INSTALLATION
1. Install the sensor on the steering knuckle.
2. Apply Mopar Lock N' Seal or Loctite (TM) 242 to sensor mounting bolt. Use new sensor bolt if original bolt is worn or damaged.
3. Install the sensor mounting bolt and tighten bolt to 12 - 14 Nm (106 - 124 inch lbs.).
4. Engage grommets on sensor wire to the steering knuckle brackets.
5. Connect sensor wire to harness connector.
6. Check sensor wire routing. Be sure wire is clear of all chassis components and is not twisted or kinked at any spot.
7. Remove support and lower vehicle.
