Electrical Diagrams

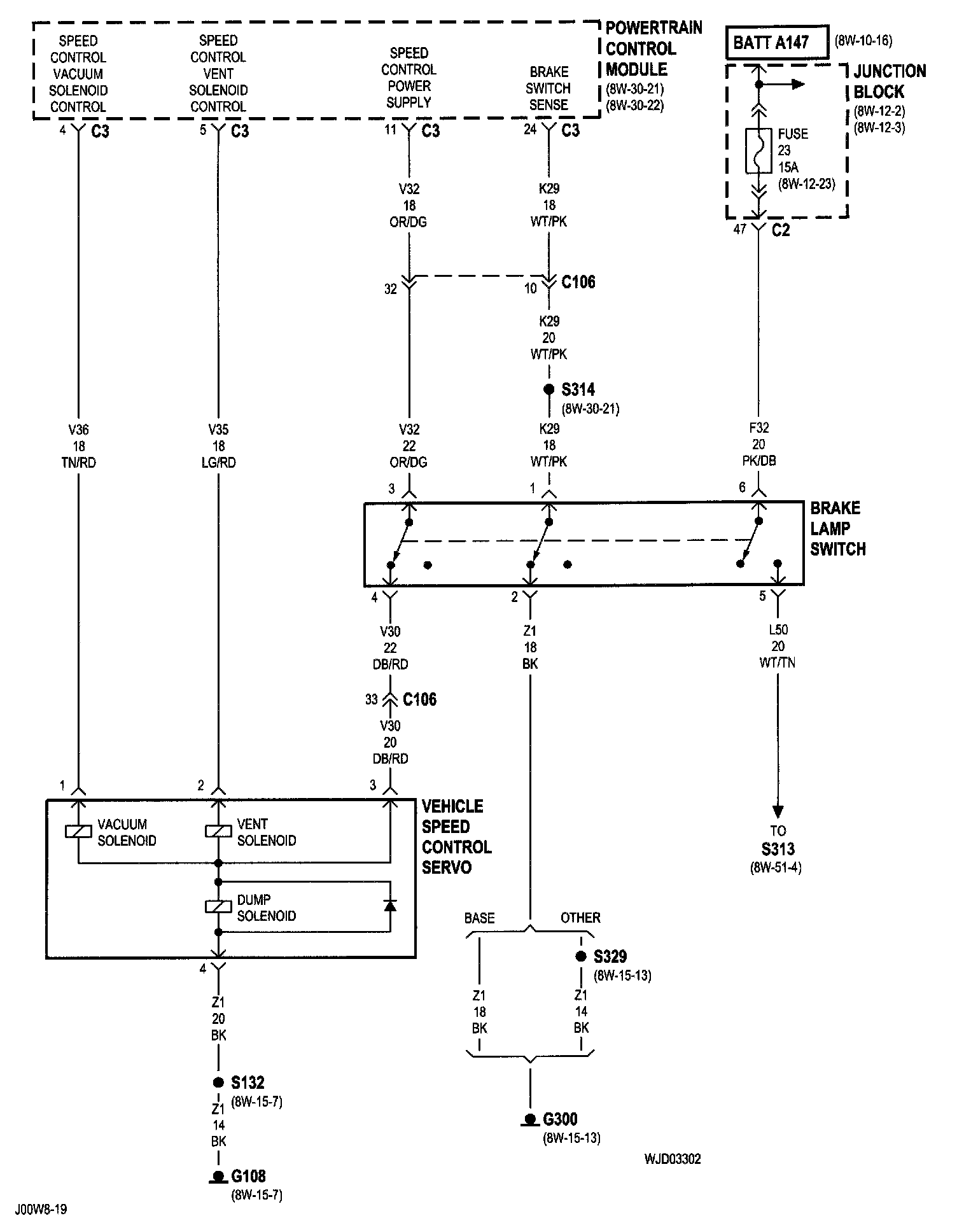

8w-33-2:
Brake Lamp Switch
Fuse 23 (JB)
G108
G300
Junction Block
Powertrain Control Module

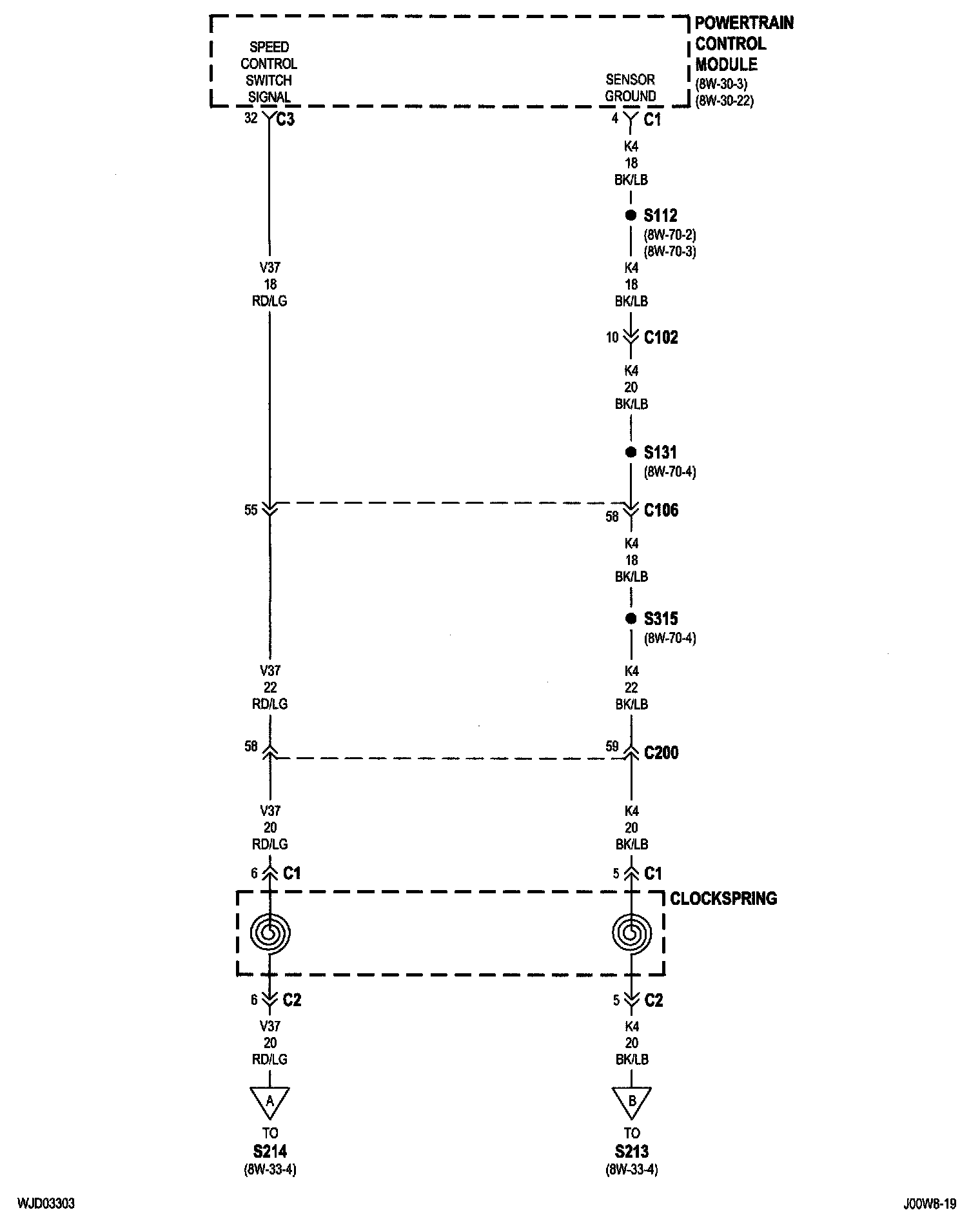

Vehicle Speed Control Servo 8w-33-3:
Clockspring
Powertrain Control Module
8w-33-4:
Cruise Switch No.1
Cruise Switch No.2
NOTE: To view sheets referred to in these diagrams, see
Complete Body and Chassis Diagrams Electrical Diagrams
