Automatic Transmission/Transaxle

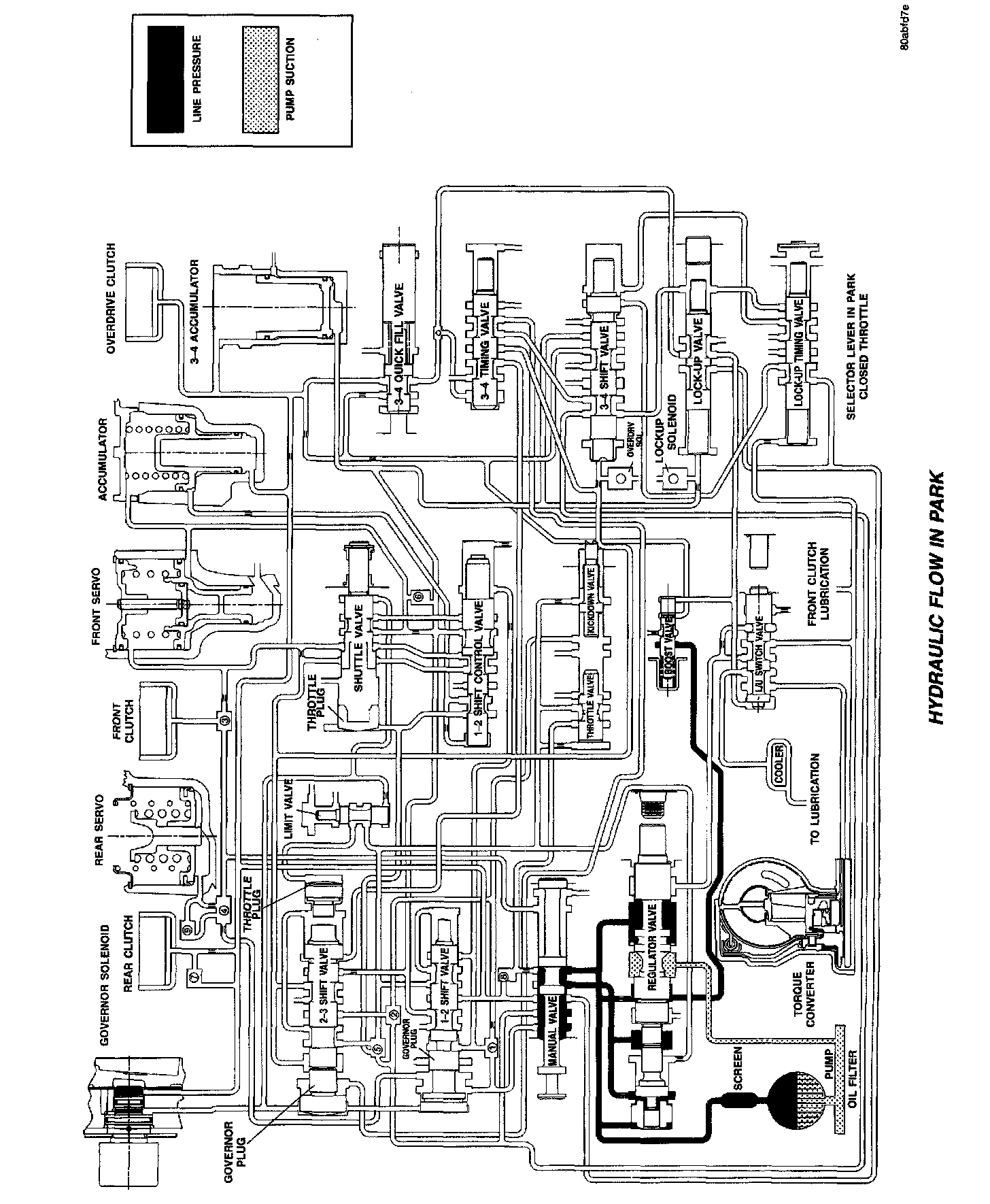

Hydraulic Flow In Park:

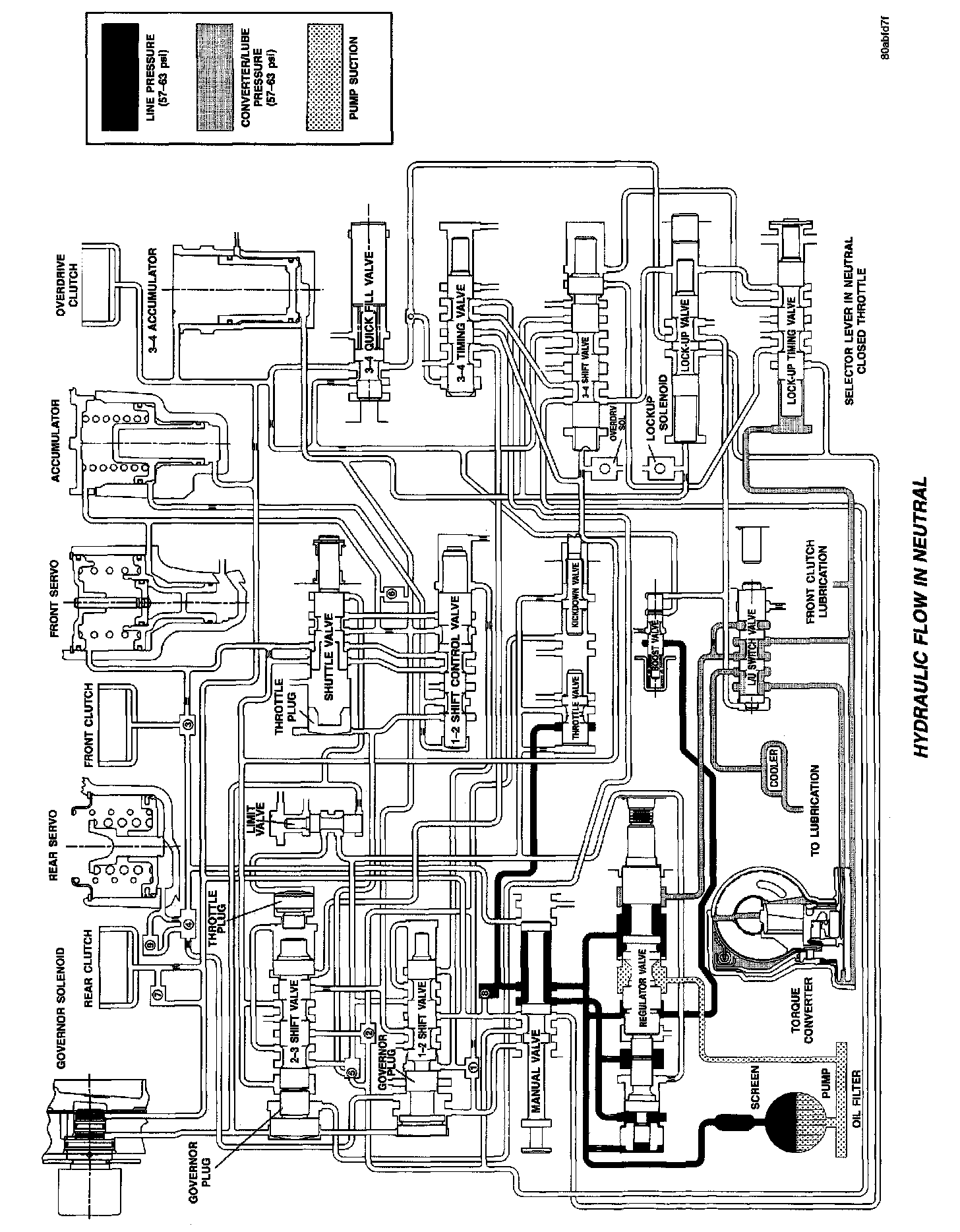

Hydraulic Flow In Neutral:

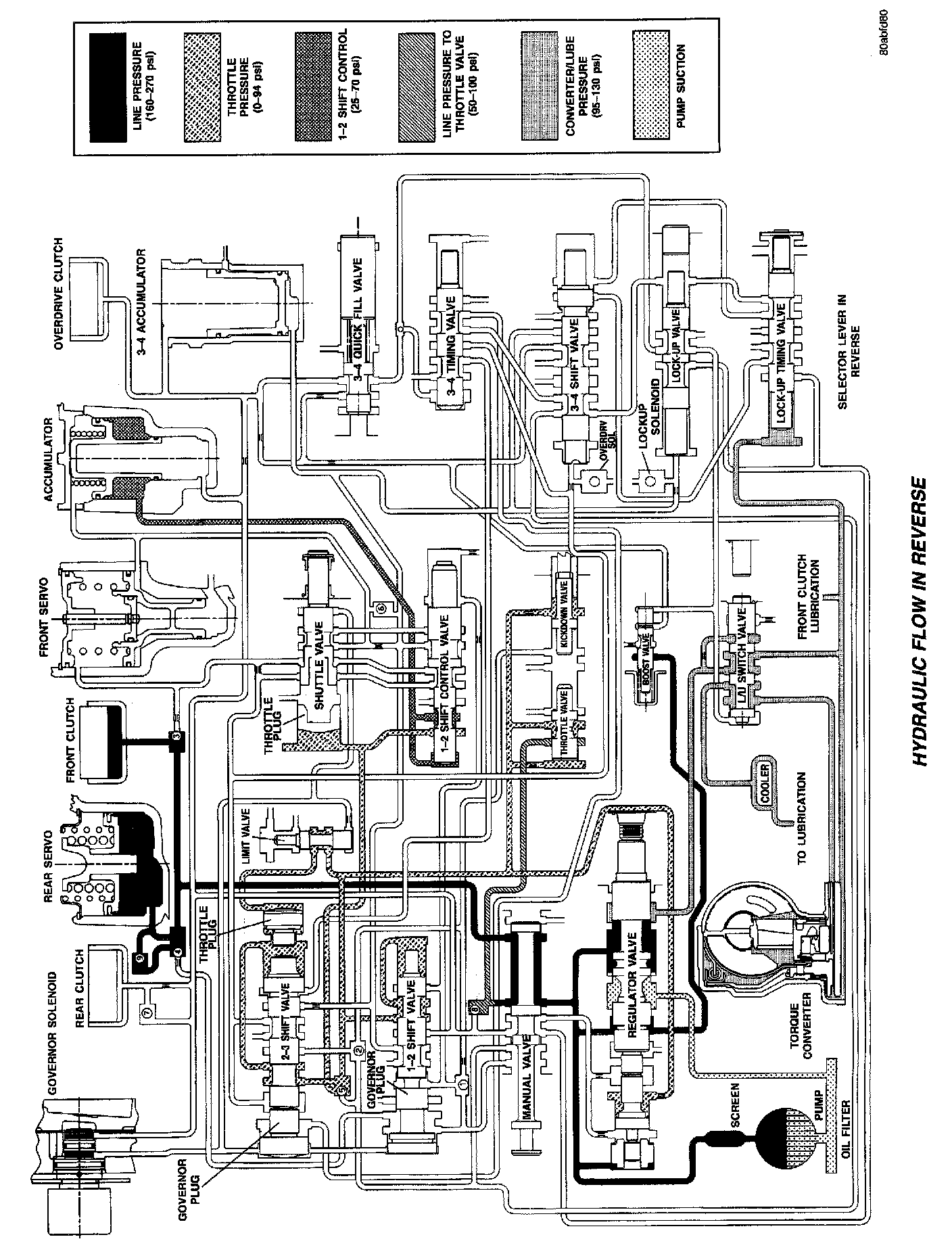

Hydraulic Flow In Reverse:

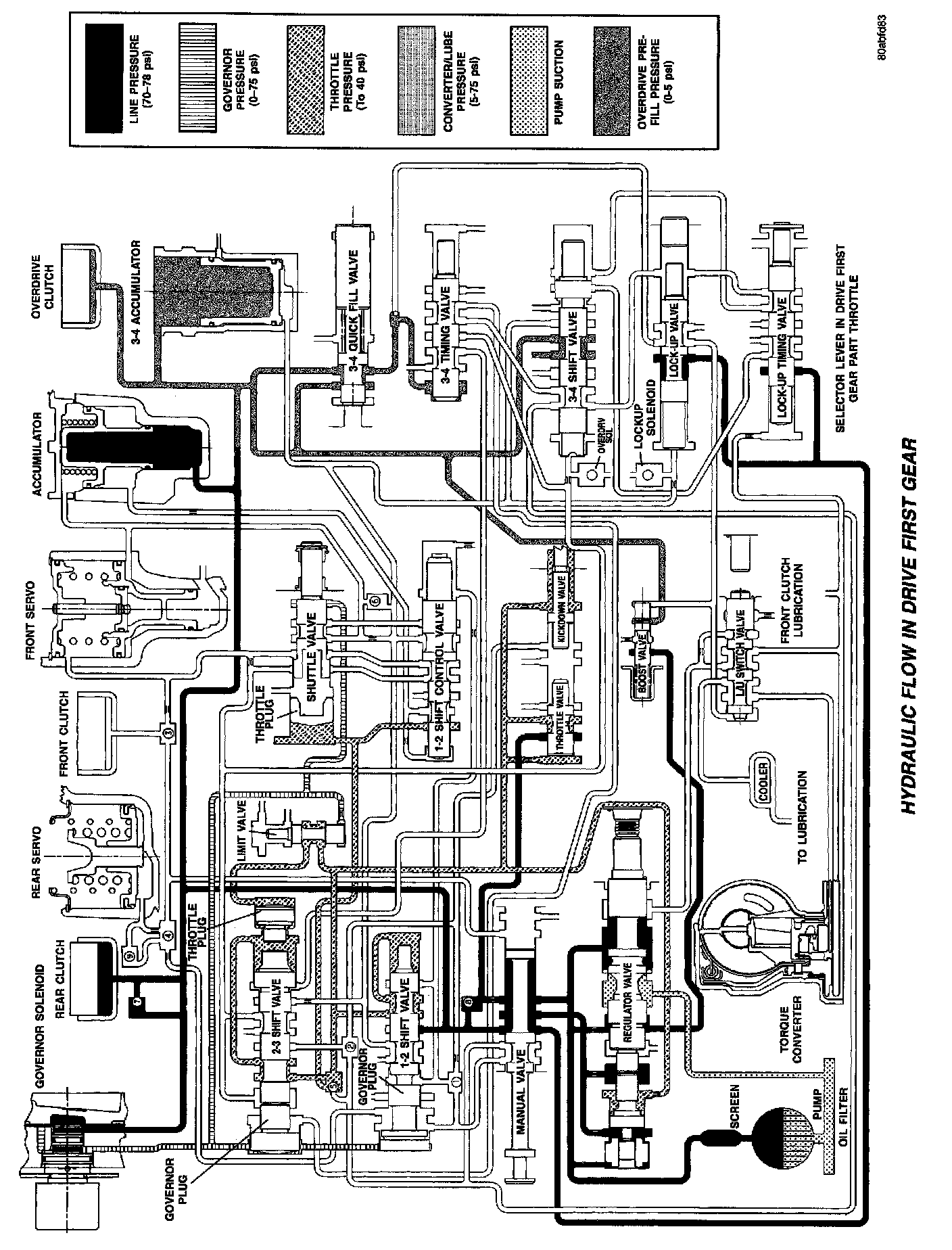

Hydraulic Flow In Drive First Gear:

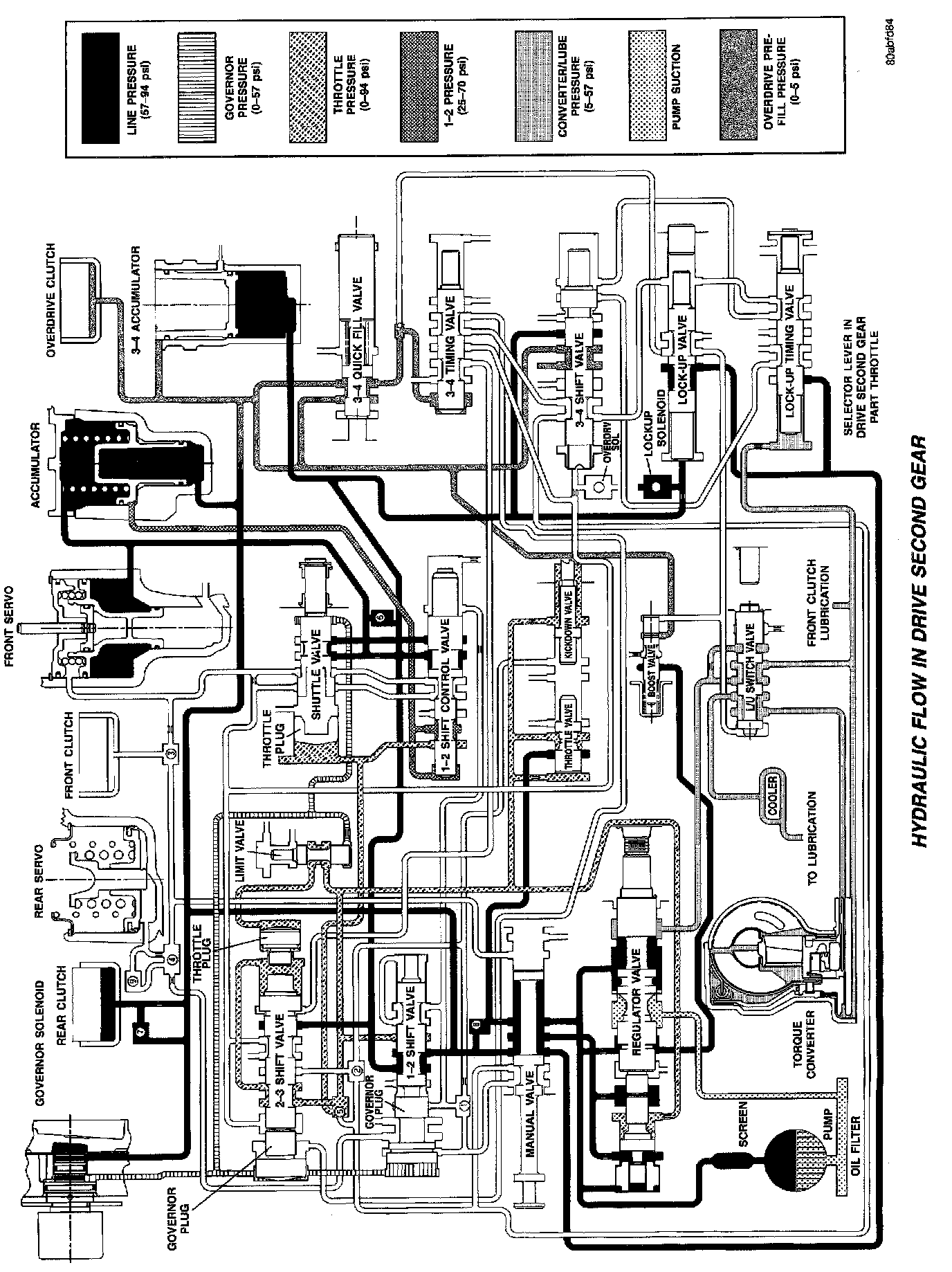

Hydraulic Flow In Drive Second Gear:

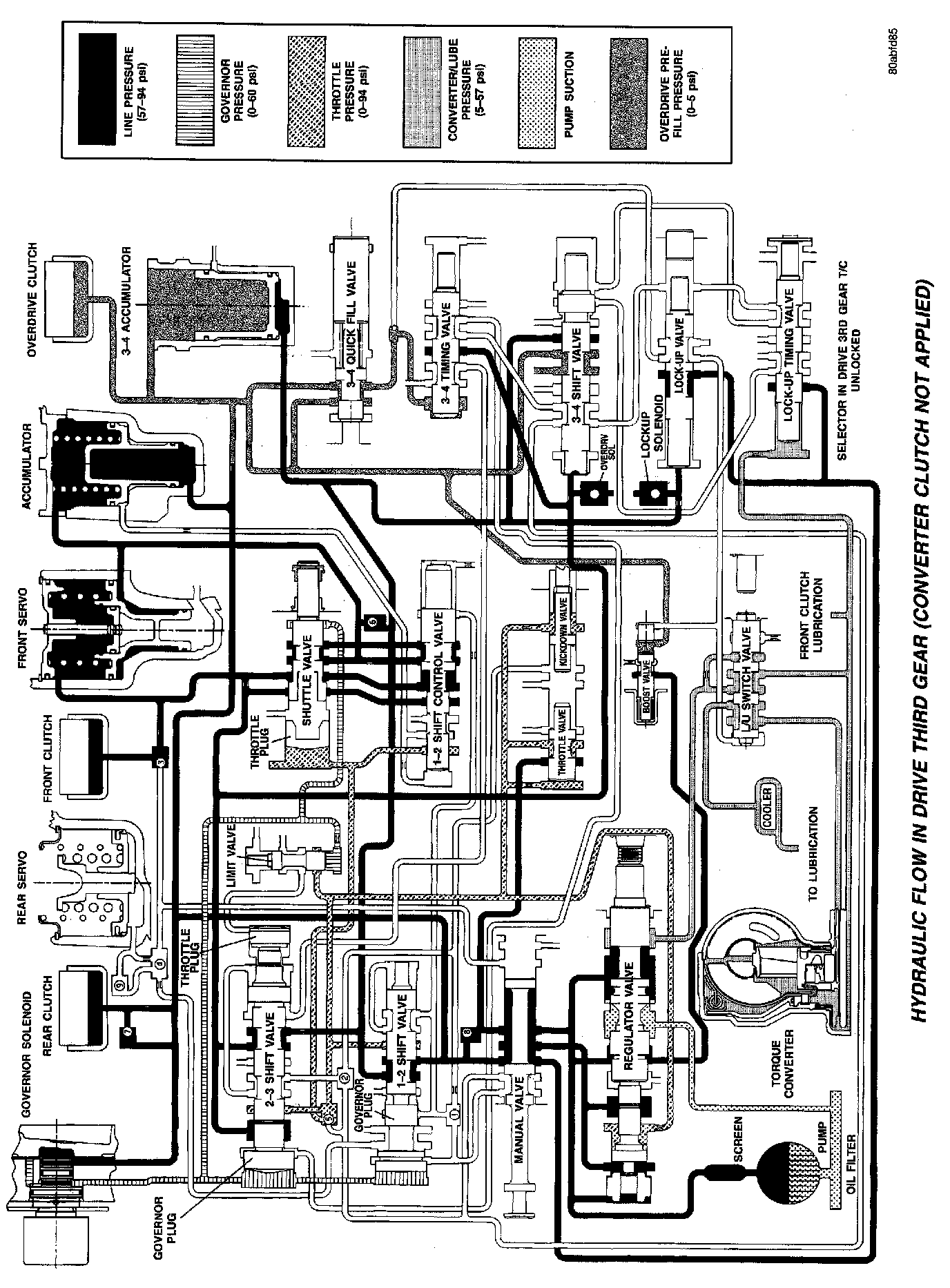

Hydraulic Flow In Drive Third Gear (Converter Clutch Not Applied):

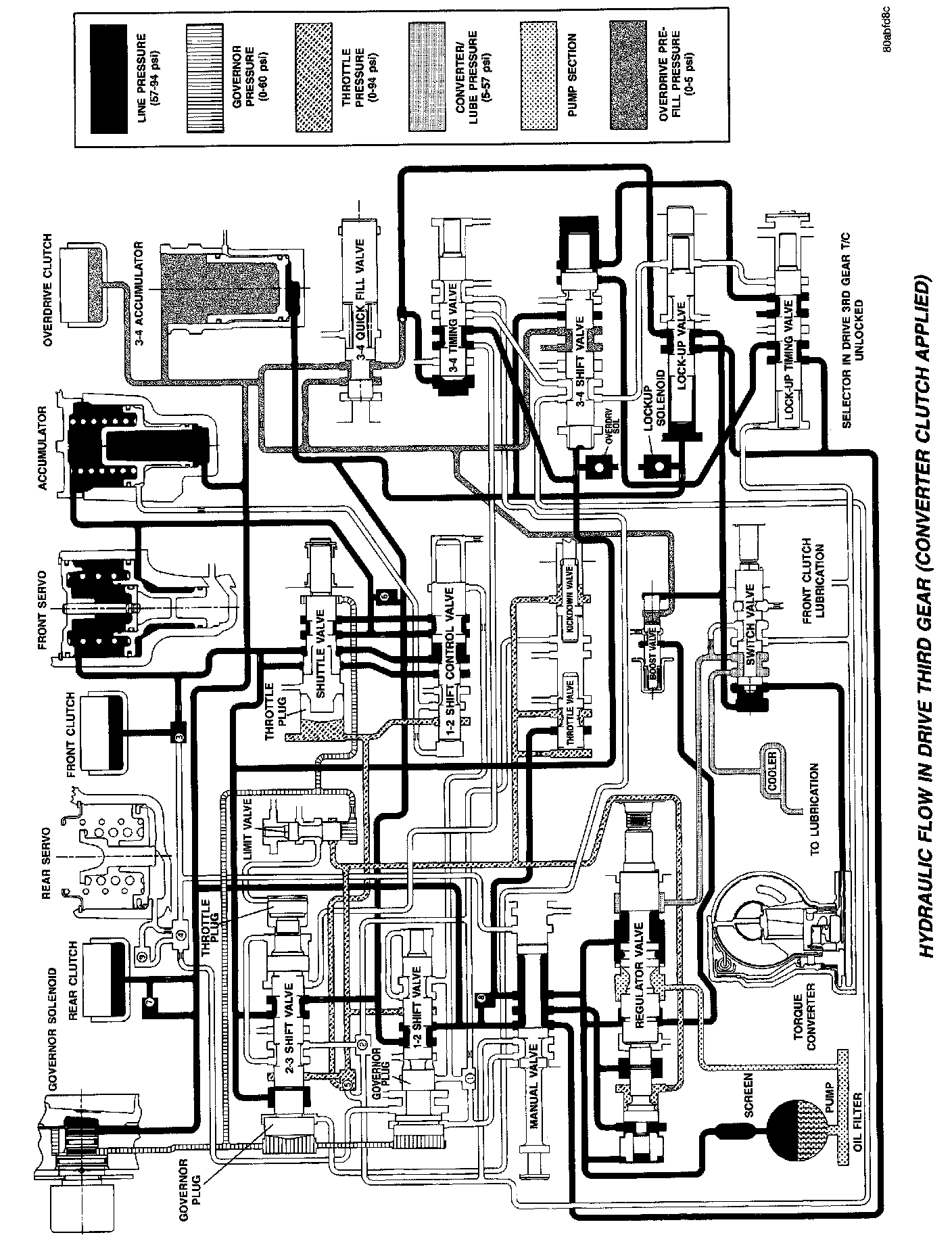

Hydraulic Flow In Drive Third Gear (Converter Clutch Applied):

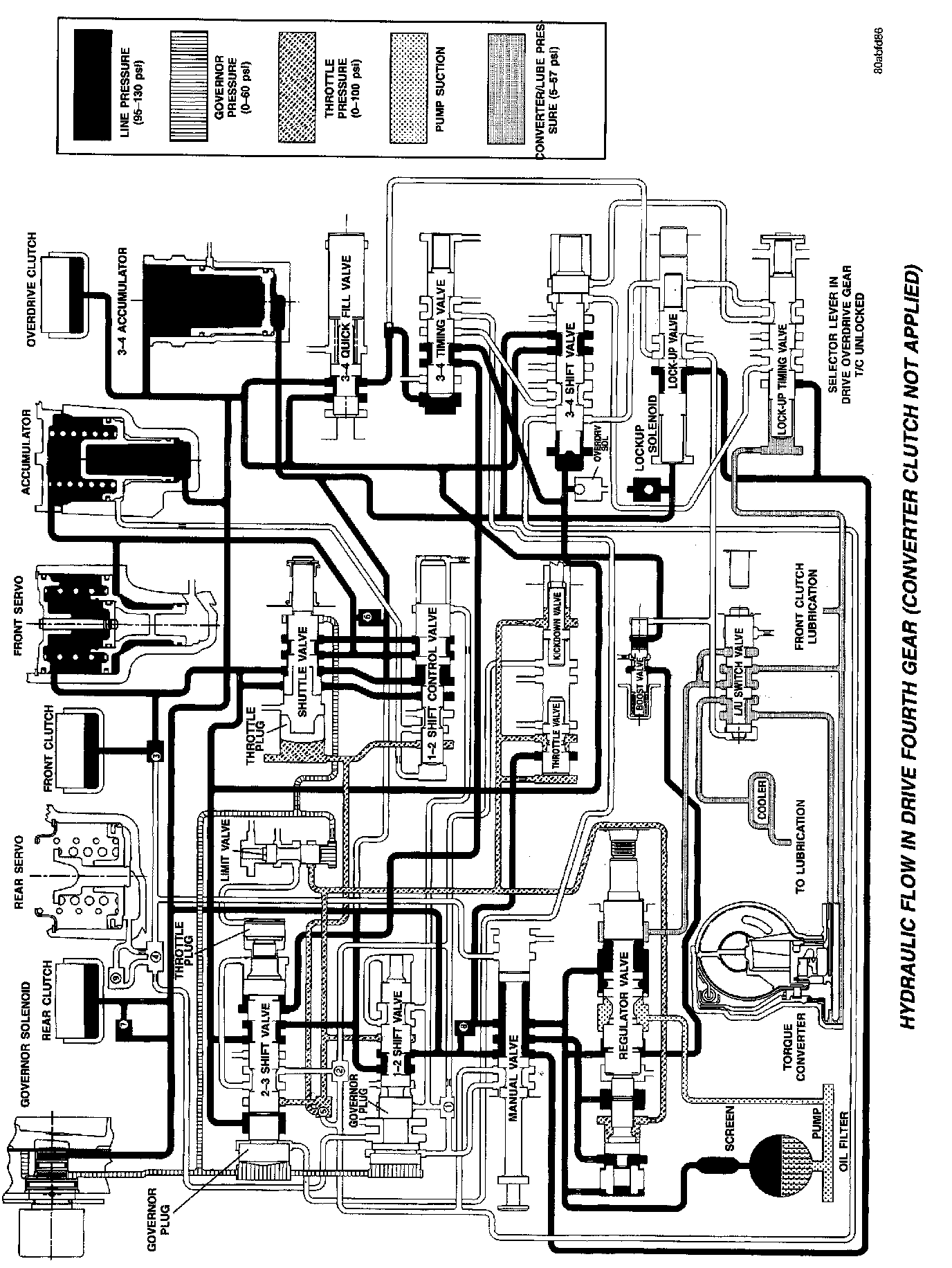

Hydraulic Flow In Drive Fourth Gear (Converter Clutch Not Applied):

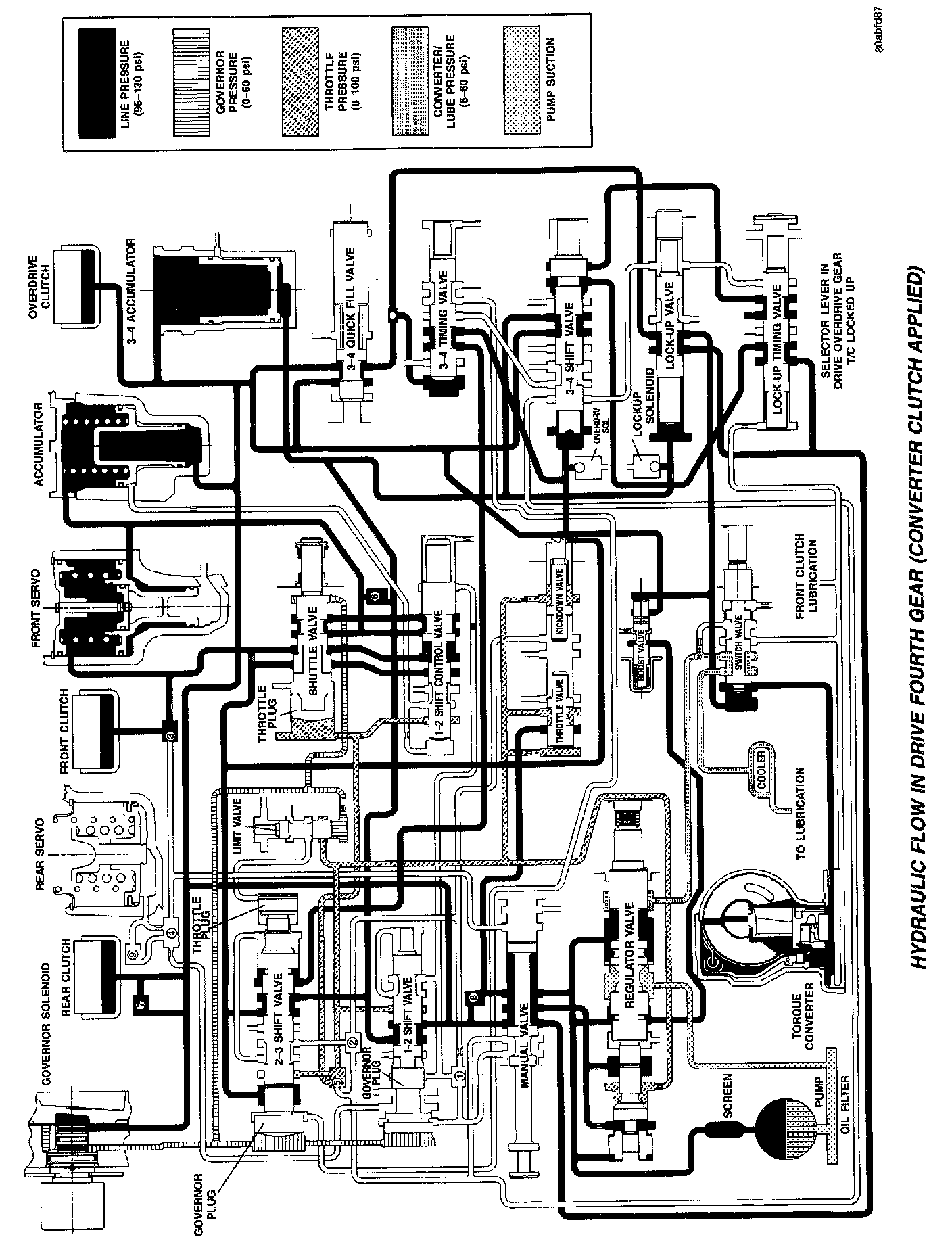

Hydraulic Flow In Drive Fourth Gear (Converter Clutch Applied):

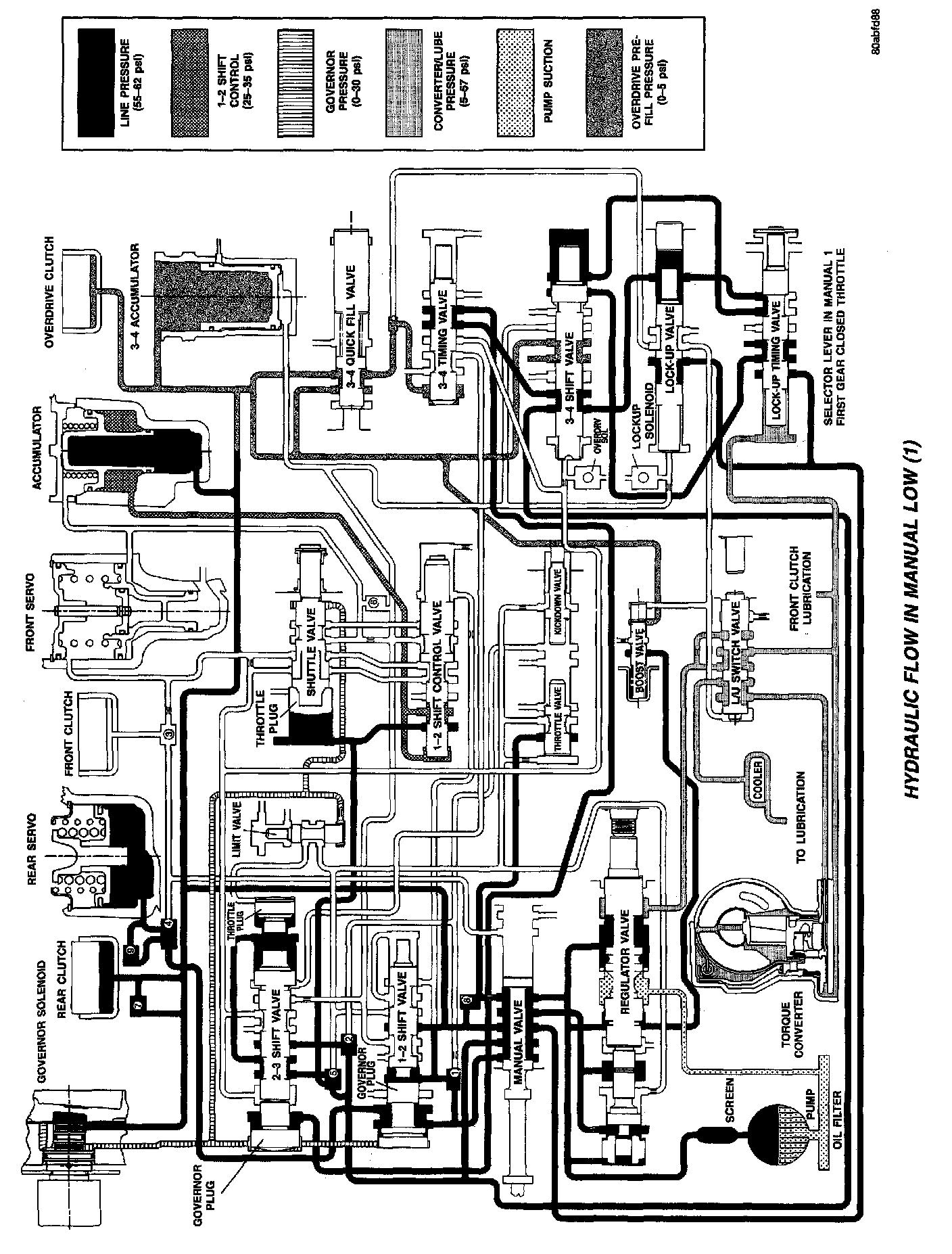

Hydraulic Flow In Manual Low (1):

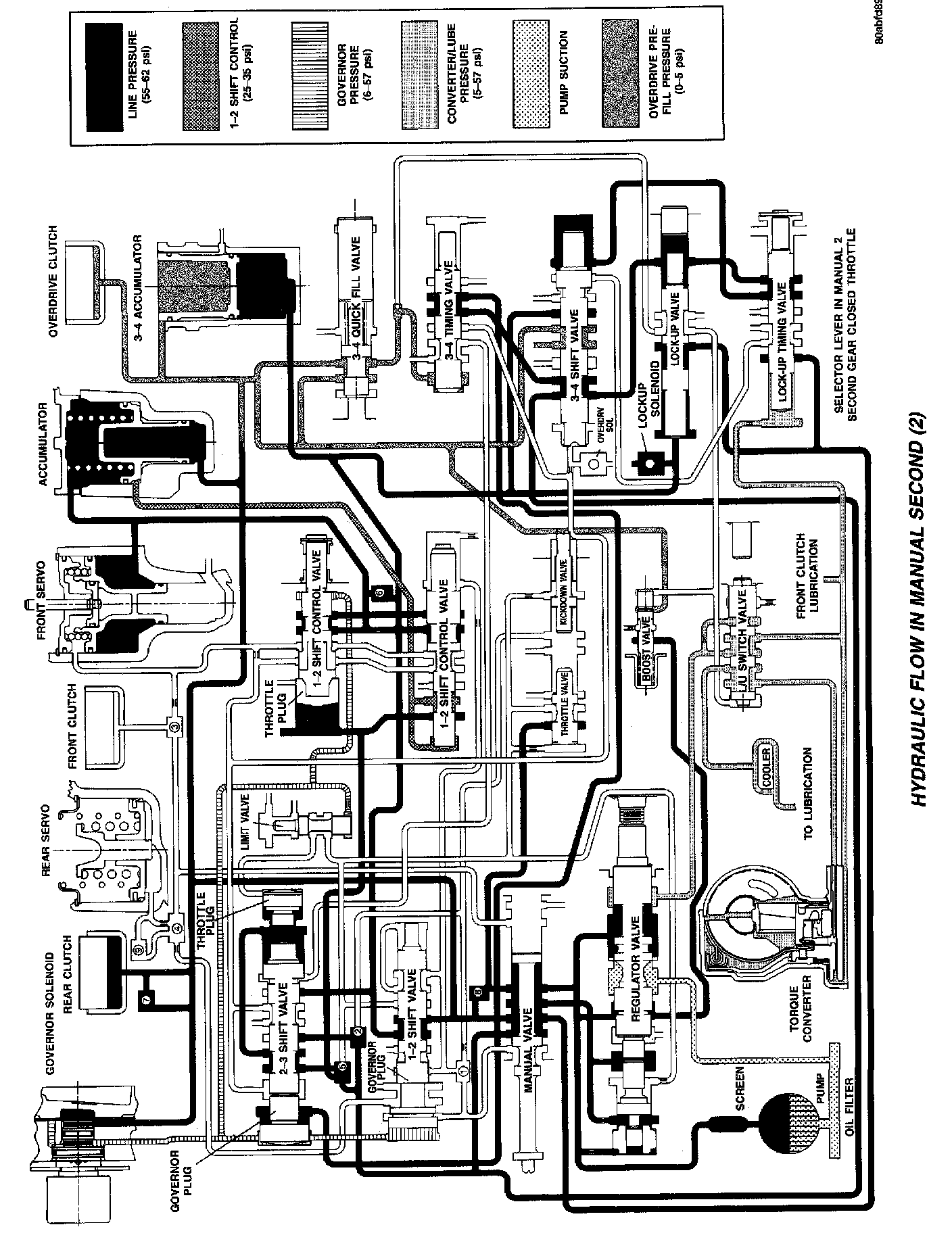

Hydraulic Flow In Manual Second (2):

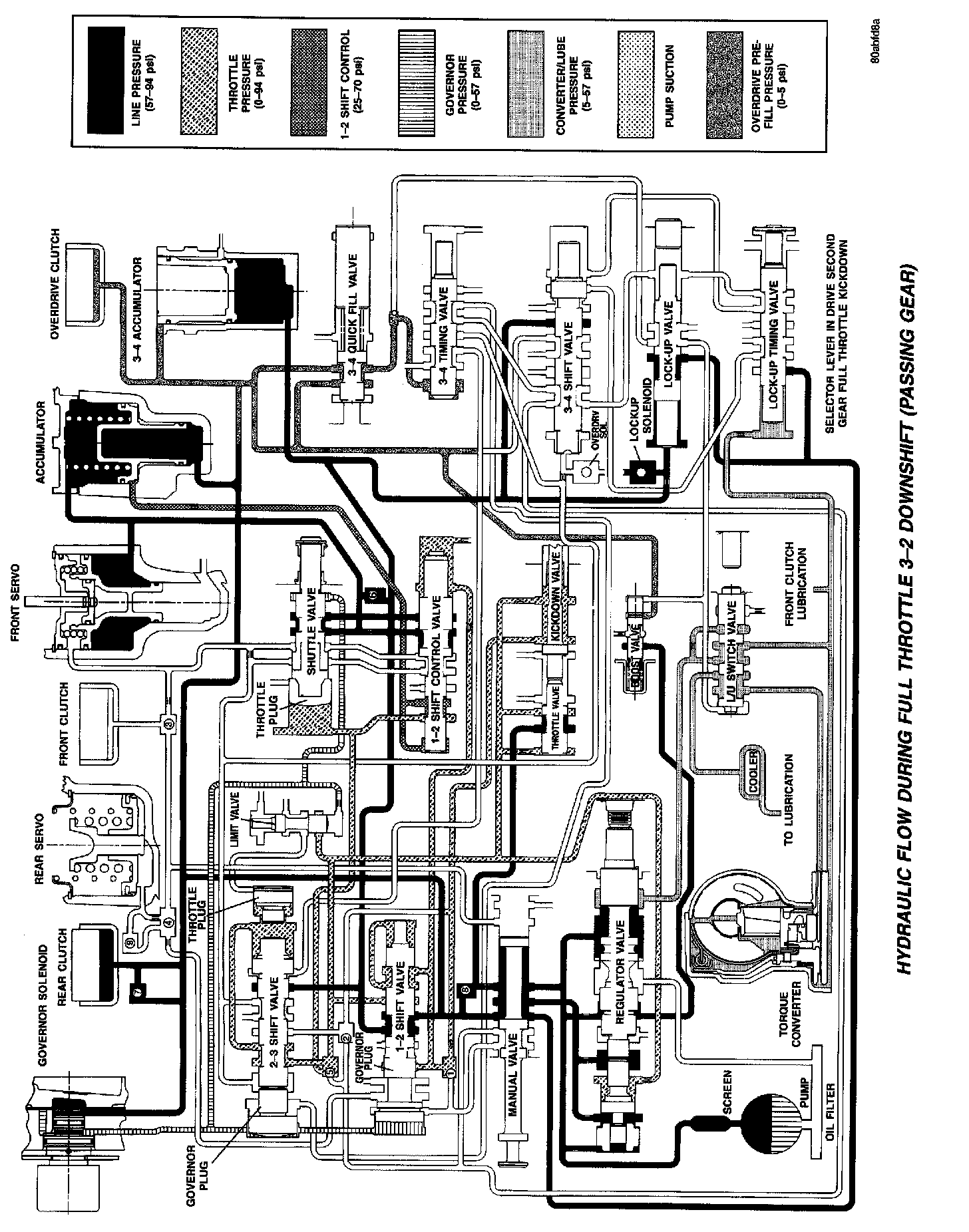

Hydraulic Flow During Full Throttle 3-2 Downshift (Passing Gear):

HYDRAULIC SCHEMATICS GENERAL
