Procedures

REMOVAL
1. Remove instrument panel top cover.

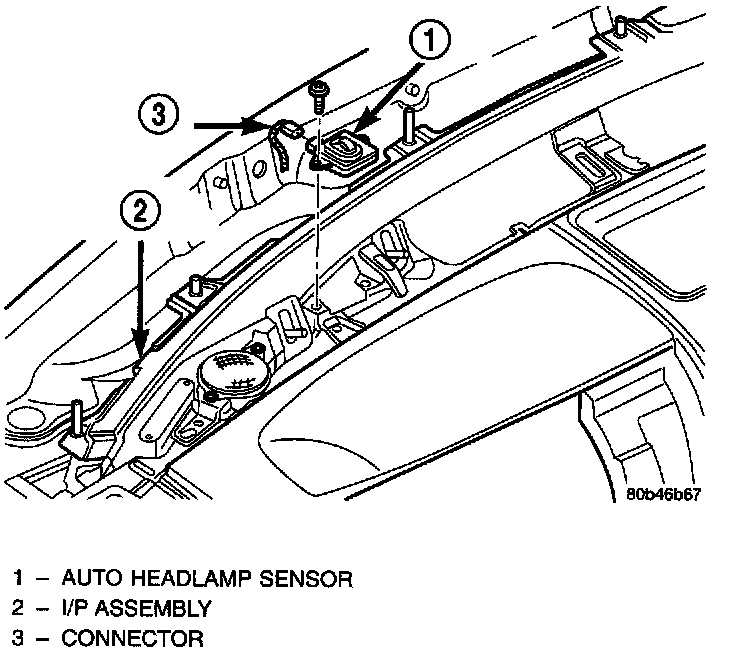

Auto Headlamp Sensor:

2. Remove screw attaching auto headlamp sensor to instrument panel.
3. Disengage harness connector from auto headlamp sensor.
4. Separate auto headlamp sensor from instrument panel.

INSTALLATION
1. Position auto headlamp sensor on instrument panel.
2. Engage harness connector to auto headlamp sensor.
3. Install screw attaching auto headlamp sensor to instrument panel.
4. Install instrument panel top cover.
