Rear

REMOVAL
1. Raise and support vehicle.
2. Remove rear wheel and tire assembly.
3. Drain small amount of fluid from master cylinder brake reservoir with a clean suction gun.

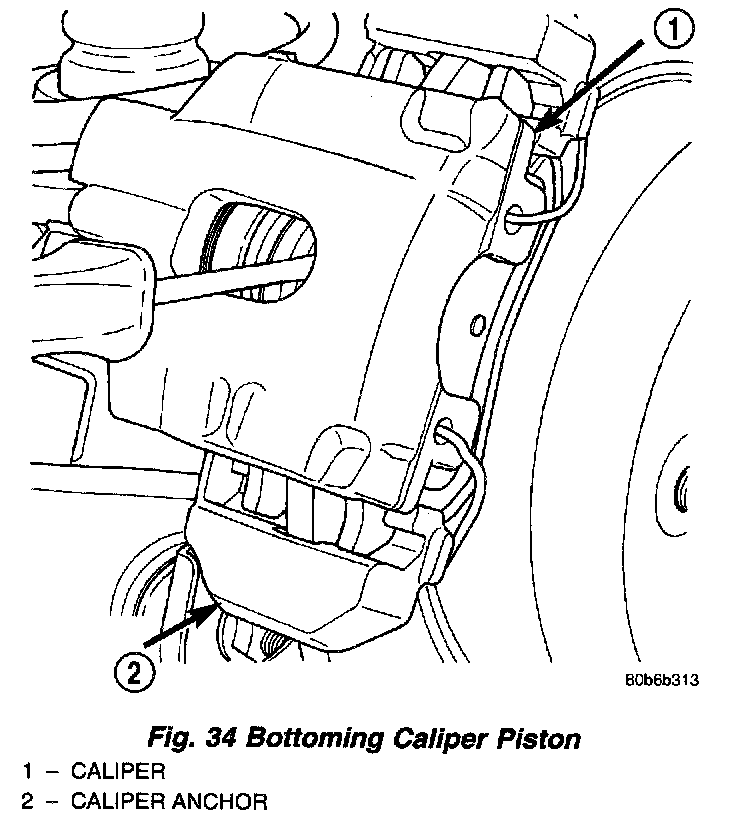

4. Bottom caliper pistons into the caliper by prying the caliper over.

Caliper Support Spring:

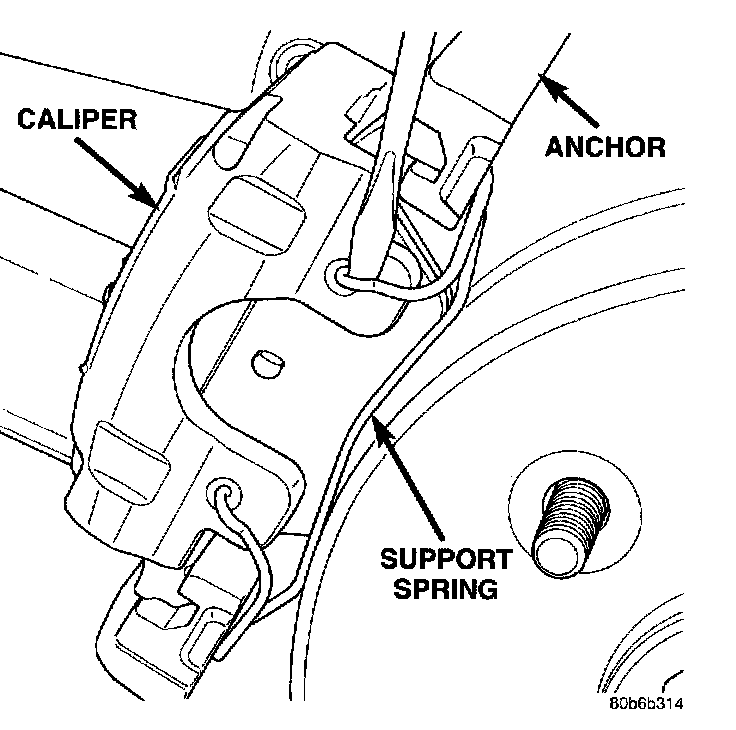

5. Remove the caliper support spring by prying the spring out of the caliper.

Caliper Slide Pins:

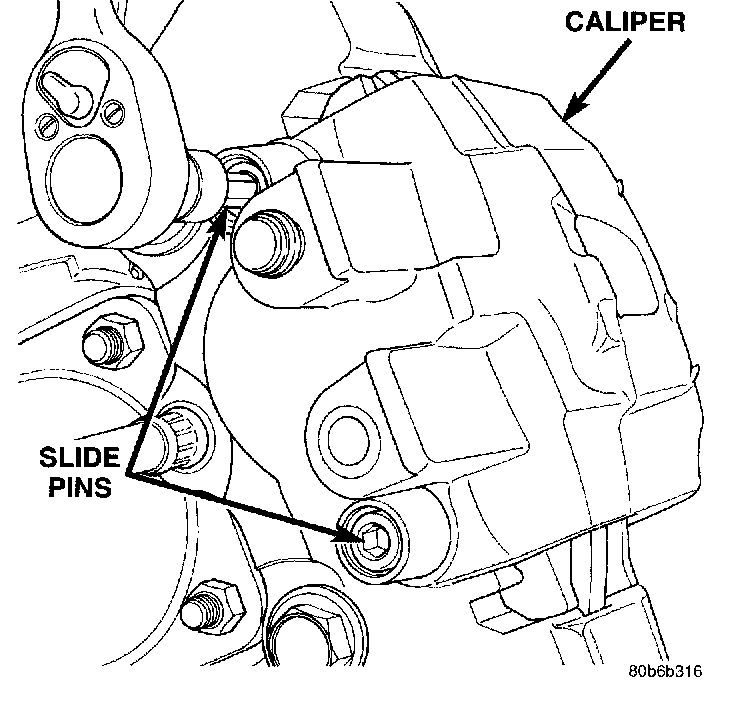

6. Remove the caliper slide pin bushing caps and remove the slide pins.
7. Remove caliper from the anchor.
8. Secure caliper to nearby suspension part with wire. Do not allow brake hose to support caliper weight.

Inboard Brake Shoe:

9. Remove the inboard brake shoe from the caliper.

Outboard Brake Shoe:

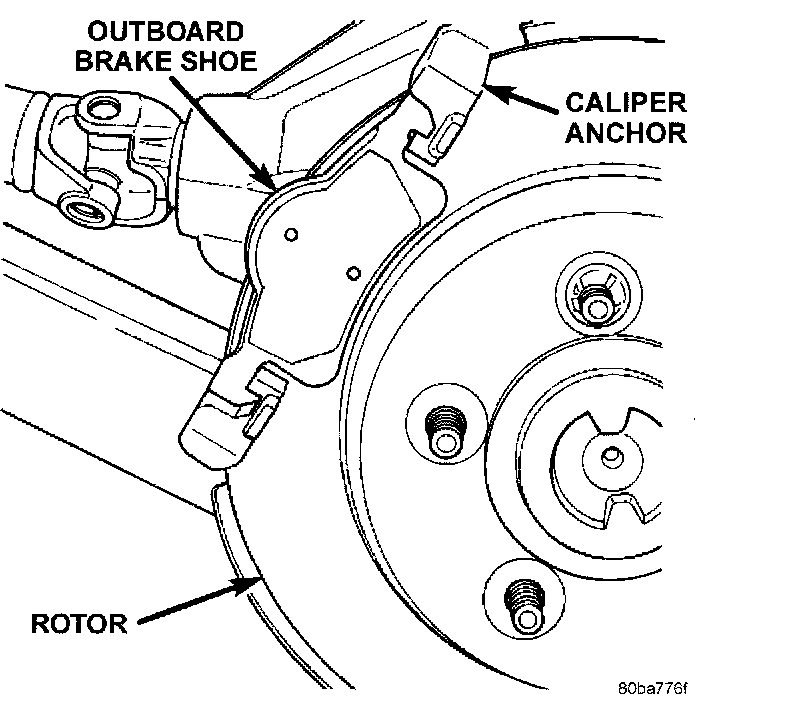

10. Remove outboard brake shoe from the caliper anchor.

INSTALLATION
1. Install the inboard brake shoe onto the caliper.
2. Install the outboard brake shoe onto the caliper anchor.
3. Lubricate the slide pins and slide pin bushings with Dow Corning(R) grease G807 or the grease provided with the brake shoes.
4. Install caliper on the anchor.
5. Install the caliper slide pin and tighten to 29 - 41 Nm (21 - 30 ft. lbs.).
6. Install the caliper slide pin bushing caps.
7. Install the caliper support spring in the top end of the caliper and under the anchor. Then install other end into the lower caliper hole. Hold the spring into the caliper hole with your thumb while prying the end of the spring out and down under the anchor with a screw drive.
8. Install wheel and tire assembly.
9. Remove support and lower vehicle.
10. Pump brake pedal until caliper piston and brake shoes are seated and a firm brake pedal is obtained.
11. Fill brake fluid level if necessary.
